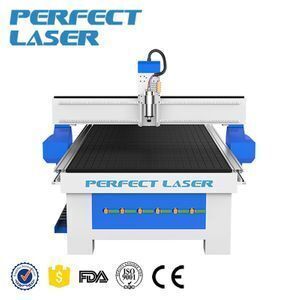

2.2KW CNC glass engraving machine with polishing machine PEM-1325

Product details
Software:Type3;Payment Terms:L/C,T/T,Western Union,Alibaba Escrow/PaypAL;
Place of Origin:Hubei China;Packaging Detail:exporting standard wooden case;
Port:shanghai or shenzhen port;Warranty:2 years;
Control system:NCstudio/DSP;Production Capacity:Other;
Work Table:Aluminum Alloy;Working area:1300*2500mm;
Brand Name:perfect laser;Spindle power:1.5kw,2kw,3kw,4.5kw;
Driving Motor:step motor or servo motor;Power(W):40W;
Tansmission system:Rod Tansmission;Supply Ability:5000 Set/Sets per Year;
After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service;



1.5kw/2kw/3kw/4.5kw  Spindle Power CNC  glass engraving machine

Applicable Fields:

Our CNC Glass Engraving Machine  is widely applied in engraving and cutting on all kinds of metal and nonmetal materials, such as wood/MDF, PVC plastic, plexiglass, acrylic, organic glass, marble, granite, aluminium, copper, steel and many other materials.

Our CNC Glass Engraving Machine is made from pure Aluminum or pure iron, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the machine. It is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics. It covers main sizes of marks and labels in the market. It can cut through Plexiglass with thickness of 20mm one time without trouble and can be applied to large-scale relief, too. It is doubtlessly a perfect production in the range of advertising engraving.



Product Features:

3D CNC Router lands the market with efficient and convenient STUDIO-Pro controlling system. It solves the problems for operating engineers that the processing is troublesome and complex. The complex working procedure such as preparing profiling work piece can be completed by computer 3D Hypothesize. It can ensure the quantity, quality and process easily in one time. The users dont need to worry about the time. With its help, they can complete their tasks easily and unmistakably.



Technical Data:

Power stroke of X,Y,Z axis

1200×1500mm

Size of working table

1450×1650mm

Power of main axle

1.5KW

Running location precision of X,Y,Z axis

+/-0.03mm

Repeating location precision of X,Y,Z axis

+/-0.01mm

Power stroke of Z axis

100mm

Working style

Stepping motor

Spindle speed of frequency conversion main axis

6000-24000rpm/min

Working voltage

AC220V/50HZ

Engraving order

G Code.uoommg

Optional main axis and Cartridge

φ3.175.φ6

XY Running sensitivity

0.02mm





Machine CNC Series:



 Main Components:

Samples:





Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –China Perfect Laser



1. The cutting depth on materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)

2. The working area you demand? (max dimension of material, width*length, 300*300 mm, 900*600 mm, 1200*1200 mm,1300*2500mm...)
