PERFECT LASER-Low cost photovoltaic cell production line solar cell thin-film solar cell cutting machine 350mm 20w

Product details
Laser Source Brand:RAYCUS;Power:20w 50w;
Scribing line width:50um;Workbench wide:200*200mm;
Key Selling Points:Easy to Operate;Applicable Industries:Manufacturing Plant;
Model:PE-20W/50W;Condition:New;
Control Software:Laser Scriber;Cutting material:monocrystalline silicon, polysilicon, amorphous silicon solar cell;
Payment Terms:L/C,Western Union,T/T,MoneyGram,Paypal, Escrow;Marketing Type:Hot Product;
Port:Shanghai,shenzhen,wuhan;Weight (KG):100 KG;
Supply Ability:5000 Units per Year Silicon Wafer Scribing Cutting;Guiderail Brand:HIWIN;
Application:Laser Scribing;CNC or Not:Yes;
Scribing speed:240mm/s;Warranty:1 Year;
Showroom Location:None;wavalength:1064nm;
Brand Name:Perfect laser;Warranty of core components:1 Year;
Packaging Detail:Sea-Worthy Packing or Air-Worthy Packing for Silicon Wafer Scribing Cutting;Laser Type:Fiber Laser;
Core Components:LASER SOURCE;Cooling Mode:Air Cooling;
Graphic Format Supported:AI,PLT,DXF,Dwg,DXP;Video outgoing-inspection:Provided;
Applicable Material:Solar cell wafer;Machinery Test Report:Provided;
Product name:Silicon Wafer Scribing Cutting;Place of Origin:China;
Brand:Perfect Laser;
Product Description

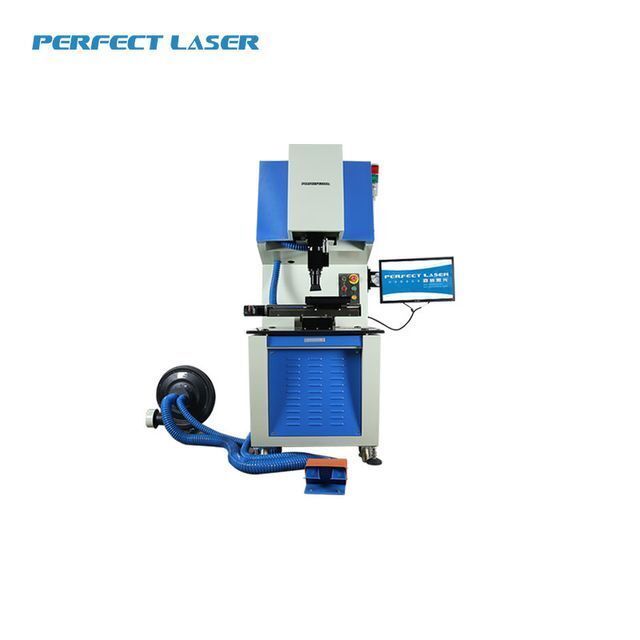

Vacuum Table 20W Fiber Laser Solar Cell Silicon Wafer Scribing Cutting Broken Machine

(Model:PE-20W/50W )
Samples
Detailed Images

This Fiber Laser Scribing Machine is widely used in solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).

Technical Data
Model specification
PE-20W/50W Fiber Laser Scribing Machine
Laser wavelength
1064nm
Laser power
20W or 50W
Scribing line width
50um
Scribing speed
240mm/s
Scribing precision
±10um
Workbench wide
200×200mm
Temperature control precision
0.5℃
Working power supply
220V/50Hhz/1.5KVA
Workbench
Cell automatic adsorption, dust removal
Cooling way
High precision and constant temperature circulating water cooling professional integration
Packing And Shipping
Certifications

For certificate, We have
1. CE certificate, which is needed in exporting to European
2. TUV certificate,
3. Certificate for high-tech enterprise which is not easy to authorised by governemnt in our city
4. Patents---we have got 8 patents in this industries.
5. Other certificate of honor from govenments.
All other certificates if you need in importing, we can also supply according to you.

Company Introduction

Perfect Laser is a world famous manufacturer of industrial Fiber Laser Scribing Machine. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.

We have attended lots of internal and overseas exhibition, such as India exhibition, Shanghai Exhibition, Guangzhou exhibition, Germany exhibition etc.

Every year, lots of global customers has visited our factory and looking for collaboration with us, such as USA, UK, Germany, poland, Italy, Vietnam.. We all have business partners!
