HY-WDS2E Low Cost Professional Ultrasonic Anemometer For Wind monitoring digital anemometer

Product details
Type:Ultrasonic anemometer;Payment Terms:T/T,Paypal;
Baud Rate:4800-19200;Warranty:2 years;
Threshold:0.01m/s;Protocol:MODBUS / NMEA-0183/ASCII;
Brand Name:HongYuv;Accuracy:3%;
Model Number:HY-WDS2E;Housing:ASA shell;
Supply Ability:100000 Piece/Pieces per Year;Packaging Detail:Carton Box Packing;
Wind Speed Range:0 - 60m/s;Startup time:< 1 seconds;
Serial outputs:RS232,RS485,SDI-12;Place of Origin:Sichuan China;
Weight:0.38kg;

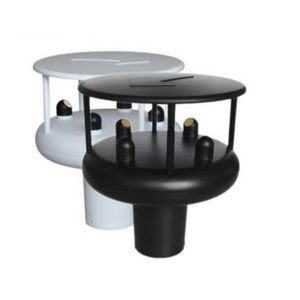

WDS2E Anemometer

Brief Introduction

HY-WDS2E Ultrasonic 2D Anemometer is a compact ultrasonic wind speed and wind direction sensor. It is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction. Using ASA shell, Weight is lighter and Structure is robust. Build-in own intelligent heating module, It can normally work under the cold and freezing weather.

    Typical Applications

  • Traffic control
  • Meteorological weather station
  • Oil drilling platform
  • Marine application
  • Industrial automation
  • Wind power plant

    Key Features

  • No moving or wearing parts
  • Maintenance free
  • Rugged and reliable
  • High precision and accuracy
  • Optional compass module
  • Optional GPS module

Technical Parameters

ParametersMeasure RangeAccuracyResolution
Wind Speed0-60m/s±2%0.1m/s(0.2 knots)
Wind Direction0-359°±3°
  Threshold of wind speed: 0.1m/s
Output rate1 data per second
Power supply7-30VDC  10mA@12VDC
Start up time< 2 seconds
Protection GradeIP65
Operating Temp.-40℃ to +70℃
Storage Temp.-50℃ to +80℃
Output optionsRS232,RS485,SDI-12,4-20mA
Color optionsWhite-default or Black
Optional protocolMODBUS-RTU,NEMA0183,Active output,SDI-12
DimensionΦ144×165mm
Material of bodyASA  0.36 kg
Warranty24 months; Mean Time Before Failure: 10 years
CertificationCE



Site Photos

Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.



Roadside weather station



Tunnel environment monitoring
