HY-WDC2E Mini Low Price Ultrasonic Anemometer weather station small wind speed direction sensor RS485 output
-
Supplier: Hongyuv Technology Co., Ltd. -
Region: Sichuan, China -
Contact: Mr Liang Kuang -
Price: $100.00 /piece -
Min. Order: 1 piece
| Packaging Detail: | Carton Box Packing; | Operating Humidity: | 0 - 100%; |
| Wind Direction Range: | 0 - 359°; | Payment Terms: | T/T,Paypal or credit card online; |
| Port: | Chengdu; | Wind Speed Range: | 0 - 40m/s; |
| Model Number: | HY-WDC2E; | Type: | ultrasonic anemometer; |
| Baud Rate: | 4800 - 19200; | Speed Resolution: | 0.1m/s; |
| Direction Resolution: | 1°; | Operating Temperature: | -20℃ - +50℃; |
| Protection Grade: | IP65; | Brand Name: | HongYuv; |
| Place of Origin: | Sichuan China; | Supply Ability: | 100000 Unit/Units per Year; |
Related Products
 |  |  |  |
| Weather Station | Ultrasonic Anemometer | Weather Station | Visibility Sensor |
Attention

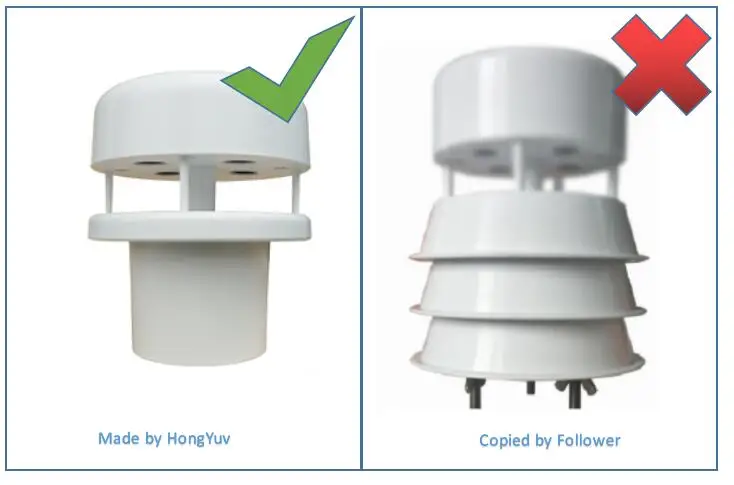

The counterfeit of HY-WDC2E recently showed up on the market, it is sold at lower price and giving our clients illusion that it's HY-WDC2E, actually, it's NOT. Neither is it accurate as our anemometer, nor is it stable as HY-WDC2E

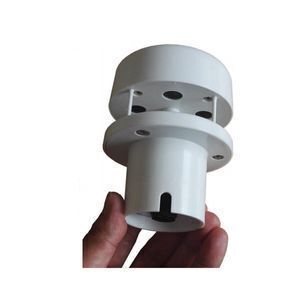

Introduction HY-WDC2E Ultrasonic Anemometer is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction based on principle of TOF(time of flight) of ultrasonic sound wave. Low power chip make its power consumption low to 0.2W. By using ABS shell allows a lighter weight and robust structure.
Key Features Low to 0.1W consumption No moving or wearing parts Anti-corrosion No inertia problem Sensitive and prompt response Easy installation No need to re-calibrate No dead band 0-359° Technical Specification |
|
Range | Accuracy | Resolution | |
Wind Speed | 0 - 40m/s | ±5% | 0.1m/s |
Wind Direction | 0 - 359° | ±3 ° | 1° |
Digital Output | RS485,RS232,SDI-12 | ||
Analog Output | 4-20mA(optional) | ||
Baud Rate | 4800 - 19200 bps | ||
Communication Protocol | ModBus-RTU,NMEA-0183,SDI-12 | ||
Protection Grade | IP65 | ||
Operating Temperature | -40℃ - +60℃ | ||
Storage Temperature | -50℃ - +80℃ | ||
Working Humidity | 0 - 100% | ||
Power Supply | VDC: 5-30V | ||
Power consumption | 18mA @5V | ||
Dimension/Weight | ABS: Φ82×108mm ,0.28kg Aluminum alloy: Φ82×125mm ,0.38kg | ||
Material | ABS engineering plastic or aluminium alloy(aluminium cost extra $50) | ||
Specifications may be subject to change without prior notice.

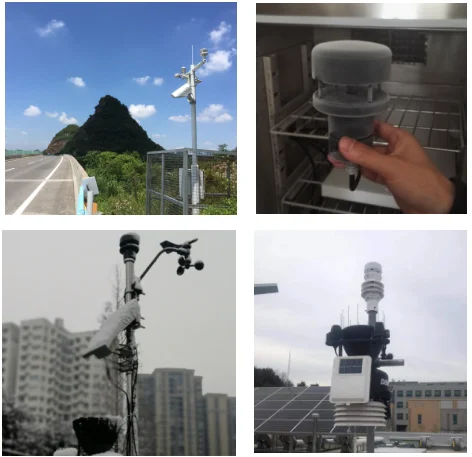

Typical Applications
|  |

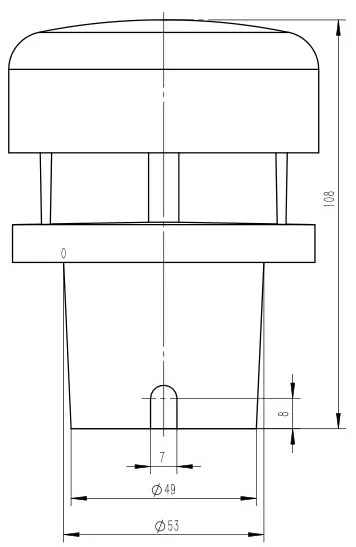

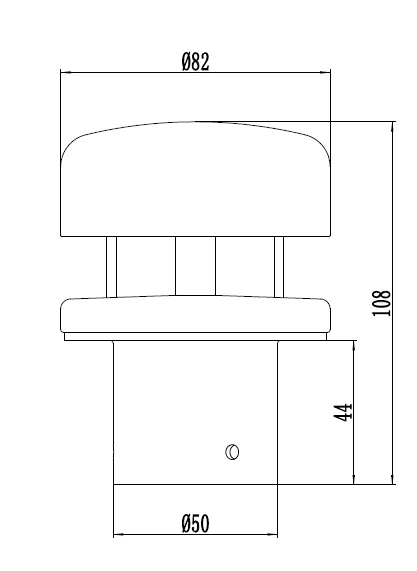

| Dimension | ||
| Metal Body | ABS Body | |
 |  |
Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.
Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.
Roadside weather station
Tunnel environment monitoring
Hongyuv Technology Co.,Ltd is located in Chengdu Hi-tech West Zone. As a high-tech company, We takes the development of new products as its main business direction. All of our products are self-developed and fully owned independent intellectual property rights of our sensors. Our current products are mainly divided into three categories: meteorological sensors, traffic environment detection sensors and photoelectric detection sensor for industrial application.
Hongyuv has a professional R&D team with over 10 years development experience involve in photoelectric detection, ultrasonic technology, video image analysis, etc. Therefore, we took the lead in the development of the transmissometer, visibility meter, ultrasonic wind speed and wind direction detector , Egg embryo classification infrared detector.
Price, Package, Service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 5-8 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. One year free repair for quality warranty
-
