HY-WDS6E high accuracy Professional Ultrasonic Automatic Weather Station for farming green house anemometer sensor

Product details
Certificate:CE;Color:White;
Air pressure:150 - 1100hPa;Brand Name:HongYuv;
Payment Terms:T/T,Western Union;Power Supply:DC:7-24V;
Packaging Detail:Carton Box Packing;Wind Speed Range:0 - 60m/s;
Supply Ability:1000 Piece/Pieces per Month;Wind Direction Range:0 - 359°;
Brand:HongYuv;Model Number:HY-WDS6E;
Port:ShenZhen;Precipitation:0-200mm/hr;
Product Description

Overview

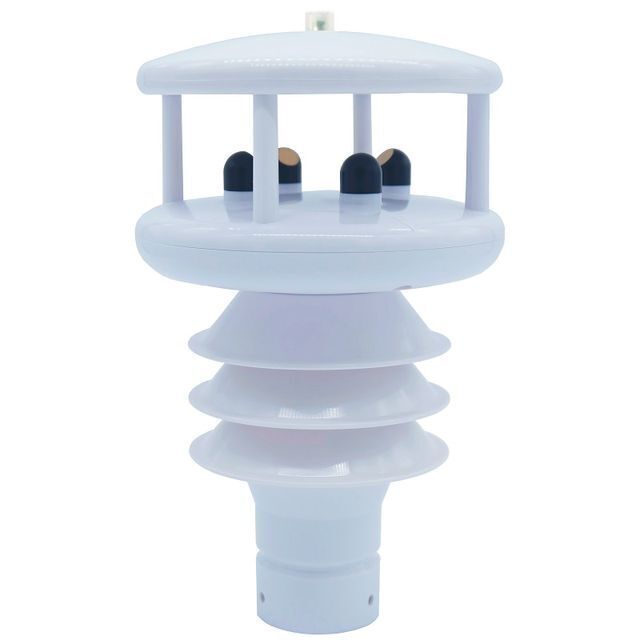

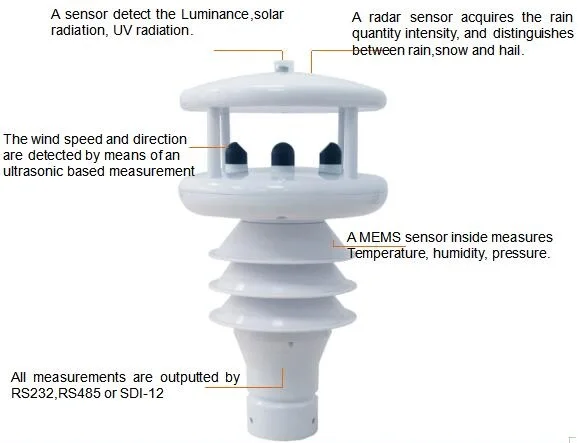

 HY-WDS6E Mini automatic weather station is a self-developed professional meteorological sensor for simultaneous measurement of multi-parameters: atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and precipitation.Air temperature, humidity, and pressure measurements are measured by standard industrial MEMS sensor positioned in radiation protection shield. It is characterized by high accuracy and fast response time. Measurement of wind speed and direction is working based on principle of ultrasonic travel time difference. Precipitation is detected by 24G radar, which can rapidly detect precipitation and its intensity. GPS global positioning module and electronic compass are optional to be installed in reserved room, with these two module, you can obtain longitude and velocity accurately, thereby, real and virtual wind speed & direction can be calculated out.

Features

  • Robust design, easy to install, 24 hours continuous monitoring
  • Without moving parts, whole system is free of maintenance
  • MODBUS communication protocol, standard RS485/RS232 output
  • Electronic compass, GPS or BeiDou global positioning module can be added
  • With internal heating device ensures normal operation in cold weather
  • Radar precipitation can accurately measure amount of precipitation and reflect beginning and ending of raining



Specification



Model

HY-WDS6E

Signal Output

RS232,RS485,SDI-12

Power Supply

DC:7-24V

Data Output

1 per second

Power Consumption

185mA@12V(without heater)

Material of Body

ABS+ Aluminum alloy

Communication Protocol

Modbus,NMEA-0183,SDI-12

Dimension

Ø144 * 248 mm



Principle

Range

Accuracy

Resolution

Air Temperature

MEMS sensor

-40℃ - +80℃

±0.2%

0.1℃

Air Humidity

MEMS sensor

0-100%

±2%

0.1

Air Pressure

MEMS sensor

150 - 1100hPa

±1 hPa

0.1hPa

 Wind Speed

Ultrasonic

0 - 60m/s

±3%

0.01

Wind Direction

Ultrasonic

0 -359°

<3°

Precipitation(Rain/Hail/Snow)  *

Radar

0-100mm/hr

±10%

0.01mm

Luminance(optional)  *

 Silicon

0-200000 or 157000 lux

±5%

1 Lux

Solar Radiation(optional)  *

 Silicon

0-2000 or 1630 W/m2

±5%

1 W/m2

UV  *

Silicon

(100-200K)μW/cm2

±10%

1μW/cm2

Sea level (optional)  *

MEMS sensor

-500 - 9000m

±5%

1m





































































Note: Standard HY-WDS6E don’t include items marked with”*”, those are optional parameters with extra cost.







Phontos on site

Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.





Site Photos

Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.



Roadside weather station



Tunnel environment monitoring



About us

Hongyuv Technologies Co.,Ltd is located in Chengdu Hi-tech West Zone. As a high-tech company, We takes the development of new products as its main business direction. All of our products are self-developed and fully owned independent intellectual property rights of our sensors. Our current products are mainly divided into three categories: meteorological sensors, traffic environment detection sensors and photoelectric detection sensor for industrial application.

Hongyuv has a professional R&D team with over 10 years development experience involve in photoelectric detection, ultrasonic technology, video image analysis, etc. Therefore, we took the lead in the development of the transmissometer, visibility meter, ultrasonic wind speed and wind direction detector , Egg embryo classification infrared detector.

Our Services



Price, Package, Service

1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time :  5-8 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. One year free repair for quality warranty
