Construction machinery 17m wheel type hydraulic mobile concrete placing boom for sale

Supplier: Qingdao Jiuhe Heavy Industry Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Ruth Song
Price: $29000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO, CE;	Single package size:	20X20X20 cm;
Hose length(m):	3;	Single gross weight:	68 KG;
Big arm length(m):	6.66;	small arm length(m):	4.61;
Showroom Location:	None;	UNIQUE SELLING POINT:	High operating efficiency;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Applicable Industries:	Construction works ,concrete placer;
Voltage:	380V;	Local Service Location:	Viet Nam,Philippines;
concrete pipe(mm):	125X6;	Big arm elevation(°):	0~70;
Brand Name:	JIUHE;	Warranty:	1 year;
Condition:	New;	Weight:	6200;
Mid arm elevation(°):	0~180;	Dimension(LWH):	11300X2640X2300;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Selling Units:	Single item;
Package Type:	Nude pack in container;	Power(W):	5.5KW;
Mid arm length(m):	5.73;	small arm elevation(°):	0~180;
Max.placing radius(m):	17;	Place of Origin:	Shandong China;

Product Description

Wheel type mobile Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity. This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.

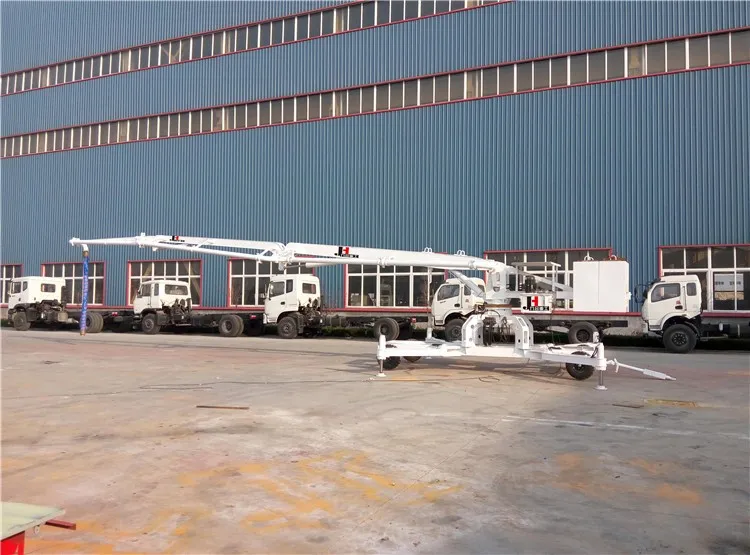

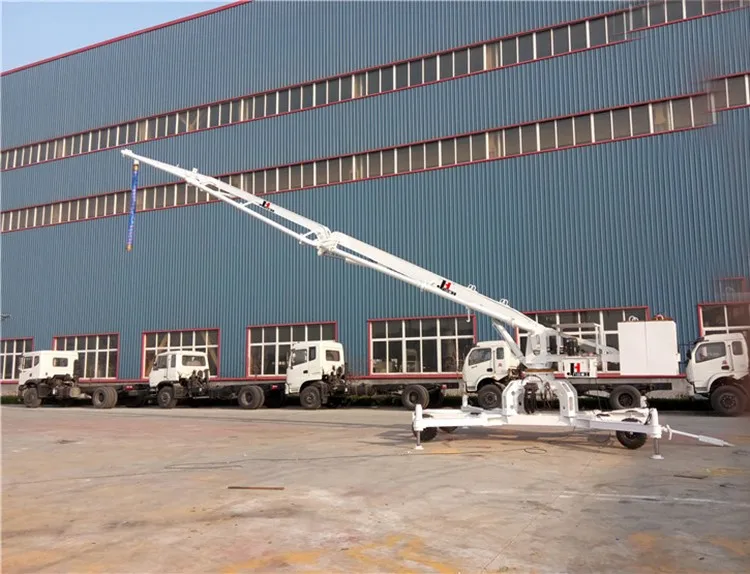

17m wheel type hydraulic mobile concrete placing boom
Item	HGD17
Max.placing radius(m)	17
Big arm length(m)	6.66
Big arm elevation(°)	0~70
Mid arm length(m)	5.73
Mid arm elevation(°)	0~180
Small arm length(m)	4.61
Small arm elevation(°)	0~180
Hose length(m)	3
concrete pipe(mm)	125X6
Tail rotary radius(m)	3.5
Total power(Kw)	5.5
System pressure(Mpa)	25
Rotary range(°)	0~360
Rotary speed(r/min)	0.3~0.8

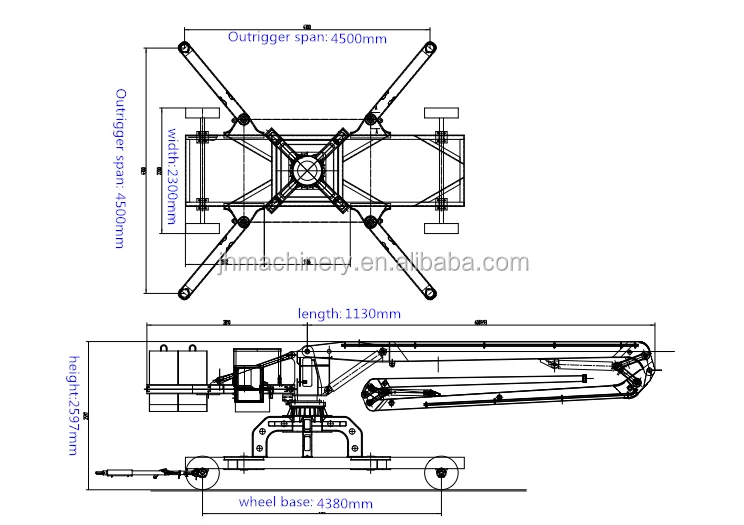

Supporing legs span(m)	4.5X4.5(Unfold situation)
Wheel base (m)	4.38
Dimension(m)	9.8X2.64X2.2
Bare Machine weight (kg)	6200
Balance weight (kg)	2X1100
control mode	Panel/Wireless remote control

Main Features

1.Easily achieve concrete pouring for wall,pipe, column and pile structures,great deal of Flxibility and mobility.

2.When not in use, the concrete placing boom can be hung away from the construction area, will not affect other processes,and facilitate maintenance.

3.Not be affected by the influence of construction size and shape,can adapt to a variety of floor construction and complicated work needs of construction site.
