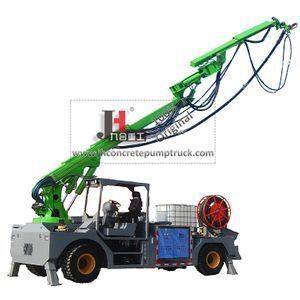

China Factory JIUHE brand 30 Cubic Meters Shotcrete Robot JHGHP30 wet concrete spray shotcrete machine for sale

Supplier: Qingdao Jiuhe Heavy Industry Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Ruth Song
Price: $190000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Supply Ability:	30 Set/Sets per Month;
spraying gun diameter:	50mm;	Power(W):	55kw;
Max Aggregate Size:	40;	Max. Conveying Distance:	height 16m;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Dimension(LWH):	780024803240;
UNIQUE SELLING POINT:	High operating efficiency;	Model:	JHGHP30;
Certification:	ISO CE BV TUV;	Local Service Location:	None;
Place of Origin:	Shandong China;	Applicable Industries:	Construction works ,spraying wet concrete;
Product name:	Wet Mix Shotcrete Machine;	Payment Terms:	L/C,D/P,T/T;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Port:	any port of China;
Brand Name:	JIUHE/JH;	Packaging Detail:	Nude package;
Warranty:	1 year;	Voltage:	380v;
Drive mode:	Electric Motor;	Capacity:	30m3/h;
Weight:	20000kg;	Application:	Spraying Concrete;
Hose Inner Diameter:	50 mm;	Keywords:	Shoecrete Machine;
After-sales Service Provided:	Engineers available to service machinery overseas;	Showroom Location:	None;
concrete outlet pressure:	7.5Mpa;	Type:	Shotcrete Equipment;

China Factory JIUHE brand 30 Cubic Meters Shotcrete Robot JHGHP30 wet concrete spray shotcrete machine for sale

Product Description

Shotcrete Machine Brief introduction

As a new generation JIUHE produced engineering chassis wet shotcrete machine, which is researched and developed after synthesizing wet shotcrete machine technology domestic and oversea, solving spraying deficiency that traditional small shotcrete machine cannot meet concrete spraying need in long and big tunnel, vastly improving the working environment for workers inside tunnel, increasing working efficiency, reducing concrete consumption, truly ensuring working quality, double power working system, lower carbon emission, Suiting environmental protection concept. JIUHE engineering chassis wet shotcrete machine is best choice for tunnel construction like water conservancy and hydropower, railway, highway and so on.

Our Advantage

Truck mounted wet shotcrete machine Advantages

1) Adopt thin air flow conveying type wet shotcrete machine

Good adaptation for concrete mixture, lower dosage for binding material and additives

2) Special boom structure

Adopt two stages boom structure with movable slewing support strut, suitable for benching tunnelling method, meet three benches annular digging leaving core, this kind spraying method without working blind angle.

3) Wireless remote control system, improve working environment.

4) World famous original parts and components

5) Motor and diesel double engine system, can change quickly as per need, well-adapted.

Product Overviews

Concrete Spraying MachineTechnical data

1.whole machine data
Model	JHSTC30
total length	7800mm
total width	2480mm
total height	3240mm
rated weight	20T
2. Boom & support legs data
spraying height	16m
big boom pitching angle	-30°~+60°
mid boom pitching angle (compare with big boom)	-120°~+30°
small boom rotation angle	-60°~+180°
Rear boom Stretch length	2000mm
turret rotation angle	-5°~+290°
3. pumping system data
driving mode	Motor
Motor rated power	75kw
Motor working voltage	380V
concrete delivery capacity	30m³/h
hydraulic system	Open
delivery pipe dia.	Φ125~φ80mm reducing
spray nozzle dia.	Φ50mm

Company Information

FAQ

1. Are you manufacturer and what is your Brand?

Yes, we are professional manufacturer on concrete machines, and our Brand is ‘JH’ and ‘jiuhe’

2. What is your main product?

Trailer concrete pumps/concrete mixer pump/truck concrete pump/truck concrete pump boom/Wet shotcrete machine/Concrete placing boom/concrete mixer truck/concrete mixing plant/Mortar plastering machine on wall and other construction machine.

3. What is your MOQ?

One Set is ok for your trail order

4. What is your price?

Please tell us the products model and quantity required, as well as your email, our sales responsible will share with you the best price.

5. What is the delivery time?

Most of the order will within 20days, sometimes depend on your quantity and our present products plan.

6. What is your payment term?

We can receive T/T, L/C, D/P, Western Union and so on.

7. How about your Warranty and after sale service?

Normally is about 12 months after leaving factory, but that can be negotiated based on our cooperation.

8. I am interested in your products, can you introduce them to me?

Please directly sent inquiry either leaving message or consulting online on website, and confirm us your correct email, so that our sales can show you more detailed information on products.

9. OEM or ODM is available?

Yes, we can produce with your logo.

10. Trade term and logistic ways you will adopt?

We normally adopt FOB, CFR, CIF, CIP, CAP, in INCOTERMS 2010 terms. And we adopt various Logistic ways such as container/Ro-Ro/bulk ship by sea, by road and by train.

Please Note!!! JIUHE is Professional Manufacturer for Concrete machine, Factory Direct Supply will let you feel free on AFTER SALE SERVICE.

JIUHE Other Products

Qingdao JIUHE Heavy Industry Machinery Co., Ltd is concrete machine manufactruer in china, Factory direct supply to ensure both quality machine and timely after sale service. main machine: trailer concrete pump, concrete line pump, concrete pump truck, concrete placing boom, wet concrete shotcrete machine, concrete mixer truck and so on, full range concrete machine to meet your various need, one-stop professional concrete machine service solution will let you satisfied with both our machine and our service. any questions on our company or machine, just feel free to Contact us!
