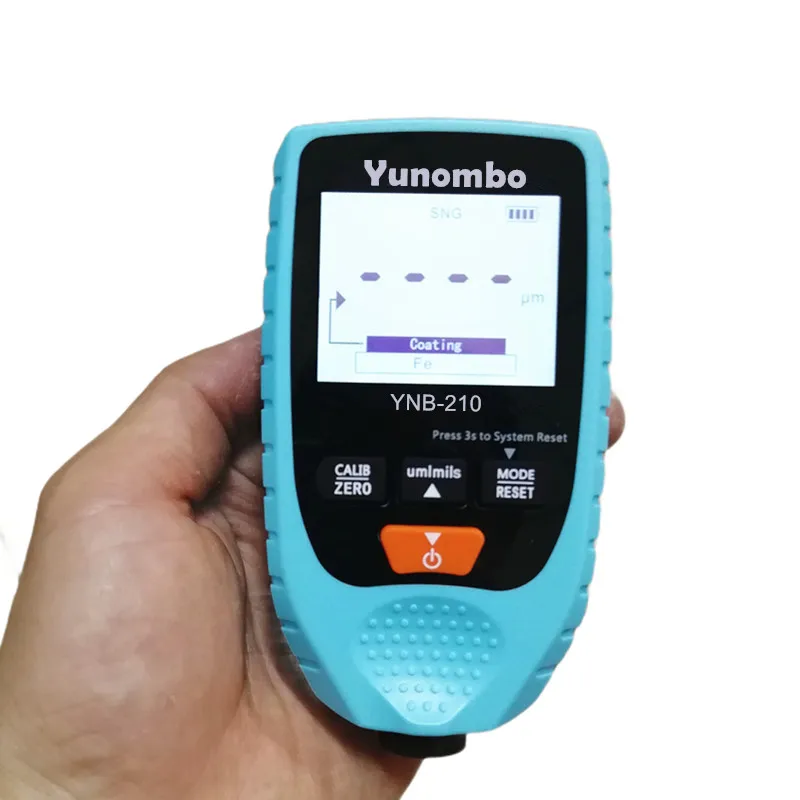

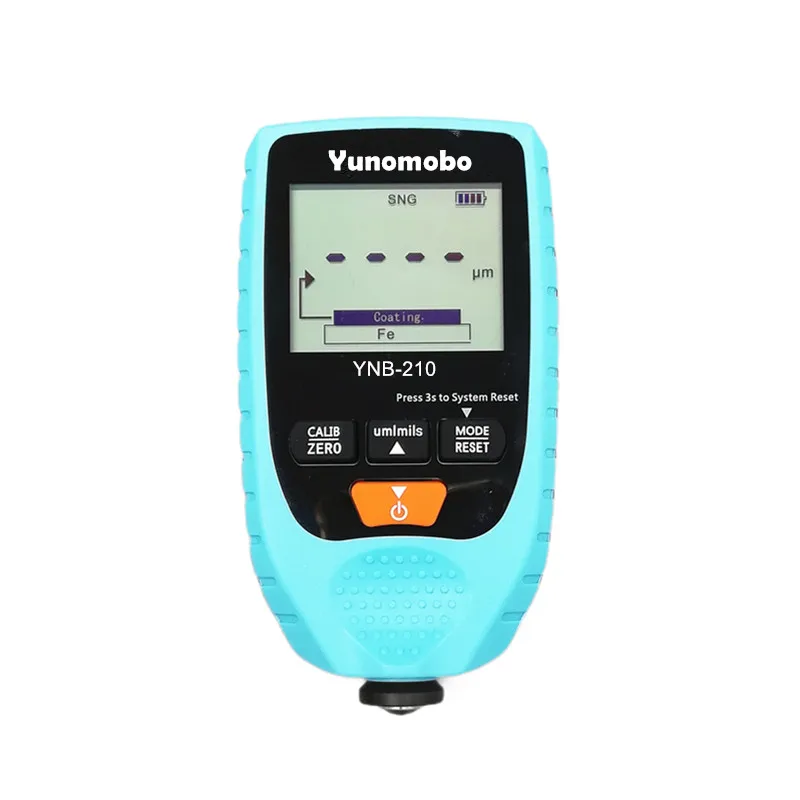

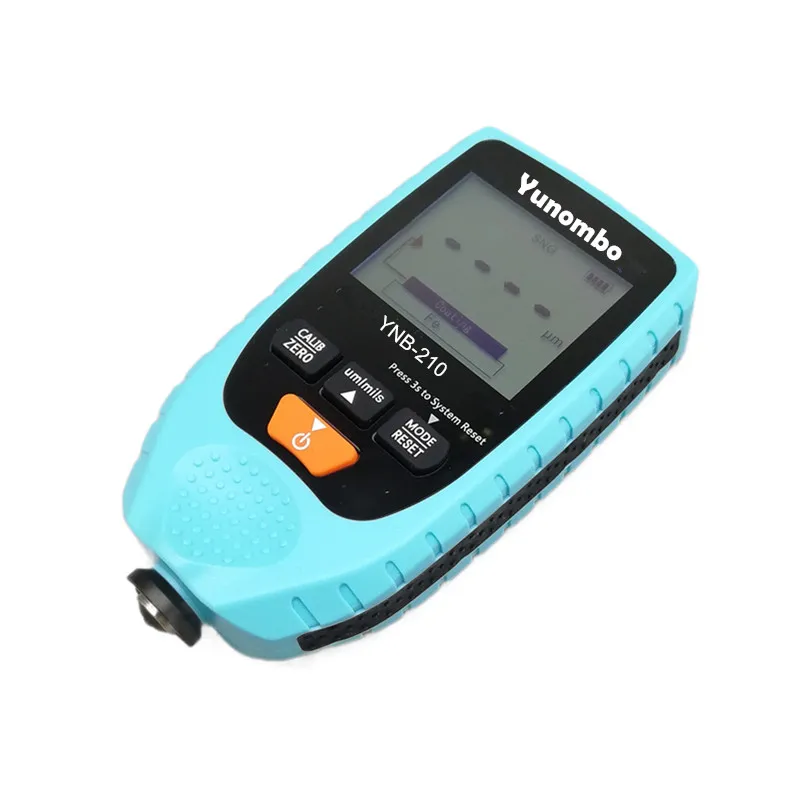

2019 New Release Yunombo YNB-210 Digital Auto Car Paint Thickness Meter Film Thickness Tester Coating Thickness Gauge

Supplier: Shenzhen Weichuangshixing Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Andrew Tang
Price: $46.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Selling Units:	Single item;	Single gross weight:	0.5 KG;
Brand Name:	Yunombo;	Minimum thickness of substrate:	0.5mm(0.02");

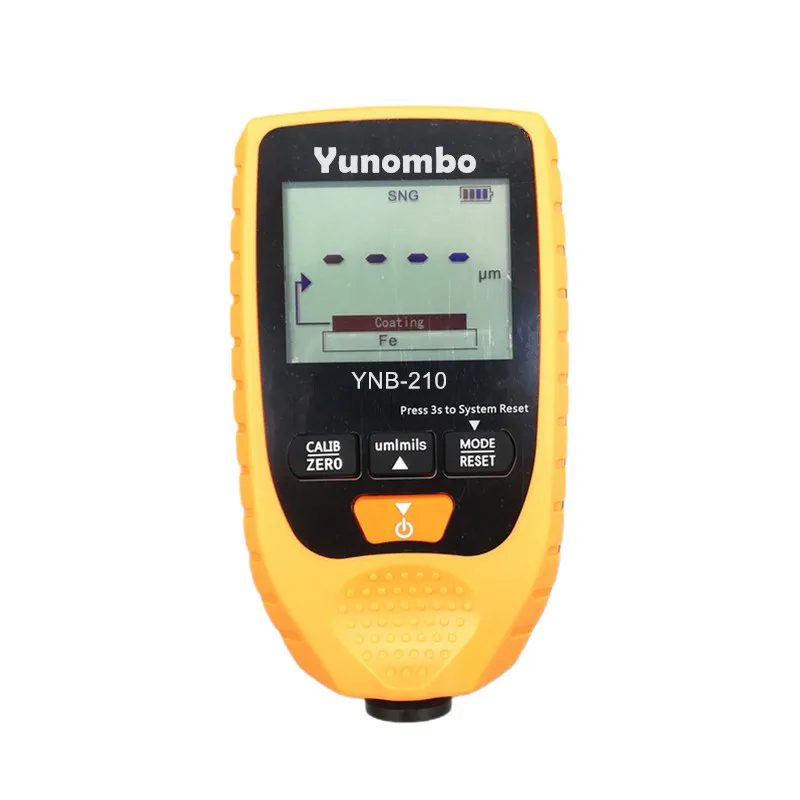

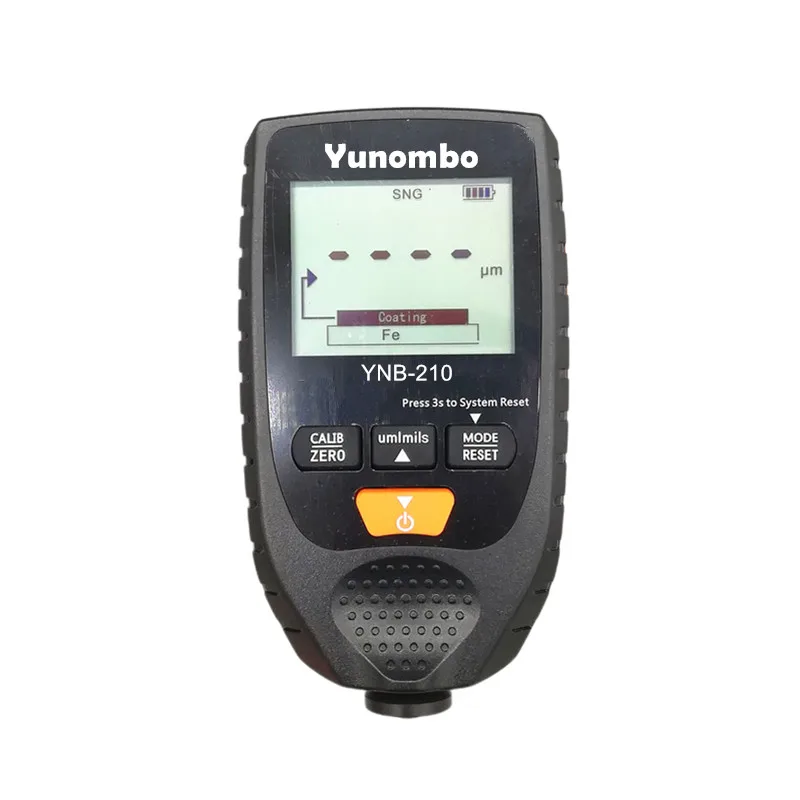

Resolution:	Resolution: 0.1um/0.01mil;	Color:	Blue/Black/Orange;
Measuring Range:	0-1500um/0-59.1mil;	Calibration:	ZERO Point/Muti-points;
Single package size:	22X12X8 cm;	Material:	ABS;
Package Preview:	https://sc01.alicdn.com/kf/HTB1J6YqbSWD3KVjSZSgq6ACxVXa3.jpg_640x640.jpg;	Model Number:	YNB-210;
Accuracy:	+-(3%+2um) /+-(3%+0.08mil);	Package Type:	Package box, 50pcs in one carton;

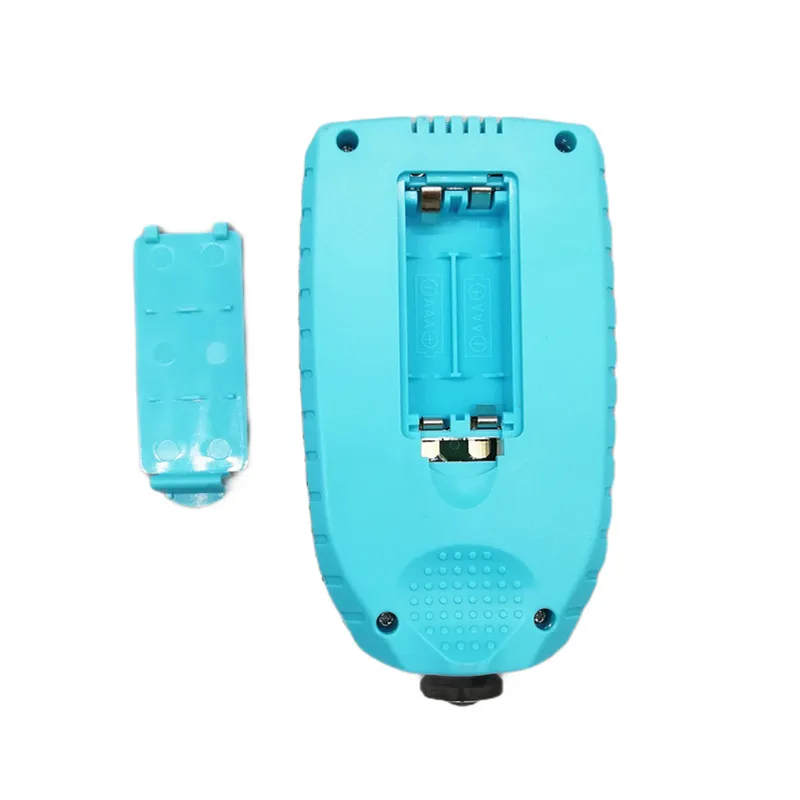

With backlight or not:	Yes;	Battery:	2pcs 1.5V AAA batteries;
Place of Origin:	Guangdong China;	Units:	um/mil;

2019 New Release Yunombo YNB-210 Digital Auto Car Paint Thickness Meter Film Thickness Tester Coating Thickness Gauge

Introduction:

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

Application:
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

Operating Principle:
The gauge adopts the principle of electromagnetic induction and eddy current effect. It has F probe and N probe.
F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.
N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.

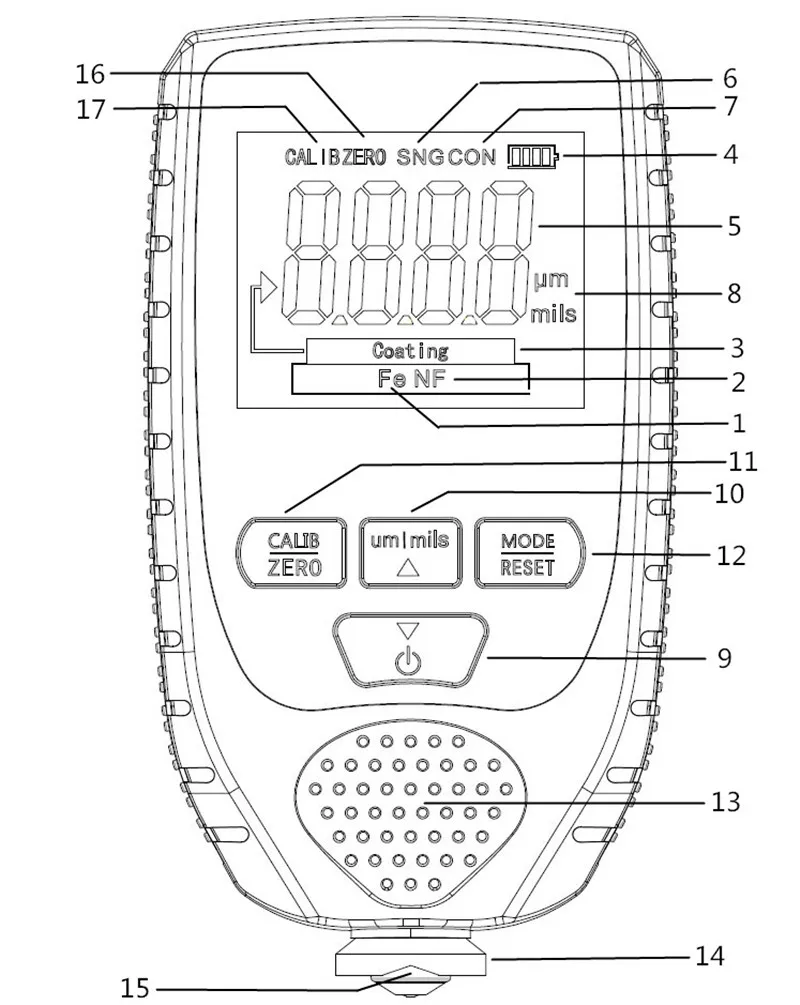

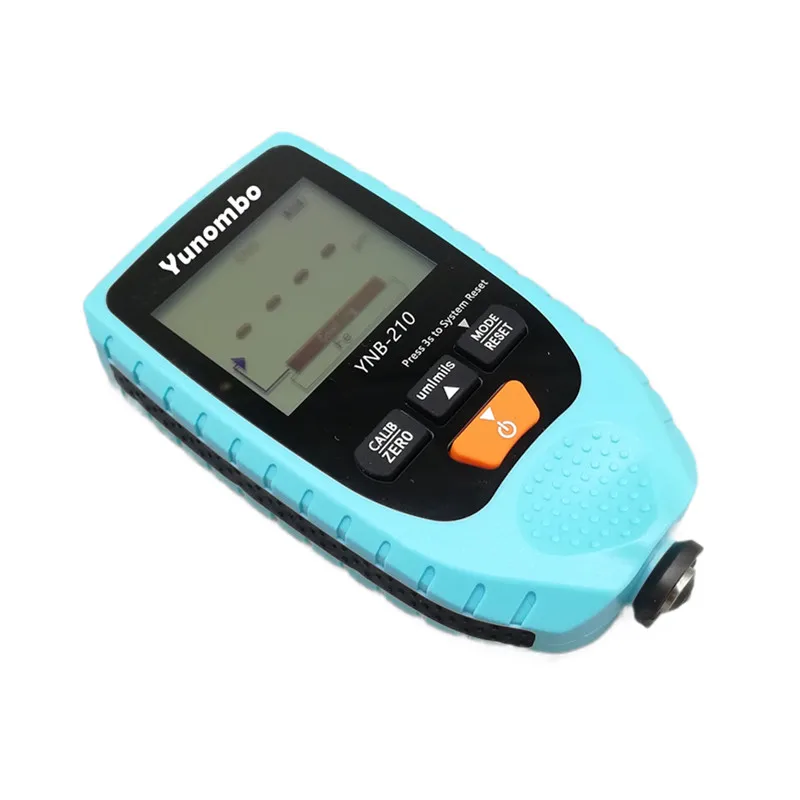

Product Overview:

1. Fe--Magnetic substrate indicator: Steel/Iron

2. NF--Non-magnetic substrate indicator: Copper/Aluminum

3. Coating Detecting Indicator

4. Battery level indicator

5. Measured Reading Display

6. SNG: Single Measurement Mode

7. CON: Continuous Measurement Mode

8. Unit: um, mil

9. ON/OFF; Down Key: Decreasing for Calibration;

10. um/mil: Unit Switch Key; Up Key: Increasing for Calibration

11. CALIB/ZERO: multi-points calibration; Press & Hold 3 seconds for Zero Calibration;

12. MODE/RESET: Switch SNG/CON; Press & Hold 3 seconds for factory default resetting;

13. Anti-Skid Slot

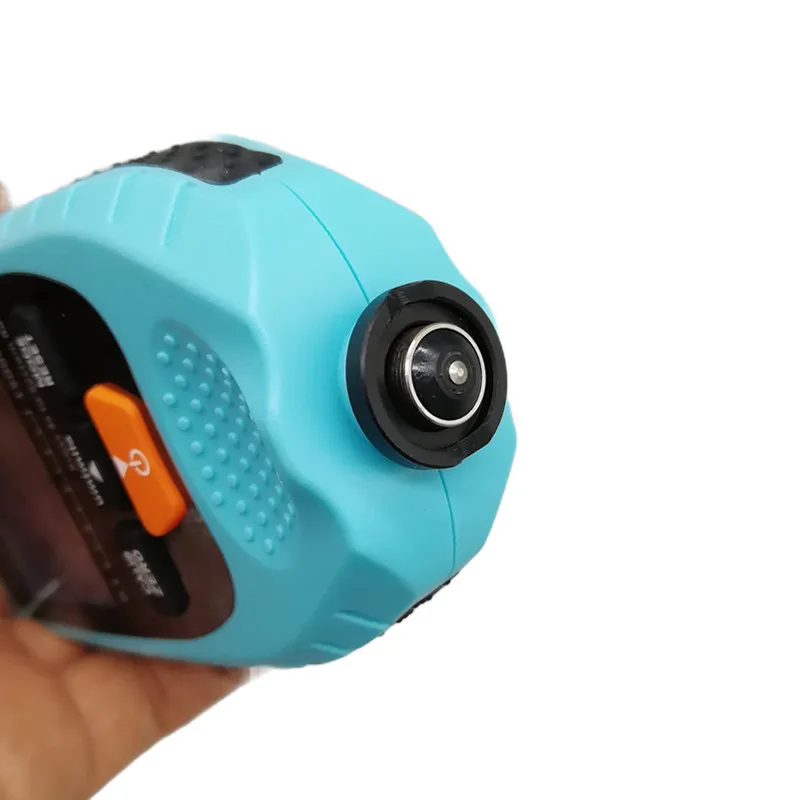

14. Probe

15. V-Groove

16. “ZERO” indicates 0 Calibration finishing

17. “CALIB” indicates in Calibration Mode

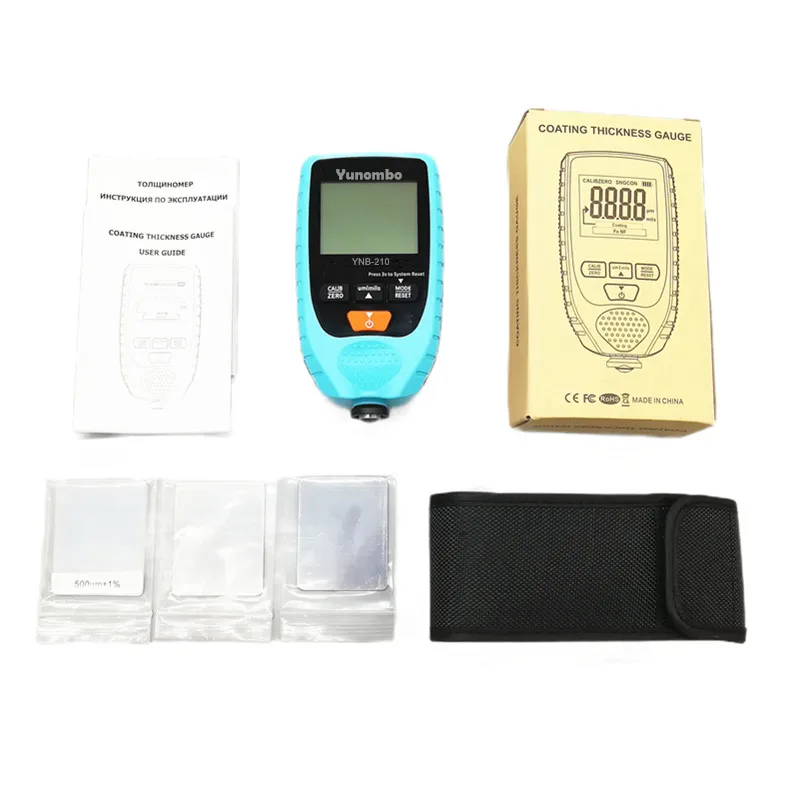

Package Include:

1 X Coating Thickness Gauge
1 X Iron Clibration Substrate
1 X Aluminum Clibration Substrate
5 X Calibraion Films(50um,100um,250um,500um,1000um)
1 X English User Guide
1 X Protective Case
1 X Retail Box

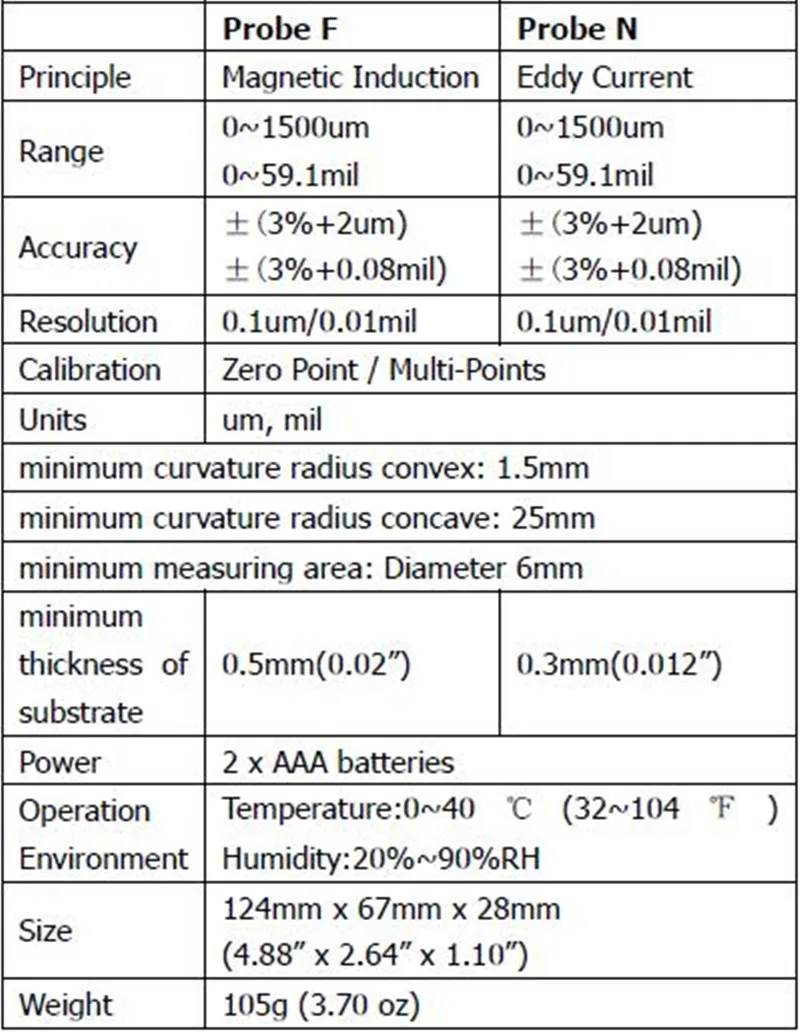

Specification:
