Yunombo YNB-400 Rotate Colour Display Auto Car Paint Thickness Meter Film Thickness Tester Zinc Paint Coating Thickness Gauge

Product details
Type:Thickness Gauge;Units:um/mil;
Measuring Range:0-1300um/0-51mil;Supply Ability:10000 Piece/Pieces per Month;
Package Preview:;Payment Terms:T/T,Western Union,MoneyGram;
Customization Function:Zinc Function;Place of Origin:China;
Error Range:≤150μm ±5μm,>150μm ±(3%H+1μm);Packaging Detail:Package box, 32pcs in one carton;
Calibration:Zero point/multi points;Material:ABS;
With backlight or not:Yes;Model Number:YNB-400;
Battery:1pc 3.7V Internal Rechargeable battery;Brand Name:Yunombo;
Color:Black and Red;Port:Shenzhen/Hongkong;
Resolution:( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil;

Yunombo YNB-400 Rotate Colour Display Auto Car Paint Thickness Meter Film Thickness Tester Zinc Paint Coating Thickness Gauge





Introduction:

This product is a color-screen portable coating thickness gauge with highdefinition
display, which can quickly, non-destructively and accurately measure
non-magnetic coating thickness on magnetic metal substrates and non-metallic
coating thickness measurement on non-magnetic metal sub-strates. At the same
time it can automatically identify magnetic metal substrate and non-magnetic
metal substrate, and is widely used in manufacturing, metal processing industry,
chemical industry, commodity inspection and other testing areas.



Function:
1.Menu operation and color-screen HD display.
2.Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate .
3.Two measurement methods: single measurement, continuous measurement.
4.Basic calibration and Zero-point calibration available.
5.Metric/imperial unit and storage function.
6.Screen rotation, charge protection, multi-interface displays, screen brightness selection.
7.Automatic shutdown.

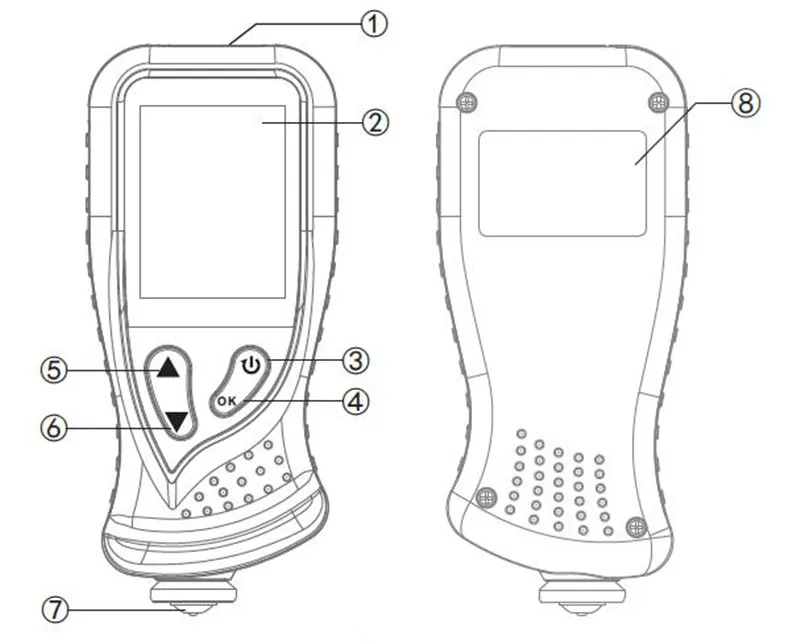

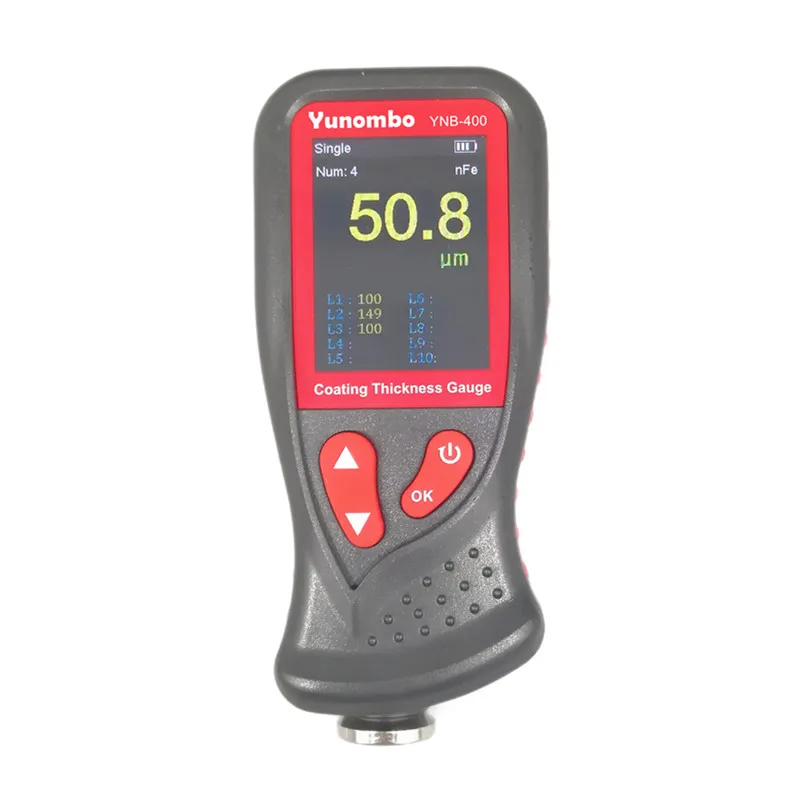

Product Overview:



1.USB charging interface
2.LCD display
3.Back button and power on/off button
4.Confirm button
5.Up button
6.Down button

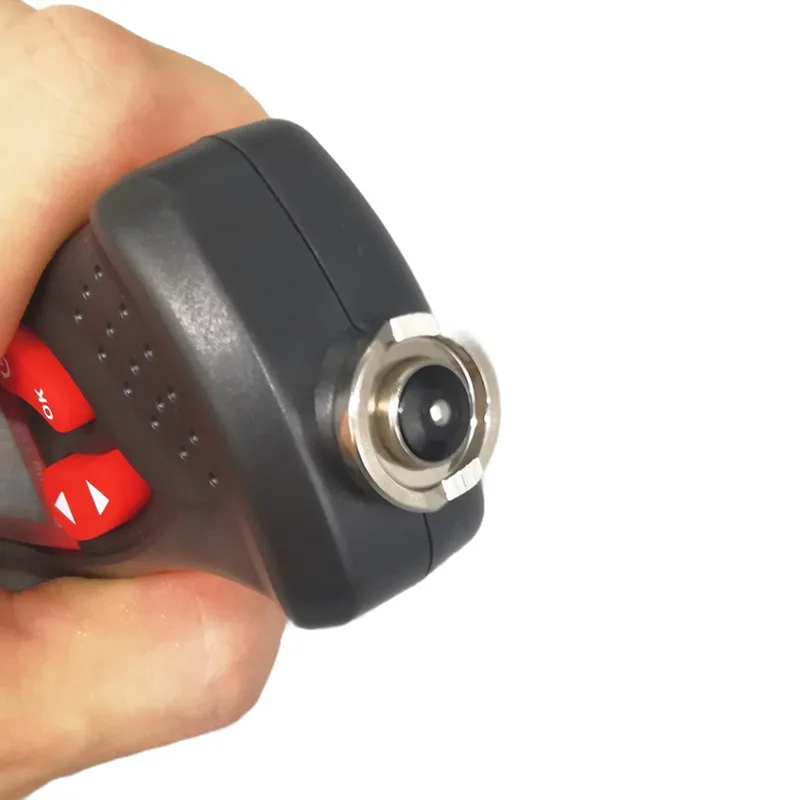

7.Test probe

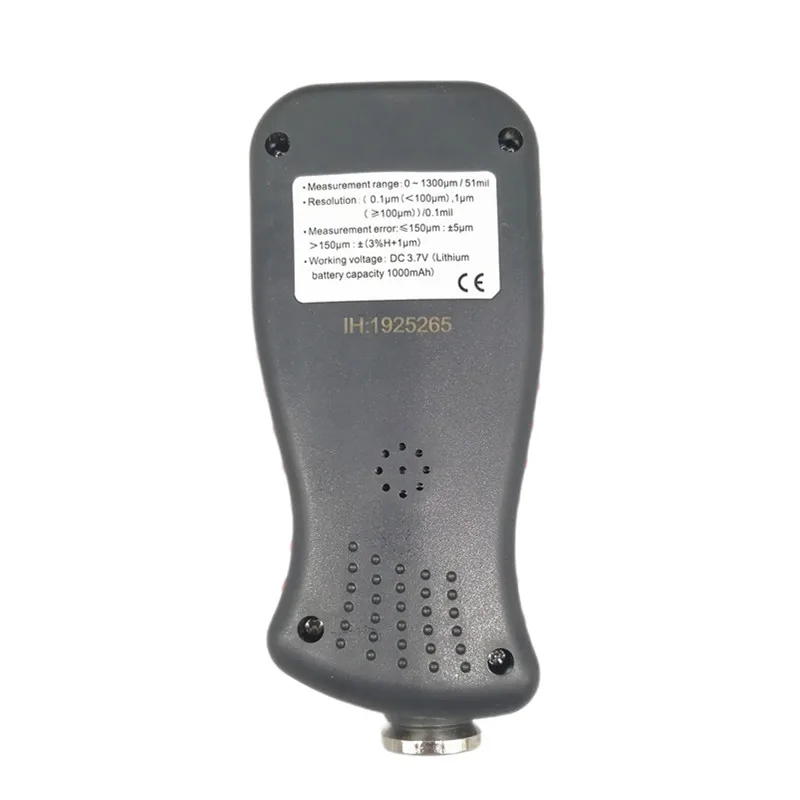

8.Nameplate on instrument’s back

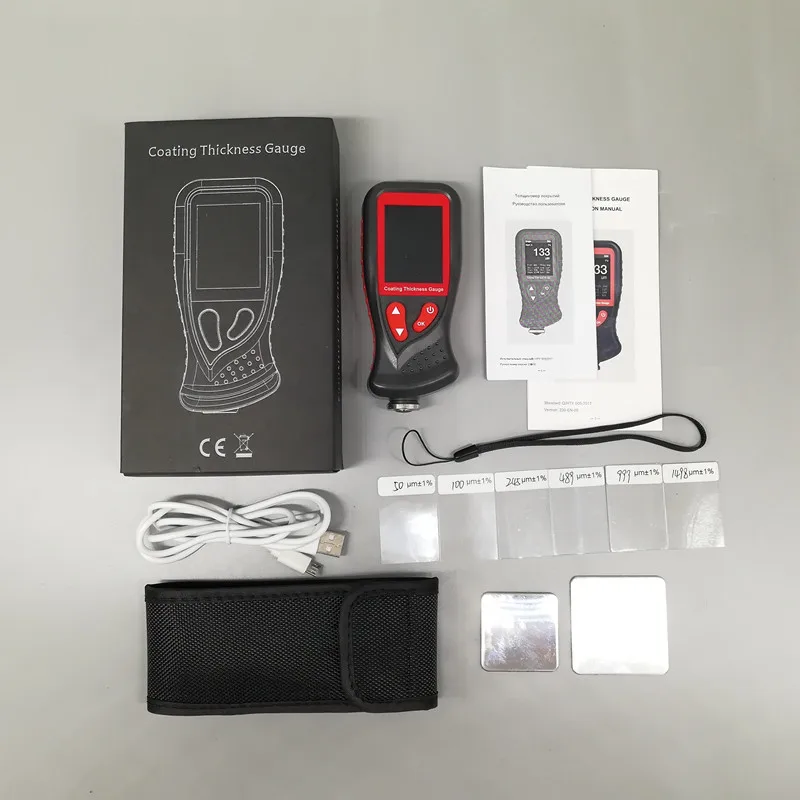

Package Include:

1 X Coating Thickness Gauge
1 X Iron Clibration Substrate
1 X Aluminum Clibration Substrate
6 X Calibraion Films(50um,100um,250um,500um,1000um,1500um)
1 X English User Guide

1 X Russian User Guide
1 X Protective Case

1 X Lanyard

1 X Charging USB Cable
1 X Retail Box

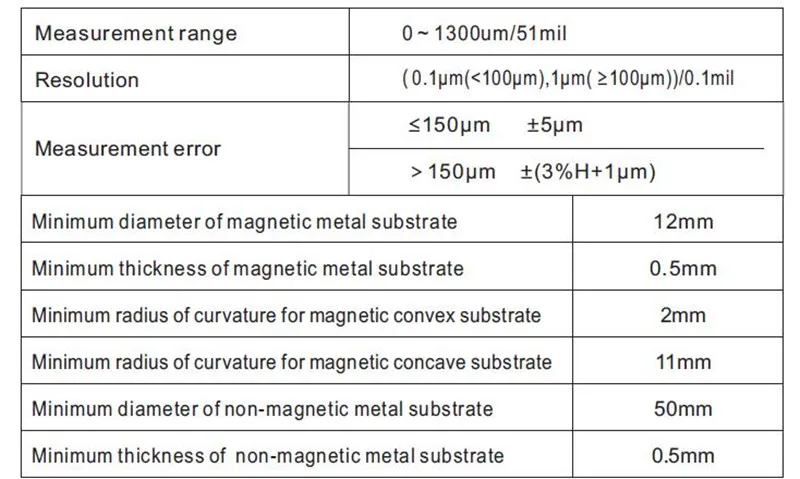

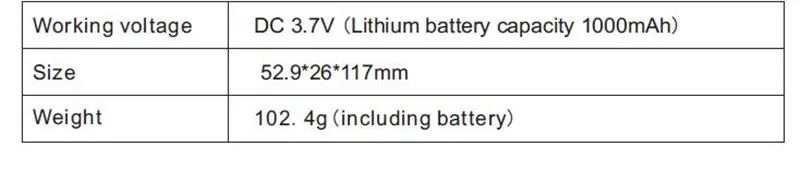

Specification:

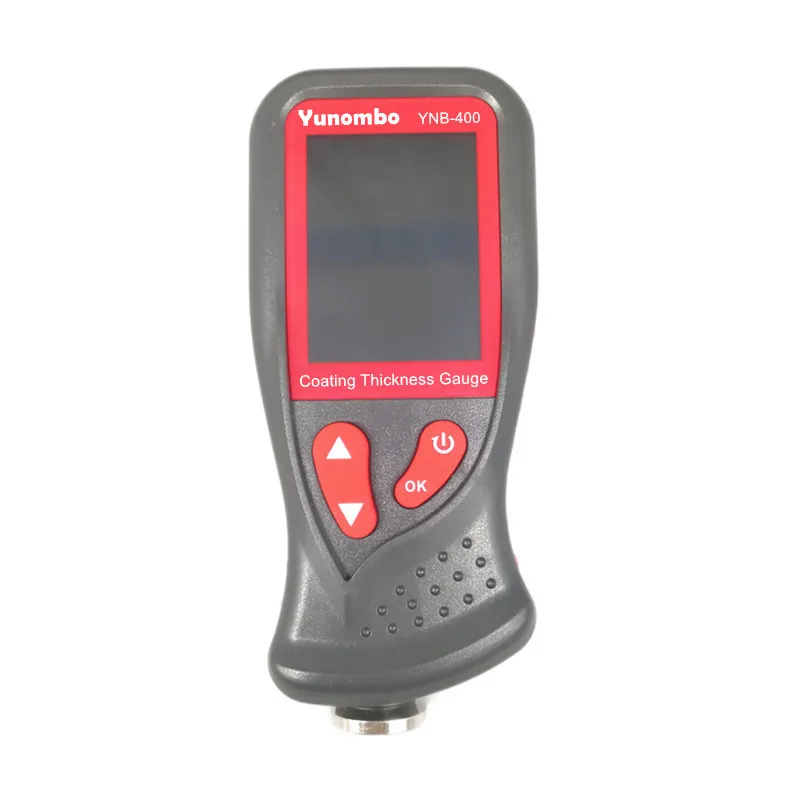

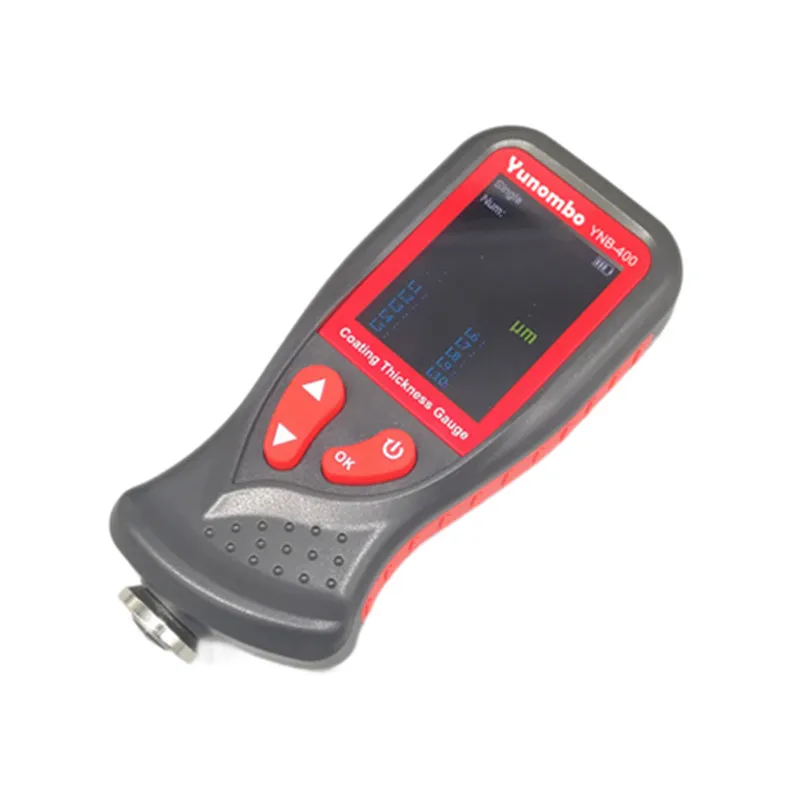

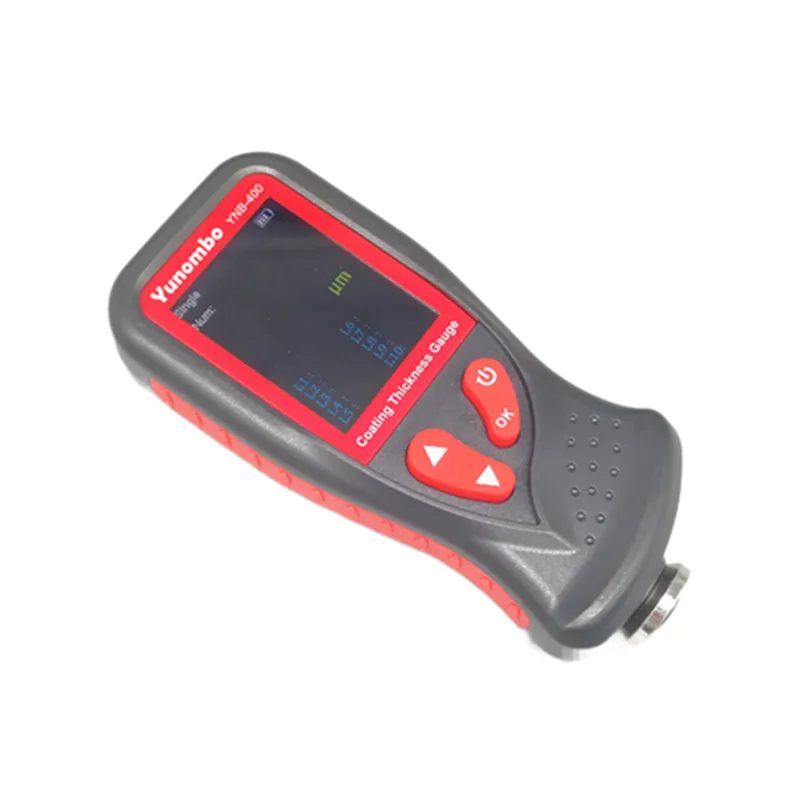

Product Photos:
