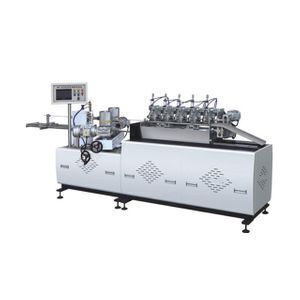

Automatic Paper Straw Making Machine for drinking Paper pipe

Product details
Package Type:Wooden Case;Single package size:350X150X120 cm;
Condition:New;Dimension(L*W*H):3500x1500x1200mm;
Voltage:380;Weight:1300kg;
Certification:CE;Package Preview:https://sc01.alicdn.com/kf/HTB1ILsEXfWG3KVjSZFgq6zTspXap.jpg_640x640.jpg;
Warranty:1;After-sales Service Provided:Overseas service center available;
Single gross weight:1,300 KG;Power(W):3kw;
Brand Name:CHAMPION;Applicable Industries:Printing Shops;
Place of Origin:CHINA;Selling Units:Single item;
Product Description



Please find our machine specification and payment term as below:



PaymentTT/LC
Delivery60-120 days

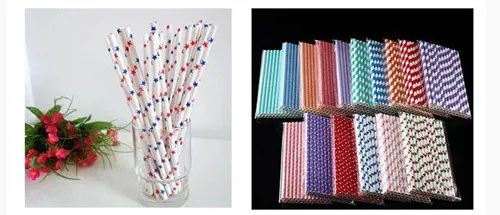

The high-speed paper straw machine integrates paper feeding, gluing, winding and cutting into a whole, and is equipped with a CNC multi-knife cutting system. The finished paper pipe can be cut online. 6 mm; 8 mm; 10 mm, etc.
1. The machine is controlled by PLC, and the main machine is equipped with frequency conversion and speed adjustment.
2. The cutting part adopts the servo multi-cutter cutting system, which can synchronously follow the cutting of motor, with higher accuracy and time-saving efficiency.
3. The body and main accessories are made of stainless steel to ensure the product's health and environmental protection





The main parameters

Paper layer

3layer

Volume tube diameter

4.7-12mm

Volume tube wall thickness

0.5-2mm

Steady speed

30-40m/min

Pipe cutting system

Synchronous motor tracking; Multiple cuts are made on the wire

The gluing way

Single and double face

The power supply

380V three-phase 50HZ

The operator

1-2person

Paper frame, rubber frame

3layer

The belt

3article

mandrel

2Set of

size

3500*1500*1200mm

The weight of the

1300kgs

Operating area

about7000*5000mm

Main motor

1.5W*2pcs
