New product cheap shaper B635A metal shaping machine with CE

Product details
Selling Units:Single item;Maching type:shaper;
Color:Customer appoint;Size:Mini;
Certification:CE, ISO9001;Weight:1200kgs;
Voltage:220V;Material:Cast iron;
Power(W):1.5KW;Brand Name:WMT;
After-sales Service Provided:Online support,Video technical support,Free spare parts;After-sales Service Provided:Engineers available to service machinery overseas;
Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ;Logo printing:OEM service;
Place of Origin:Anhui China;Horizontal:universal;
Machine:metal shaping machine;Single gross weight:1,000 KG;
Key Selling Points:Competitive Price;Package Type:plywood wooden box;
Condition:New;Single package size:160X900X140 cm;
Dimension(L*W*H):1530X930X1370mm;Warranty:1 year;
Product Description

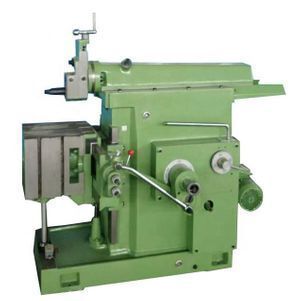

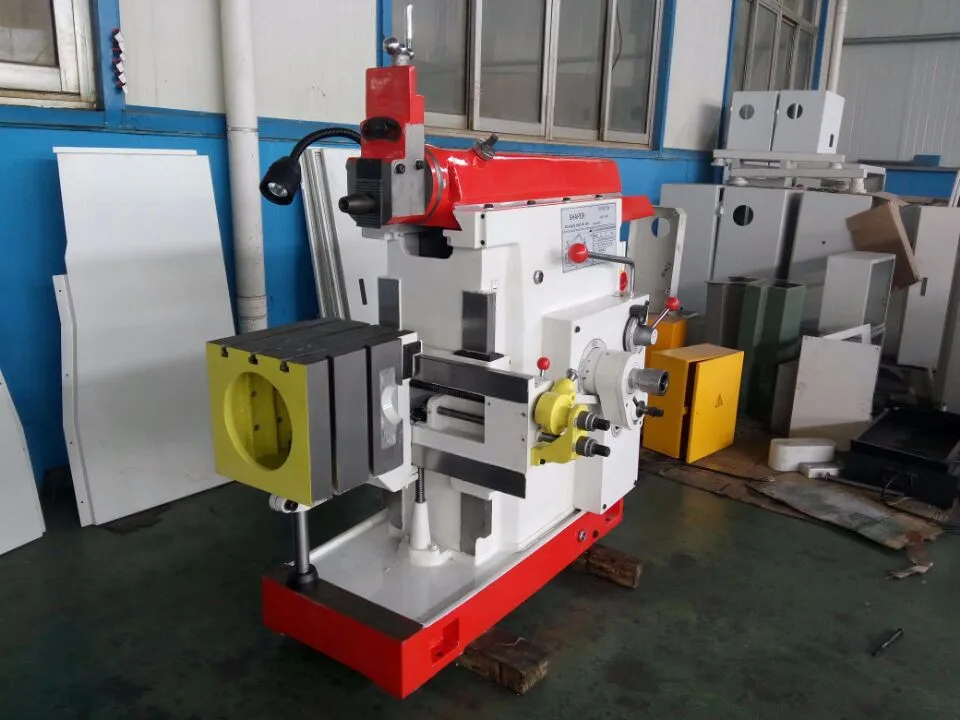

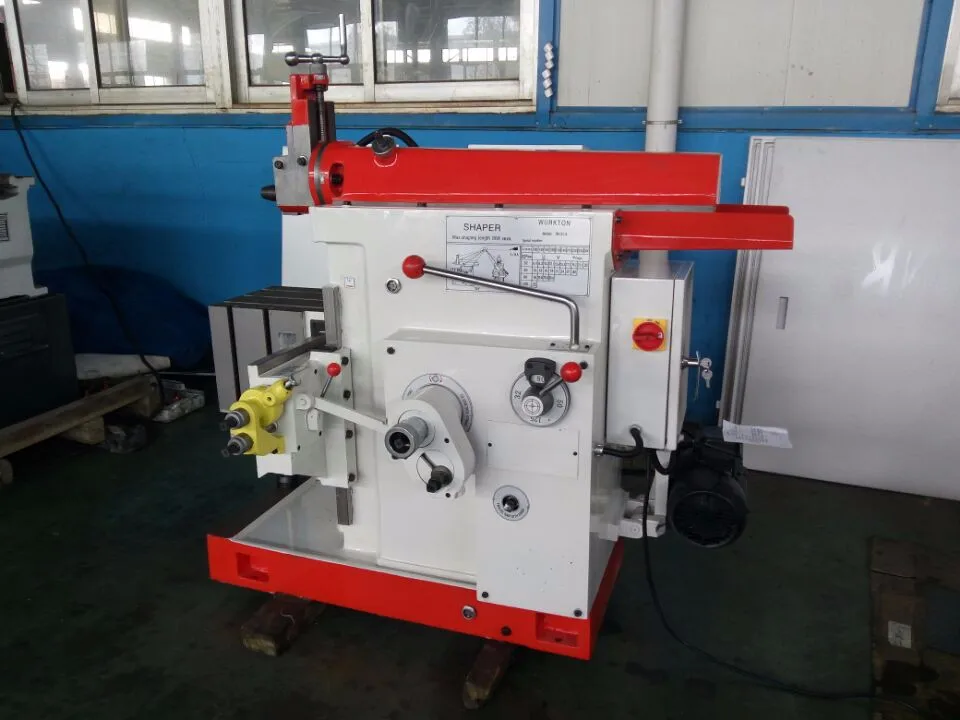

Shaping machine B635A , Shaper B635A









Specification

   B635A

Maximum Planing Length

350mm

Maximum Travel from the bottom of ram to Worktable

330mm

Maximum travel of worktable(horizontal)

400mm

Maximum travel of worktable(vertical)

270mm

The maximum distance from shaper body to  its leading surface

550mm

The maximum displacement of ram

170mm

Maximum turning angle of worktable( no vice)

±900

The max rotatory angle of worktable(vice)

±550

The max vertical travel of blade frame

110mm

The reciprocating times per minute

32, 50, 80, 125, times min





The ram back and forth a table feed amount



Wheel a gear (Vertical)



0.18mm

Wheel a gear (Horizontal)



0.21mm

Wheel four gears (Vertical)



0.73mm

Wheel four gears (Horizontal)



0.84mm

Electric Motor

1.5kw  1400r/min

Carton Size

1530*930*1370mm

NW/GW kg

1000kg/1200kg
