BIOBASE Air Protection Product Laboratory Furniture Air Shower

Supplier: Biobase Meihua Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Manson Zhang
Price: $2000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Weight:	300KG;	Certification:	CE ISO;
No.of SS Nozzles:	6;	Fluorescent Lamp:	20W*1;
HEPA Filter:	99.999% efficiency at 0.3 um;	Condition:	New;
Chassis:	Stainless Steel;	Voltage:	220V/50HZ;
Port:	qingdao;	Gross Weight:	300kg;
Power(W):	1000;	Brand Name:	BIOBASE;
After-sales Service Provided:	Overseas service center available;	Payment Terms:	L/C,T/T;
Place of Origin:	Shandong China;	Dimension(LWH):	30010002050mm;
Spraying Wind Speed:	25m/s;	Air Shower Time:	0~99s (adjustable);
Supply Ability:	1000 Unit/Units per Month Air Shower;	Door Material (Optional):	Cold-rolled steel with powder coating. 2. Stainless Steel;
Packaging Detail:	Wooden case or carton or required;	Power Supply:	AC220V±10%, 50/60Hz; 110V±10%, 60Hz;

BIOBASE Air Protection Product Laboratory Furniture Air Shower

Product Description

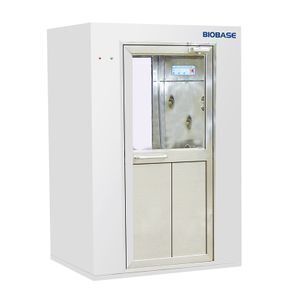

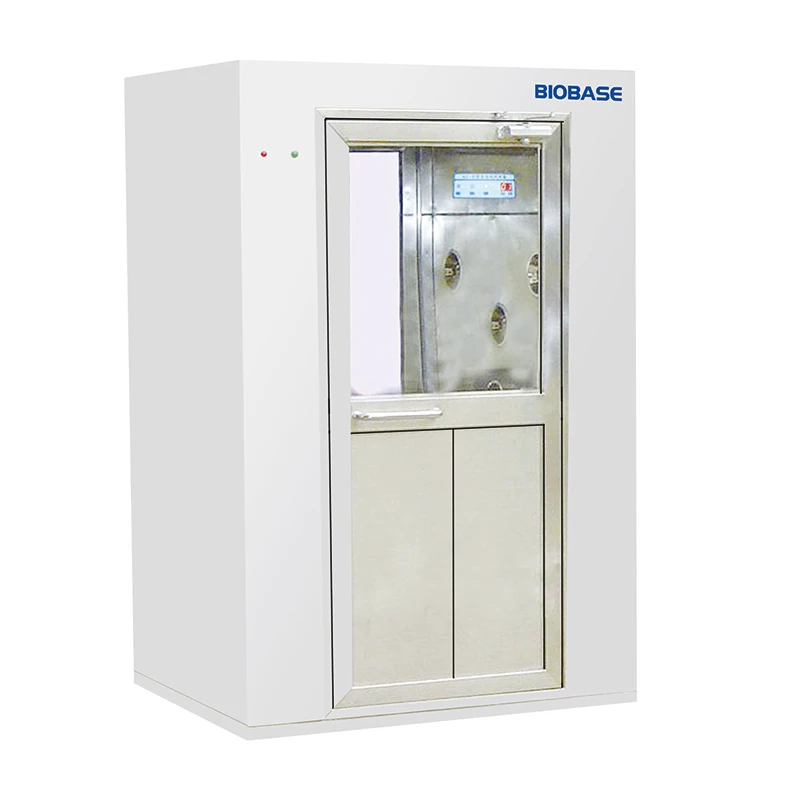

1.Picture Show of Air Shower

2.Features of Air Shower

Air shower is a necessary passage for person entering clean room in order to minimized the amount of particulate contaminant, achieve workplace strict clean purification standards. Personnel move through the air shower while

particulate contaminants are blew off by the clean high speed air. So the dust cannot be brought into clean area.

Features
1.Photoelectric sensor,automatic blowing.
2.Designed with circulation wind to easure the cleanness of shower area under non-shower status.
3.Double doors with electric interlock.
4.LED display with adjustable blowing time (0~99s).
5.HEPA Filter,Class 100 cleanness.

3.Technical Parameters of Air Shower

Model	AS-1P1S
External Size(WDH)	130010002050mm
Shower Area Size(WDH)	8008901930mm
HEPA Filter	99.999% efficiency at 0.3 um
Spraying Wind Speed	25m/s
Air Shower Time	0~99s (adjustable)
No.of SS Nozzles	6
Fluorescent Lamp	20W*1
Consumption	1000W
Cabinet Material (Optional)	1. Full cold-rolled steel with powder coating. 2. Internal stainless stell,external with cold-rolled steel 3. Full Stainless Steel.
Door Material (Optional)	1. Cold-rolled steel with powder coating. 2. Stainless Steel
Chassis	Stainless Steel
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	300kg
Package Size(WDH)mm	140011502200
