Attractive price all stainless steel automatic door air shower

  • Supplier: Weihui Lipu Machinery Co., Ltd.
  • Region: Henan, China
  • Contact: Mr Jack Hu
  • Price: $2000.00 / 1 - 9 sets
    $1200.00 / 10 - 999 sets
    $900.00 / >=1000 sets
  • Min. Order: 1 set
Product details
Air shower time (s):0-99s adjustablebrand:Lipu
Packaging Details:Any air shower room is packed in a fumigation-free wooden boxShowroom location:not any
Key words:Air showerweight:450 kg
Warranty:3 yearsSupply capacity:300 sets per month cheap air shower clean room door price high quality
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramport:Qingdao Shanghai Guangzhou
Core component warranty:3 yearsnozzle:12~36 pieces
Health status:newapplication:clean room entrance
Origin:Henan, ChinaDoor:Electronic interlock
Package preview:Mechanical test report:if
Applicable industries:Manufacturing plant, machinery maintenance shop, food and beverage factory, food store, printing shop, food and beverage store, otherssize:custom size
Voltage:220V/380VCore components:PLC, engine, gearbox
Material:Stainless steel 201/304strength:2200
Video shipment inspection:ifAfter-sales service provided:3 years

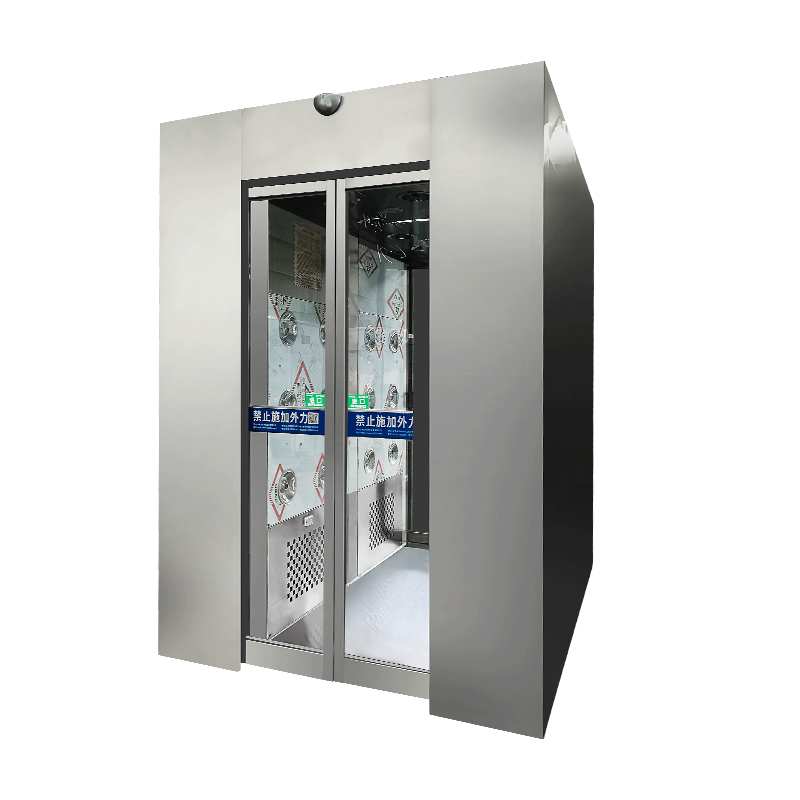

Dimensions (L*W*H):custom madeproduct name:sliding door air shower
Marketing Type:New Products 2020air filter:High efficiency filter (99.99%@0.3um) primary filter
Lipu Machinery is a professional manufacturer of air showers. It has been in this industry for 15 years and is deeply trusted and supported by users.
The main product air shower is exported to all over the world, with EU CE certification, quality assurance, and the best price.
Specification
Air shower
The clean room air shower is the only passage for personnel to enter and exit the clean room, and it also acts as a closed room for the air lock room. In order to reduce a large amount of dust particles generated by people entering and leaving, the air shower air filtered by the high-efficiency filter is sprayed on the surface of people/cargo through the rotatable nozzles on both sides of the box, effectively and quickly removing dust particles. The air shower of the clean room is filtered by the primary filter and the high efficiency filter and then circulated to the air shower area.

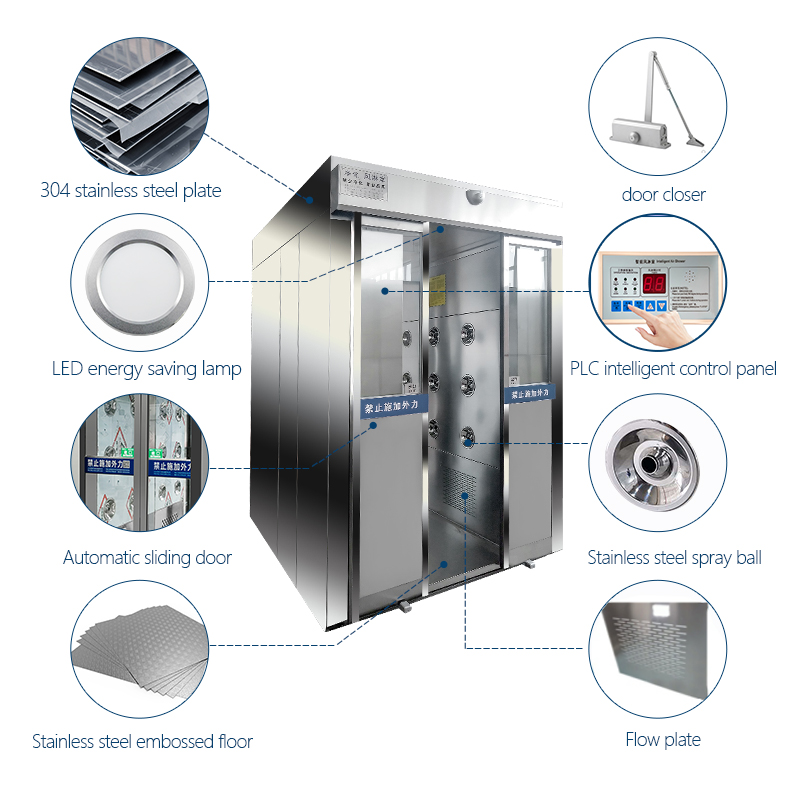

Specifications and Features:
The advantages and functions of our air shower are as follows:
1) Material: stainless steel SUS304;
2) Electronic interlock. When door A is open, door B is locked. Doors A and B cannot be opened when blowing air;
3) Install an emergency stop button according to customer needs, in case of emergency. Once pressed, both doors open;
4) Color LCD screen, control blowing time and lighting time. Display a reminder to change the HEPA filter when needed;
5) Infrared sensor automatically blows air and stops automatically;
6) Blow air on left and right sides, stainless steel nozzle.
7) German DORMA door closer, stable. Chinese KFC stores also choose this type as their door closers;
8) Install 360-degree rotatable nozzles according to customer needs to maintain efficient blowing of particulate matter
personnel.
 Regular Size Air Shower
Model
LPFIS-WLB1-1
LPFIS-WLB2-1
LPFIS-WLB2-2
LPFIS-WLB3-2
product name
single blow
double blow
double blow
multiplayer double blow
Shell material
Exterior: Painted cold-rolled steel/stainless steel
Internal: stainless steel 201/304
Number of nozzles
6
12
24 sheets (12 sheets per side)
24 sheets (12 sheets per side)
Nozzle diameter
diameter 30mm
speed
≥20m/s
Wind shower time
0-99s (adjustable)
filter
600*600*120 (1 piece)
600*600*120 (2 pieces)
600*600*120 (4 pieces)
600*600*120 (4 pieces)
Light
LED No. 1 built-in type
DimensionsW*L*H(mm)
1200*1000*2100
1200*1500*2100
1400*1500*2100
1400*1920*2100
Internal size W*L*H(mm)
800*920*1980
800*1420*2000
800*1420*2000
800*1420*2000
blower
220/380V, 50Hz or according to customer needs
Maximum power (W)
500
1100
2200
2200
interlock
Electrical interlock or mechanical interlock
Weight (kg)
200
300
400
300
 Size, material and shape can be customized
