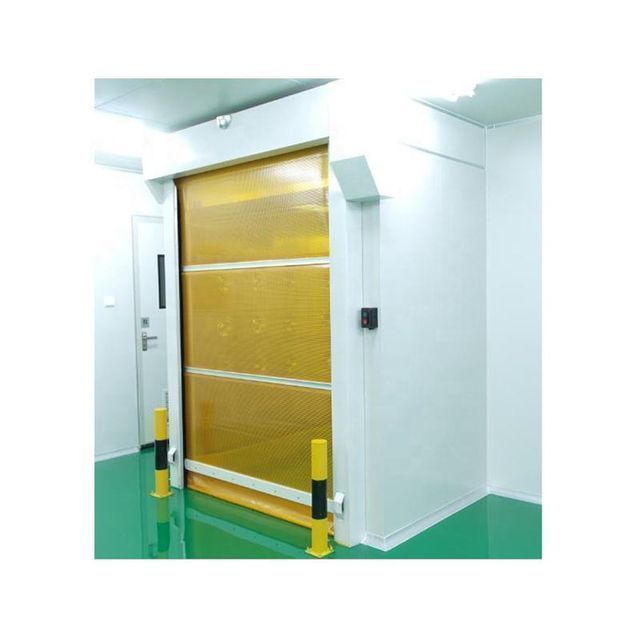

Clean room fast rolling door industrial air shower

Supplier: Tianjin Golden Hugeline Co., Ltd.
Region: Tianjin, China
Contact: Ms Linda Hu
Price: $600.00 / 1 - 1 pieces
$550.00 / >=2 pieces
Min. Order: 1 piece

Click here to contact

Product details

High efficiency filter:	H14	Video shipment inspection:	if
product name:	Air shower	Mechanical test report:	if
Material:	Stainless steel	payment terms:	L/C, Western Union, T/T, MoneyGram
Whether to customize:	Yes	Voltage:	220V / 380V, AC380V/3P/50Hz
Supply capacity:	1000 pieces per month	Marketing Type:	2019 Hot Products
Warranty:	1 year	Applicable industries:	Electronics Factory
Showroom location:	not any	port:	Tianjin Shanghai Guangzhou Ningbo Qingdao
Cleanliness:	@≥0.5μm≥99.99%	door lock:	Electronic interlock
Core component warranty:	1 year	size:	120010002100mm
Core components:	engine, motor	Origin:	Tianjing, China
Health status:	new	Dimensions (LWH):	1200x1000x2100mm

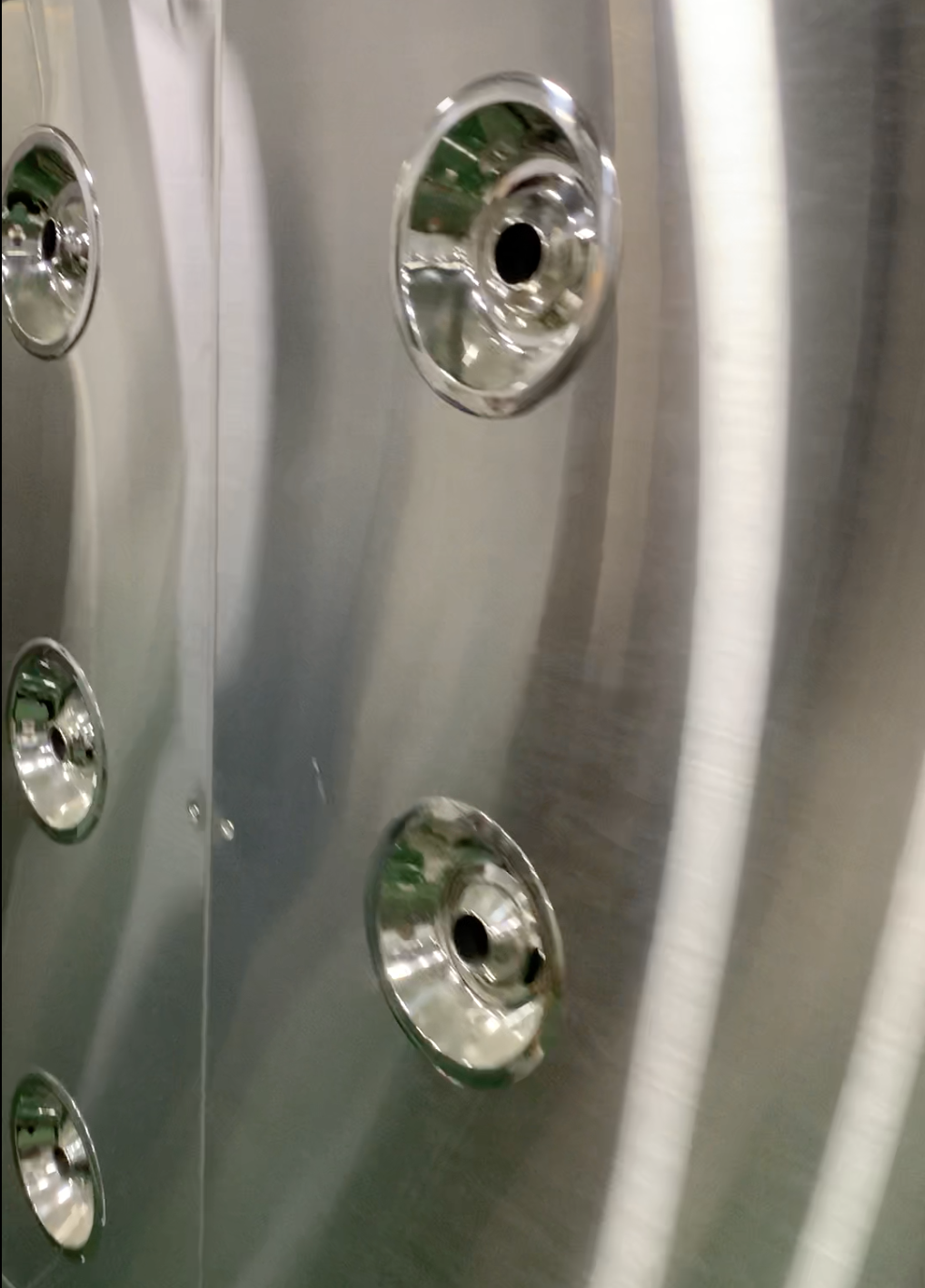

Wind shower time:	0-99S adjustable	Number of nozzles:	12
weight:	350 kg	brand:	GHL
Packaging Details:	wood packaging

Air shower

The AS series air shower clean room is used to blow off the dust attached to the surface of people and objects, and at the same time it acts as an air lock to prevent unpurified air from entering the clean area. is a performer

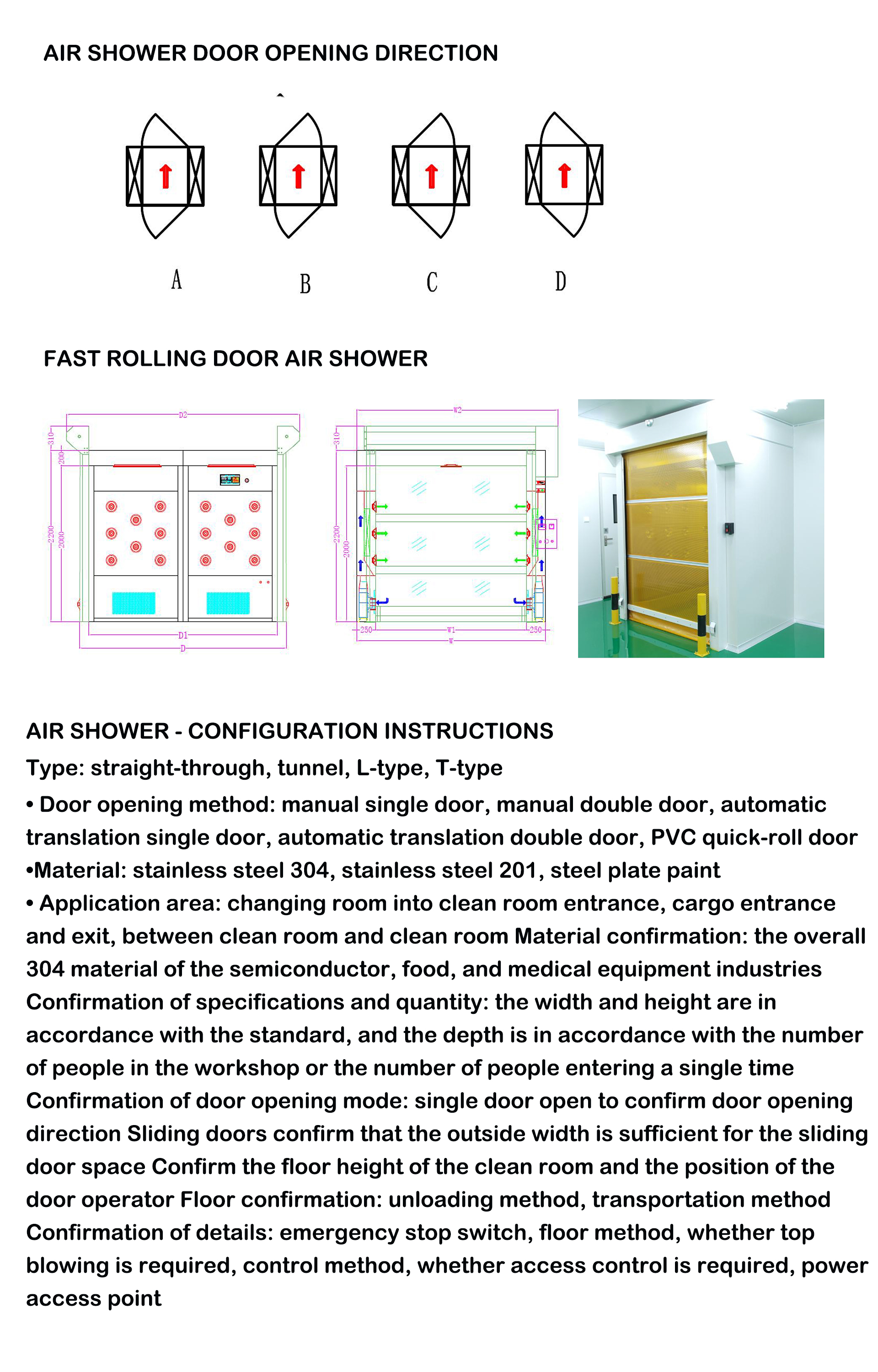

AS-800Rolling shutter series industrial air shower

1. Photoelectric control, automatic shower.

2. The circulating air design ensures the cleanliness of the air shower clean room area in the non-shower state.

3. The double doors adopt electronic interlocking mandatory shower, and the double doors can be made into automatic side doors.

Features

1.The air shower/cargo shower fan can be equipped with multiple protections such as overheating, overcurrent, short circuit, and malicious use.------Safe and reliable performance

2.Emergency buttons are set inside and outside the air shower/cargo shower to ensure the safety of personnel and equipment in emergency situations

3.There are two types of control systems:Standard configurationandhigh configurationFor customers to choose. Standard touch screen, simple appearance, complete functions, low cost; high-end configuration is Siemens touch screen and PLC control. The control process can be customized and modified according to different requirements of customers. The touch screen is easy to use, complete in functions, stable and reliable

4.Aluminum alloy automatic swing door, electric opening. The interlock access control is controlled by a programmable controller. The door type is made of aluminum alloy, and the doors and windows are made of tempered glass.

The bottom of the door body is in contact with the induction side, and the semi-automatic hand crank can be raised and lowered when the power is off (or power off) (customized according to customer requirements)

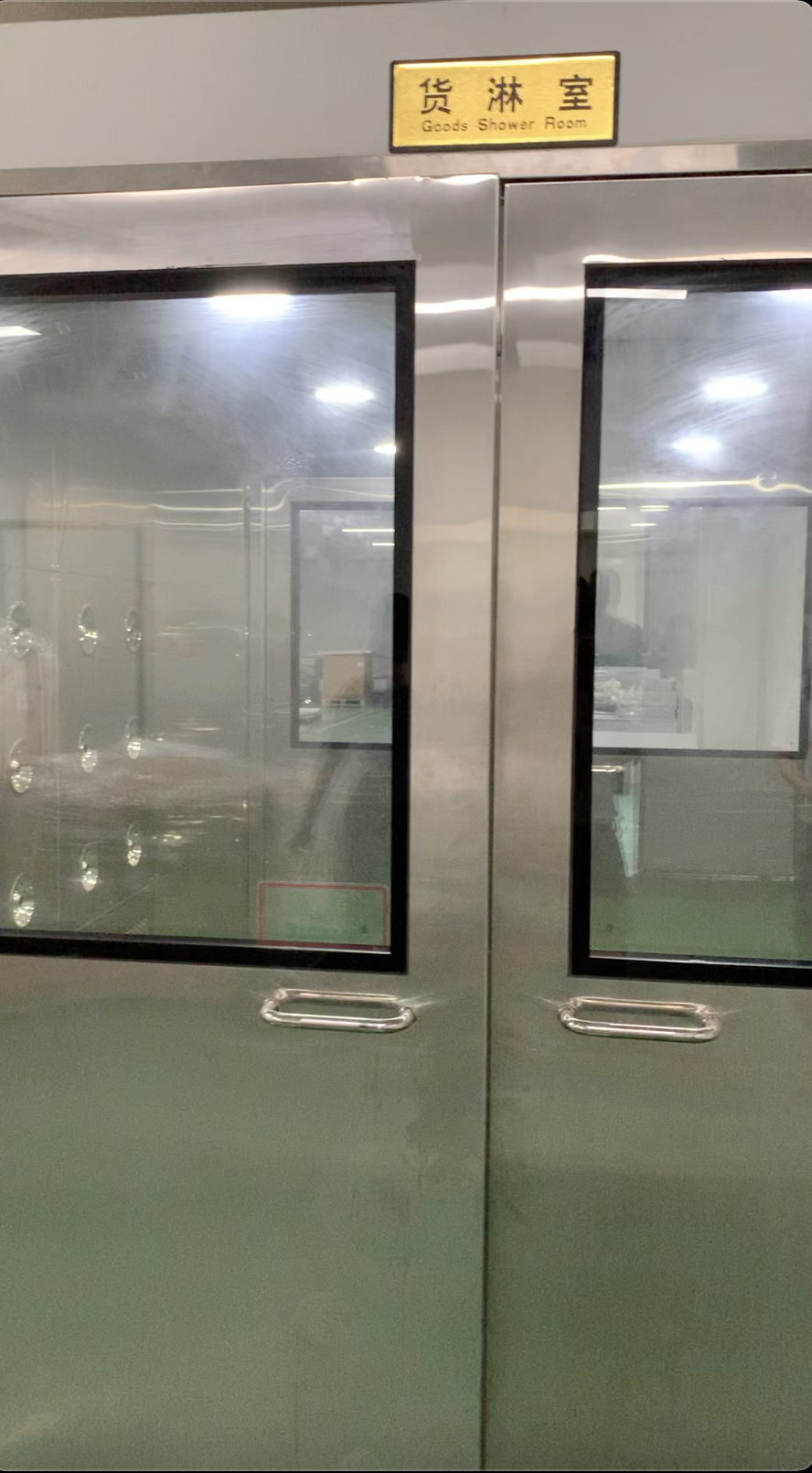

5.The air shower/cargo shower box implements a master-slave modular structure design to meet customer needs through different combinations.------different shower speeds

6.The air shower clean room/cargo shower comes with a pressure relief device to prevent the excessive pressure of the fan from causing the temperature to rise too high.------Security Risk

7.Automatic door sensor shower system: Japan Omron brand photoelectric sensor switch is adopted, the performance is stable and reliable, which ensures the normal shower process of personnel entering the clean room and achieves the most effective shower effect. shower effect.

8.Lighting system: 220V LED lighting, which has the characteristics of long service life, high radiation intensity, small size and low energy consumption.

9.Voice prompt system: The air shower has its own voice function and humanized design. Users can operate according to voice prompts to achieve the best blowing effect.
