Air shower transfer window two-stage filtration dust removal cleanliness 100 ISO5 clean room

Supplier: Shenzhen Fairtech Electronics Co.,LTD
Region: Guangdong, China
Contact: Ms Lina Huang
Price: $3300.00 / 1 - 499 pieces
$3000.00 / 500 - 999 pieces
$2500.00 / 1000 - 1999 pieces
$1300.00 / >=2000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Wind speed:	22-27 meters/second	HEPA filter efficiency:	H13, 99.99%@0.3um
Package preview:		Laminar flow:	vertical airflow
Mechanical test report:	if	Air shower time (seconds):	0-99 seconds adjustable
noise:	Less than 65 decibels	Nozzle wind speed (m/s):	Nozzle wind speed (m/s)
Warranty:	1 year	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
brand:	Fairtek	Video outbound inspection:	if
Sales unit:	Single product	weight:	380kg
Showroom location:	not any	Health status:	new
Applicable industries:	Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agencies	strength:	1.1kW
Single piece packaging size:	100X100X50cm	Core component warranty:	1 year
After-sales service provided:	Engineers can repair machinery overseas	product name:	Clean room air shower
Certification:	ISO9001 & CE & FCC	Voltage:	380V/50Hz

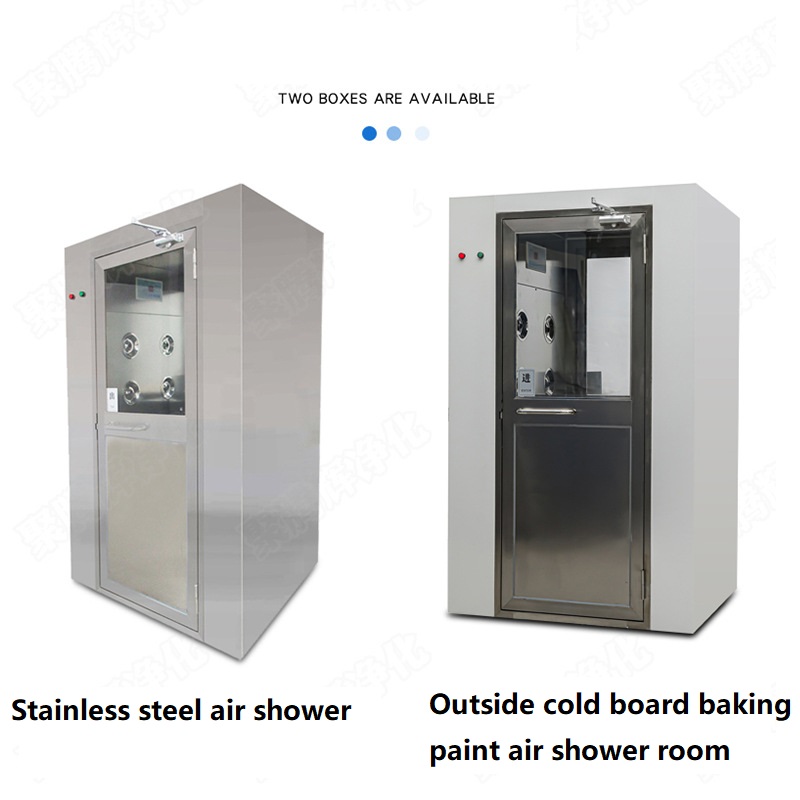

Material:	Stainless steel 201/304	Dimensions (lengthwidthheight):	130010002100
Marketing type:	2020 new products	Place of origin:	Gua
Gross weight of single piece:	68.000kg

Product Description

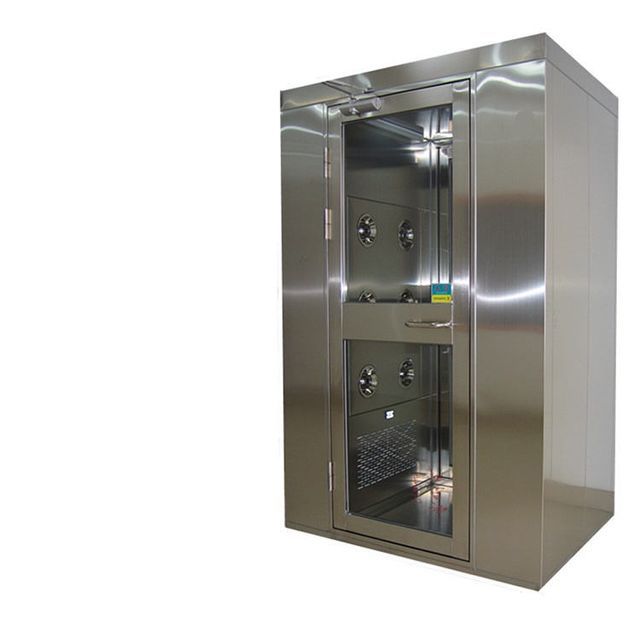

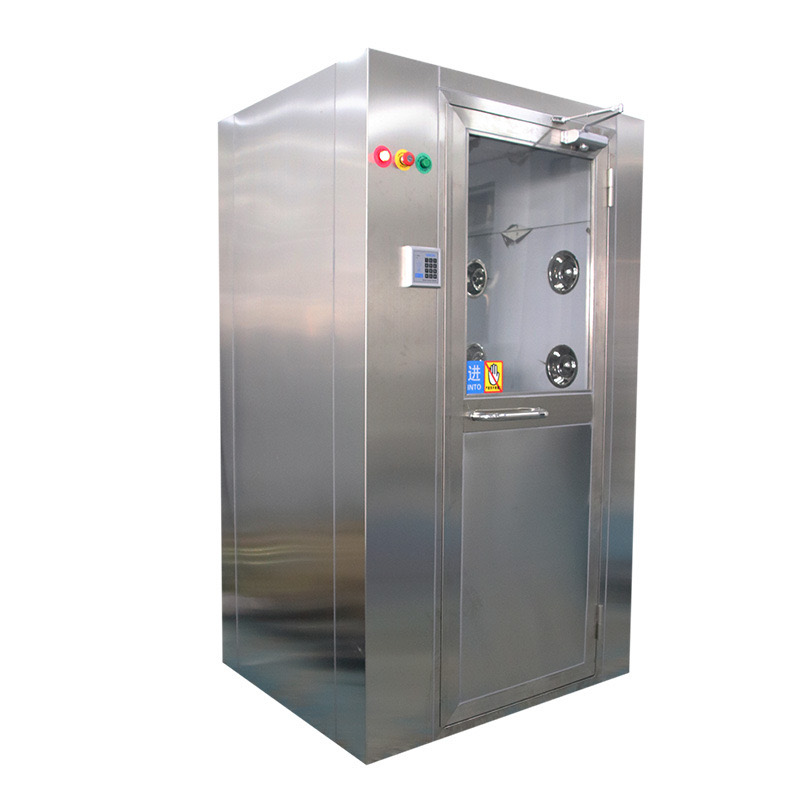

Clean room air shower with vertical airflow supports customization

describe:

An air shower is a specialized closed front room. They utilize high pressure, HEPA or ULPA altered air to remove dust,
Efficiently remove lint and other pollutants in the air on the surface of people or objects. At the same time, its Air Lock function can effectively control personnel entry and exit, and can be used as a buffer room at all levels in the clean room to prevent cross-contamination.

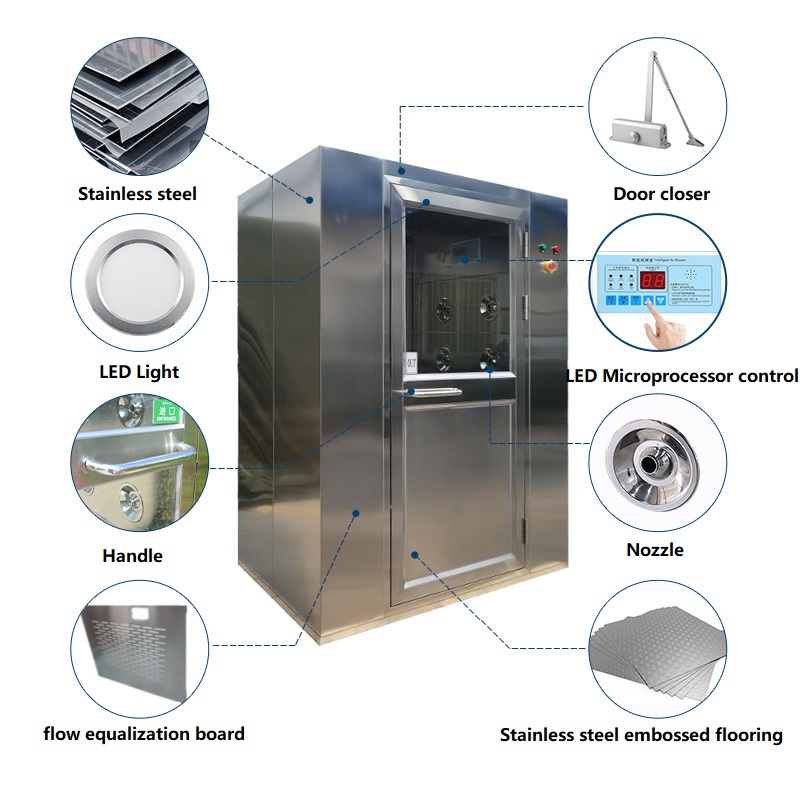

feature:

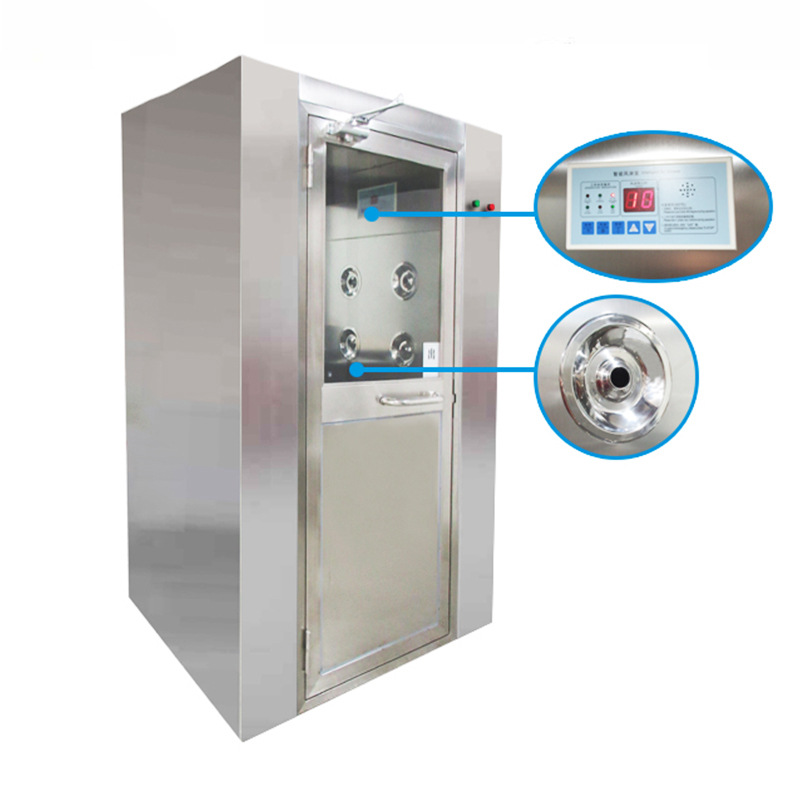

1. Fully automatic computer control, 2 electronic interlocking doors, automatic blowing and showering.
2. The shower time can be adjusted from 0 seconds to 99 seconds, and has time display and voice prompts. It adopts membrane touch switch and is easy to operate.
3. The bottom plate and nozzle are made of high-quality stainless steel.
4. With pre-filter and high-efficiency filter, the efficiency can reach 99.99%@0.3μm.
5. Wind speed can reach 25m/s. Professional and rapid design of non-standard products.

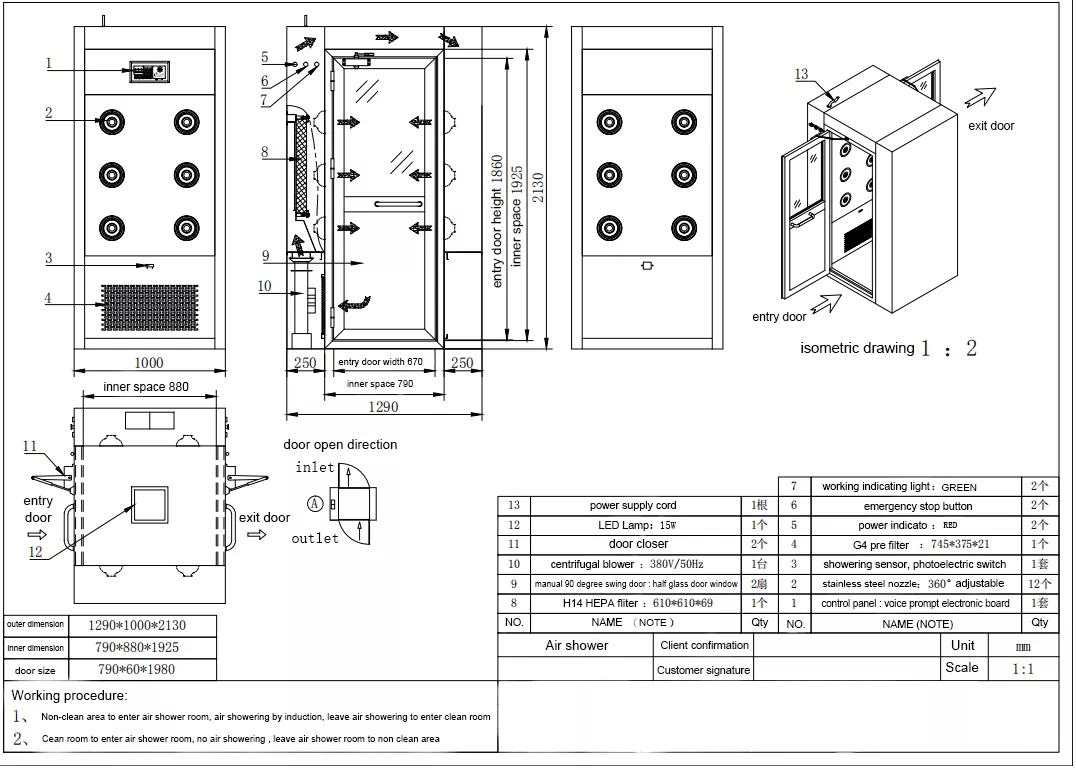

Specification:

All sizes and styles can be customized
thing			Air shower room one person	Air shower room for two	Air shower room For multiple people
Model			FT-1400/1	FT-1400/2	FT-1400/3
External dimensions (width x length x height mm)			1400x1000x2180	1400x2000x2180	1400x3000x2180
Internal dimensions (width x length x height mm)			790x930x1910	790x1930x1910	790x2930x1910
Stainless steel nozzle (PC)			16	32	48
Nozzle wind speed (m/s)			≥25	≥25	≥25
Noise (1m away) (dB)			<65	<65	<65
Fan filter unit	Supply voltage (V/Hz)	380/50	380/50	380/50
		Power (watt/set)	1100×1	1100×2	1100×3
		Quantity/set	2	4	6
		Air flow (cubic meters/hour)	1300	1300	2300
HEPA filter	Dimensions (width × height × depth mm)	630×630×69	630×630×69	630×915×69
HEPA filter		Quantity (set)	1	2	3
prefilter	Dimensions (width × height × depth mm)	855×158×17	855×158×17	855×158×17
prefilter		Quantity (set)	1	2	3
Total power supply/W			1130	2240	3350
