CE/ISO/GMP 99.995% HEPA Filter Coated Steel/Stainless Steel Air Shower for Personnel Decontamination

Supplier: Suzhou Huajing Air-Condition Purification Engineering Installation Co., Ltd.
Region: Jiangsu, China
Contact: Mr jin shen
Price: $2000.00 / 1 - 4 sets
$1800.00 / 5 - 9 sets
$1600.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	1400(W)3000(D)2100(H)	Warranty:	12 months
port:	Shanghai	Video outbound inspection:	if
Core component warranty:	1 year	Material:	Stainless steel/SUS304
Core components:	Programmable controller, motor	Applicable industries:	Manufacturing plants, food and beverage factories, hospitals, electronics factories, chemical laboratories, pharmaceutical factories
Shower time:	0-99s adjustable	payment terms:	L/C, Western Union, D/P, T/T
weight:	300 kg	Air velocity at nozzle:	≥25m/s
HEPA filter:	6 (manufactured in 10,000-class clean room)	Internal Dimensions (mm):	800(W)2900(D)1960(H)
Nozzle material:	Stainless steel	Origin:	Jiangsu, China
Supply capacity:	50 sets per month	nozzle:	36 pcs (both sides blown)
brand:	kilowatt	strength:	3.5KW
Showroom location:	not any	Nozzle diameter:	30 mm
Package preview:		Mechanical test report:	if
Packaging Details:	Pack the air shower in a wooden box, and then put the wooden box into the container.	Voltage:	220V/380V (customizable)
Prefilter:	6 (manufactured in 10,000-class clean room)	efficiency:	≥99.995%
Health status:	new	Marketing Type:	normal product

product description

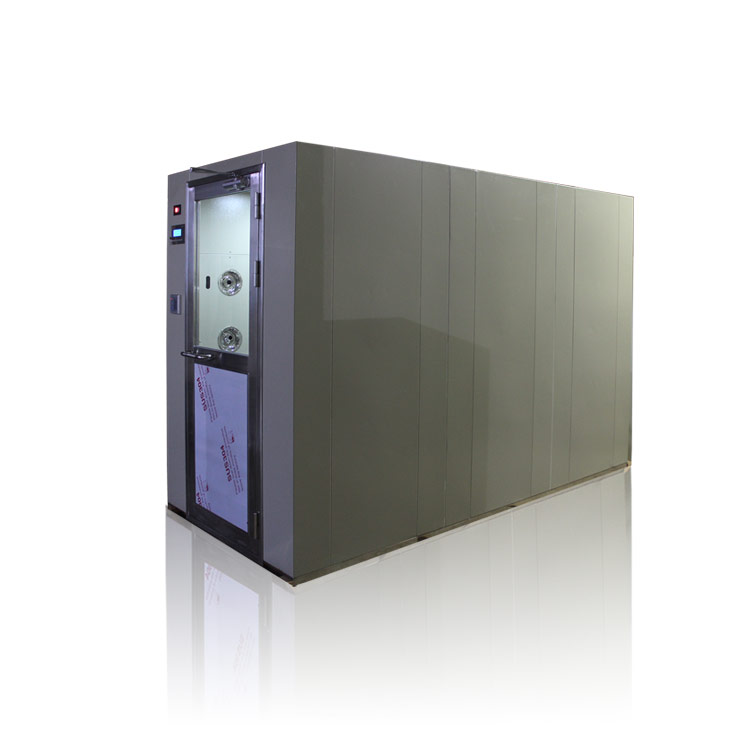

99.995% HEPA Filter Coated Steel/Stainless Steel Clean Room Personnel Air Shower

Suzhou Huajing clean room air shower adopts pre-filter and HEPA filter system, the filtration efficiency reaches 99.995%, with multi-angle adjustable stainless steel nozzles and large air volume and low noise fan. The wind speed at the air outlet can reach 25m/s, and the wind speed reaching the human body can reach 18m/s.

List of functions

Model: SHP-AS-3

CE/GMP/ISO certificate

Material: stainless steel/SUS304

Dimensions (MM): 1400W*3000D*2100H

HEPA filtration efficiency ≥99.995%@0.3μm

Electronic interlock

manual door

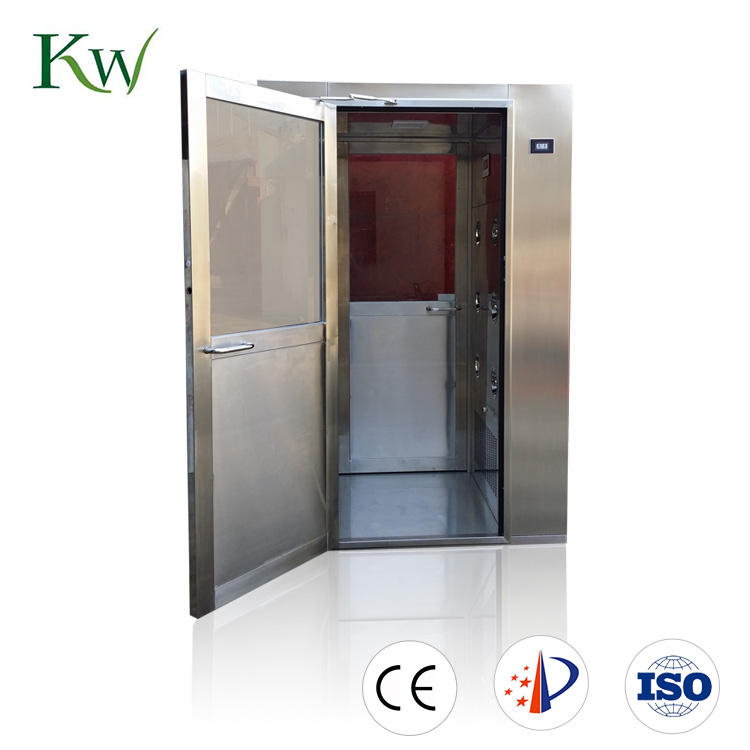

SHP-AS-3 Air Shower

Model: KW-AS-3 (suitable for 4-5 people)
Material: SS304
Dimensions (mm): 1400 (width) * 3000 (depth) * 2100 (height)
Air shower size (mm): 800(W)*2900(D)*1960(H)
Number of nozzles: 48 (three sides blowing), rotatable;

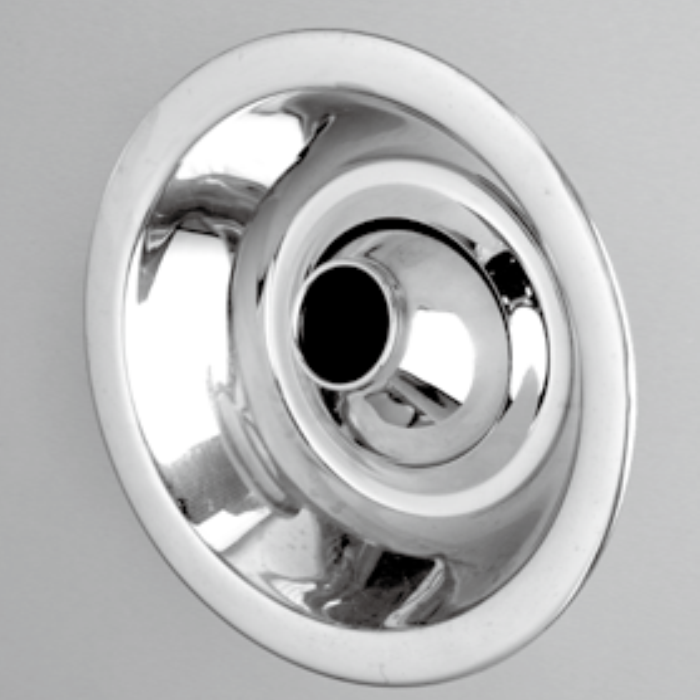

Nozzle material: SS304
Nozzle diameter: Φ30mm
Nozzle wind speed: ≥25m/s
Filters: pre-filter *6, HEPA filter *6, the filter is produced in the 10,000-class clean room;

Efficiency: ≥99.995% (sodium flame method), particle size ≥0.3μm
Light: LED light*3pcs
Air shower mode: automatic, manual
Fan: low noise and high pressure centrifugal fan *6;
Power: 3.5KW
Shower time: 0-99s adjustable

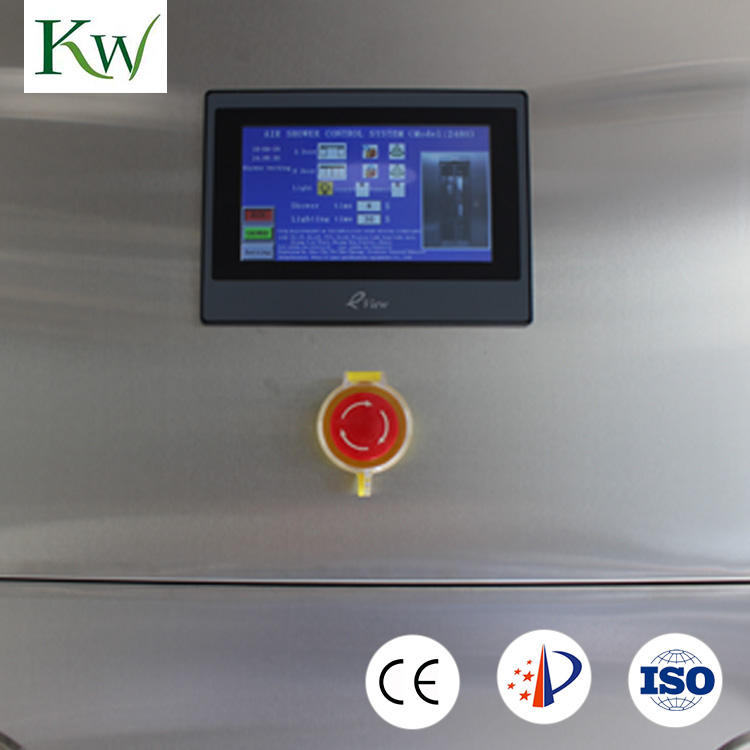

Control panel: 7.2" panel, electronic interlock
Power supply: 380V, 60Hz, three-phase five-wire (customizable)
Packing: wooden box
Door: Manual door (pull the handle to open)

product specification

Model	SHP-AS-1	SHP-AS-2	SHP-AS-3	SHP-AS-4
Applicable number of people	1	2-4	4-5	5-6
Wind shower time	0- 99s (adjustable)
Number of nozzles	12 (both sides)	24 (both sides)	36 (both sides)	48 (both sides)
Nozzle diameter	Φ30mm	Φ30mm	Φ30mm	Φ30mm
Air velocity at the nozzle	>25m/s	>25m/s	>25m/s	>25m/s
HEPA filter size (mm)	600×600×120	600×600×120	600×600×120	600×600×120
Air shower area size (mm)	800×900×1960	800×1900×1960	800×2900×1960	800×3900×1960
Dimensions (mm)	1400×1000×2100	1400×2000×2100	1400×3000×2100	1400×4000×2100
Power supply: 380V, 50HZ, we can make non-standard voltage for different countries.
Maximum power consumption	1.1 kW	2.2 kW	3.3KW	4.4 kW
