Low Price Custom Air Shower Manufactory Clean Room Class 100 Purifi Air Shower

Product details
Marketing Type:New Products 2020Wind shower time:0-99s adjustable, the standard is 10s.995%@0.3um
Showroom location:not anyDimensions (L*W*H):1290*1000*2050
Core component warranty:1 yearPower consumption:1100w/ 1500w/ 2200w/ 2500w
Package preview:payment terms:wire transfer
Packaging Details:Plywood boxesMaterial:SUS304, SUS201, paint optional
After warranty service:online supportOrigin:Guangdong, China
Air speed:20-25m/sHealth status:new
Warranty:three yearsVideo shipment inspection:if
port:Shenzhen PortApplicable industries:building material store, manufacturing plant, food and beverage factory, construction work, food and beverage store
strength:1100W-2500Wproduct name:Clean room air shower
Core components:PumpVoltage:380V,50/60HZ
Comment:Specifications can be customized according to customer requirementsHigh efficiency filter:H13 or H14, 99.99%@0.3um or 99.995%@0.3um
weight:150 kgbrand:Brocade
Mechanical test report:ifNumber of nozzles:12/18/24/48
Product Description
Model
A01
A02
A03
A04
Dimensions
1290*1000*2050
1290*1500*2050
1390*2000*2050
1390*2500*2050
Internal dimensions
790*1000*1950
790*1500*1950
790*2000*1950
800*2500*1950
power supply
AC 220V or AC 110V , 50/60Hz
Power consumption
1100W
1500W
2200W
2500W
Number of nozzles
12
18 pcs
24
48
wind speed
20-25m/s
Wind shower time
0-99s adjustable, standard 10s
High efficiency filter
H13 or H14, 99.99%@0.3um or 99.995%@0.3um
Material
SUS201, SUS304, paint optional
number of people
1-2
2-3
3-4
4-6
Comment
Specifications can be customized according to customer requirements

Automatic control, electronic interlocking, shower double door locks, infrared sensor automatic shower. Stainless steel semi-glass door automatic door closer, transparent window, inner lower plate made of stainless steel; software trial controller, LED display and set blowing time, the range is adjustable from 0 to 99 seconds, and the interior adopts circular involute air duct, High wind speed and low noise.
1. Automatic control, electronic interlocking, shower with double door locks, automatic shower with infrared sensor. The interior adopts a circular involute air duct with high wind speed and low noise.

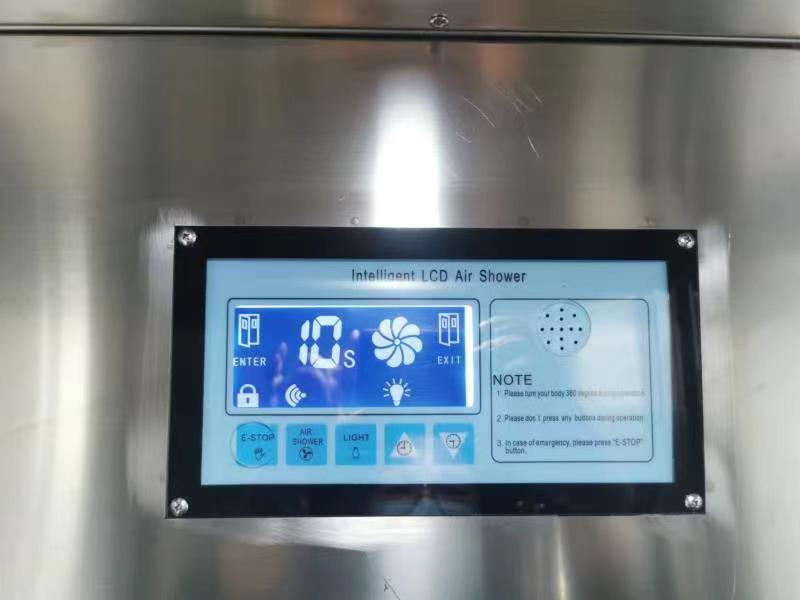

2. LED display and set blowing time, the range is adjustable from 0 to 99 seconds,

3. Stainless steel semi-glass door automatic door closer, transparent window,

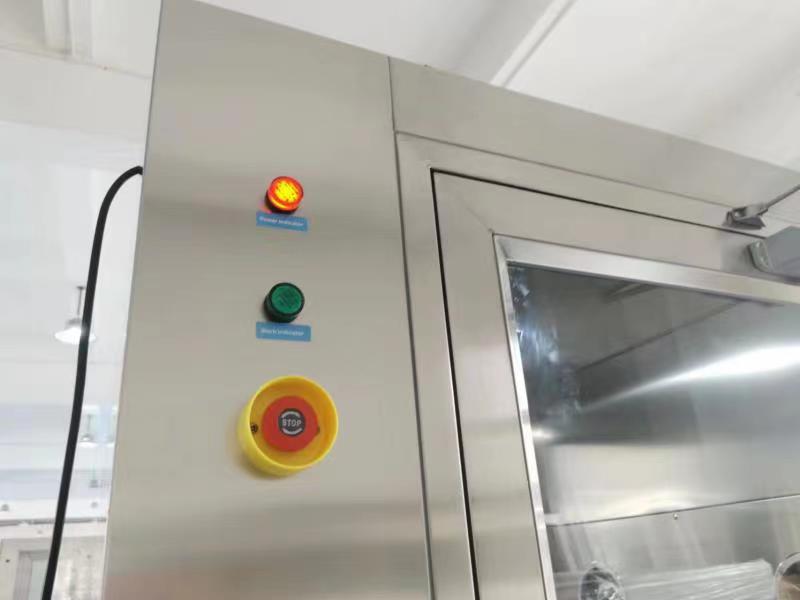

4. Humanized control panel design, clear indicator lights, and clear air shower process instructions at a glance.

5. High cleanliness and high wind speed: two-stage filtration system of primary filter and high efficiency filter is adopted,
No clapboard low resistance high efficiency filter, filtration efficiency: 99.99%, ensuring purification level.
All-stainless steel multi-angle adjustable nozzle, double volute outer rotor fan with large air volume and low noise,
The wind speed at the air outlet of the air nozzle can reach more than 25m/s, and the wind speed blowing to the human body is more than 18m/s.

6. High performance and high sealing: Imported electronic components are used, and the operation performance is stable and reliable.
Advanced noise reduction and mute device system, using EVA sealing material, with high airtight performance.

Product Image

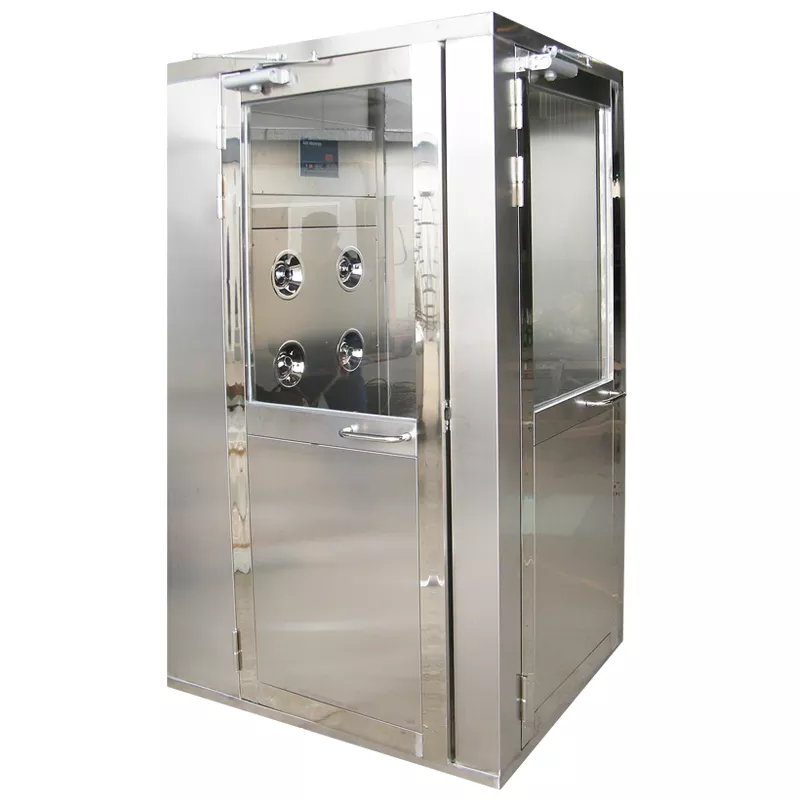

1-2 worker air shower room

Dimensions (L*W*H): 1290*1000*2050mm

Exterior Material: Powder Coated Steel or 304/201 Stainless Steel

Air shower time: 10-99S adjustable

Power: 1100W

Power supply: 380V

Locks: electrical interlock

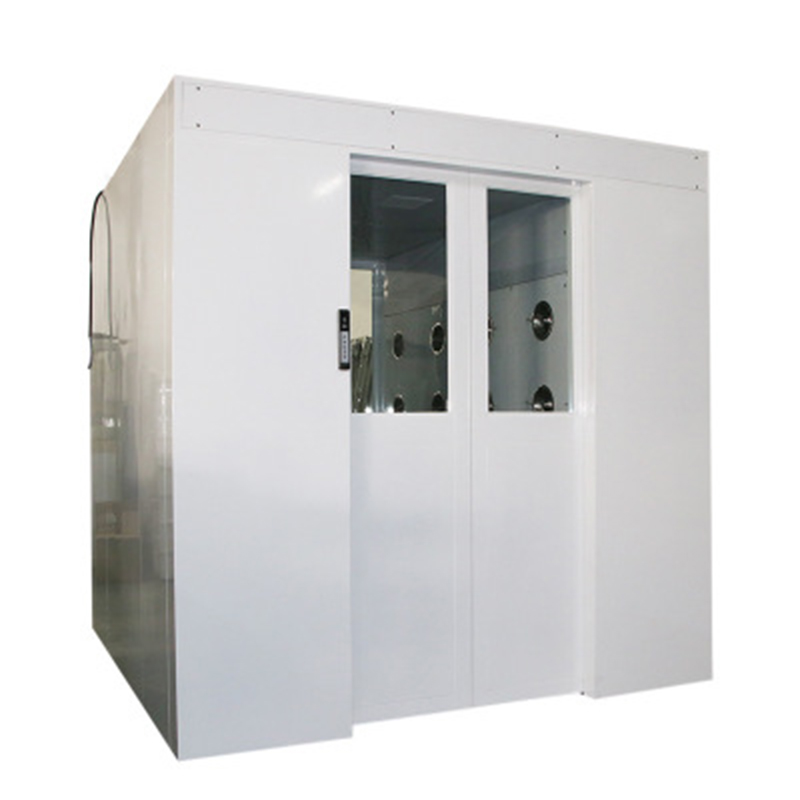

Double push-pull air shower

Dimensions (L*W*H): 1700*1000*2100mm

External material:Powder coated steel or stainless steel 304/201

Air shower time: 10-99S adjustable

Power: 1100W

Power supply: 380V

Lock: double door push-pull

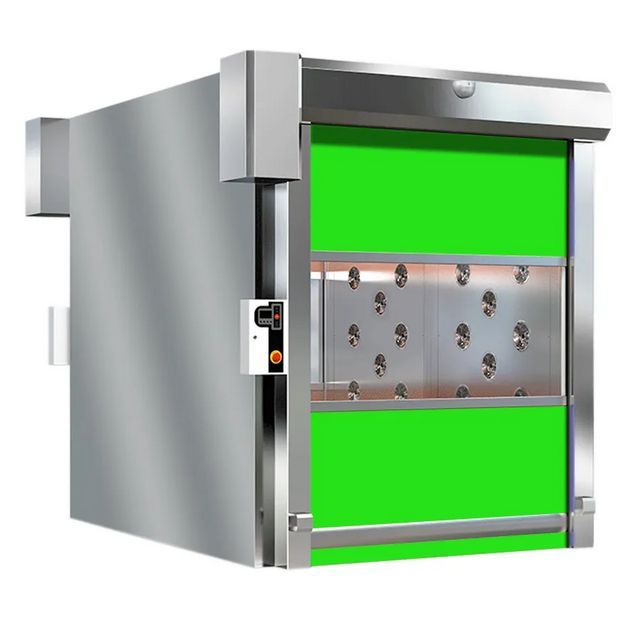

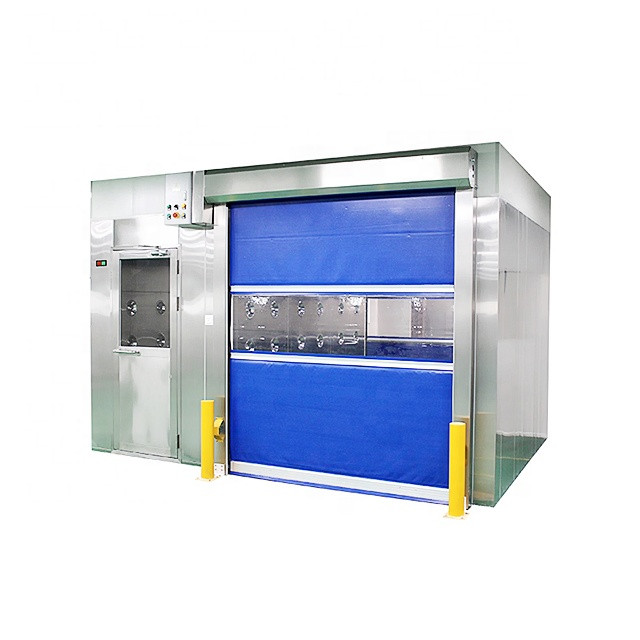

cargo air shower

Dimensions (L*W*H): 2000x2680x2500mm

Door material (optional): PVC

External material:Powder coated steel or 304 stainless steel

Wind shower time:10-99S adjustable

strength:3740W

Power supply: 380V

Lock:Electronic interlock
