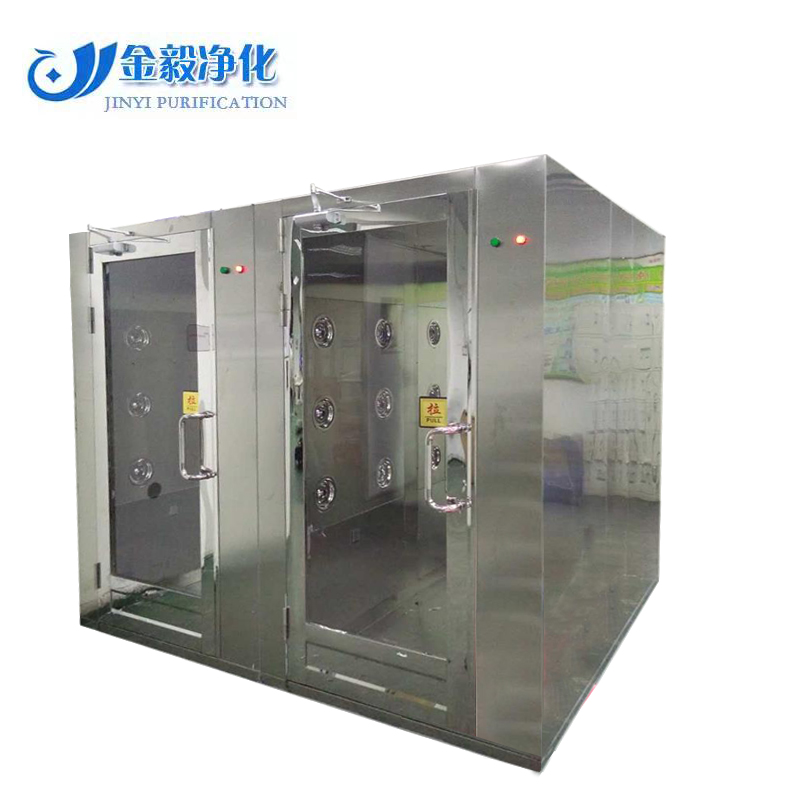

CE Standard Class 100 Clean Room Air Shower Air Shower Supplier Stainless Steel 304 201 Material

Supplier: Guangdong Jinyi Purification Technology Limited
Region: Guangdong, China
Contact: Ms Ashley Zhao
Price: $990.00 / 1 - 49 sets
$980.00 / 50 - 99 sets
$970.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

size:	Customized upon request	Warranty:	1 year
payment terms:	L/C,D/P,D/A,T/T	Health status:	new
Core components:	motor	feature:	long lasting
HEPA filter:	H13 or H14, 99.99%@0.3um or 99.995%@0.3um	Dimensions (LWH):	116010002050
Video external inspection:	if	nozzle:	12~48
Packaging Details:	Plywood/Export Plywood Case	Core Components Warranty:	1 year
Showroom location:	not any	Voltage:	220V/110V 50Hz
product name:	air shower	brand:	Brocade
Certification:	CE, RoHs, ISO	Mechanical test report:	if
place of origin; place of origin:	Guangdong, China	Supply capacity:	10000 sets per month
port:	Shenzhen or Guangzhou	weight:	300kg
strength:	1100W	Marketing Type:	New Products 2020
Material:	Stainless steel SUS304/201, baked	Air speed:	20-25m/s
Applicable industries:	Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Farms, Printing Plants, Construction Works, Energy and Mining, Food and Beverage Shops	Shower time:	1-99S (adjustable) default 10s
Packaging Preview:		power supply:	220V/110V 50Hz customized

Product Description

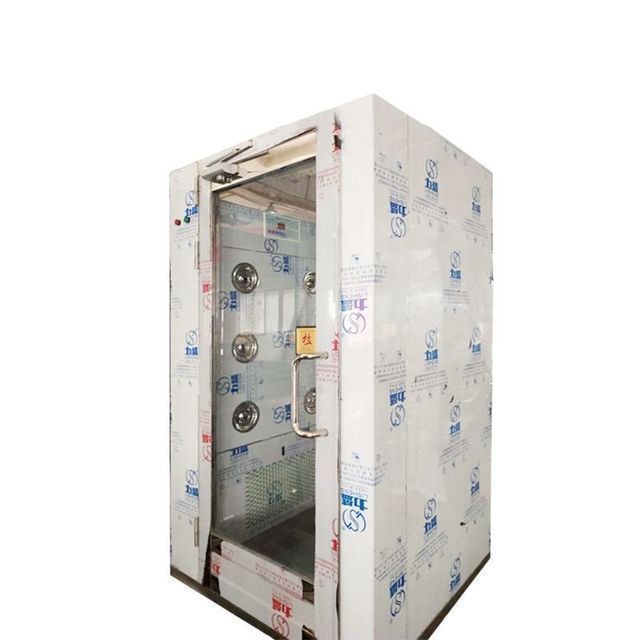

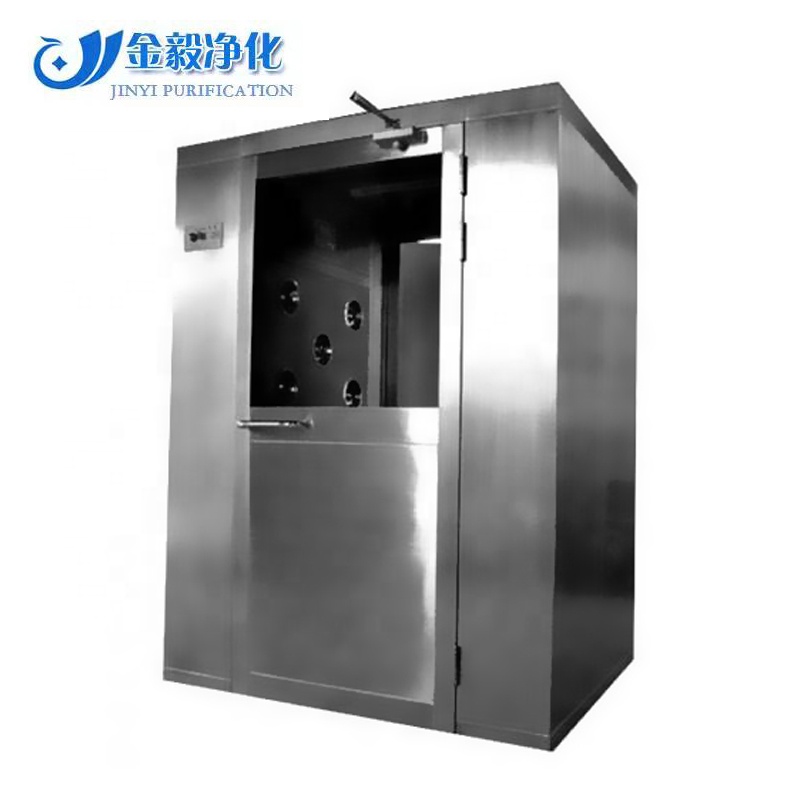

air shower

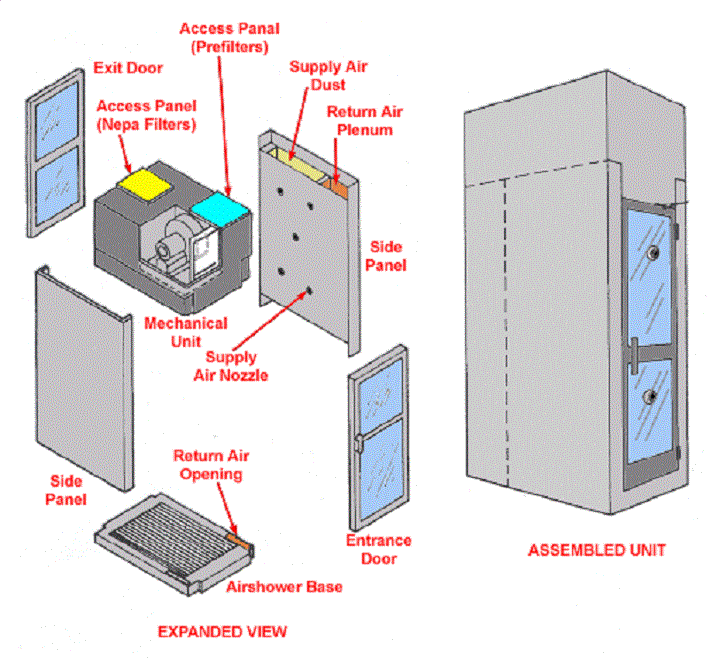

The air shower room is used to blow dust off clothes, equipment, materials and tools before workers or objects enter the clean room; at the same time, its Air Lock function can effectively control the entry and exit of personnel, as a buffer room at all levels of the clean room to prevent cross-contamination .

Model	JY-AR-1160	JY-AR-1500	JY-AR--2000	JY-AR-2500
Dimensions	116010002050	129015002050	139020002050	139025002050
Internal dimensions	79010001950	79015001950	79020001950	80025001950
power supply	AC 220V or AC 110V , 50/60Hz
power consumption	1100W	1500W	2200W	2500W
Number of nozzles	12	18 pcs	24	48
air speed	20-25m/s
Air shower time	0-99s adjustable, standard is 10s
High efficiency filter	H13 or H14, 99.99%@0.3um or 99.995%@0.3um
Material	SUS201, SUS304, baking paint optional
number of people	1-2	2-3	3-4	4-6
Comment	Specifications can be customized according to customer requirements

detailed image

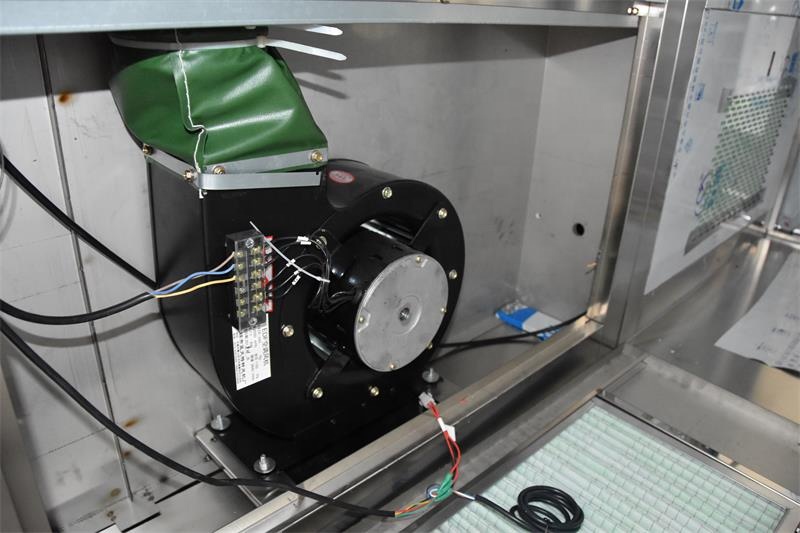

stainless steel nozzle blower

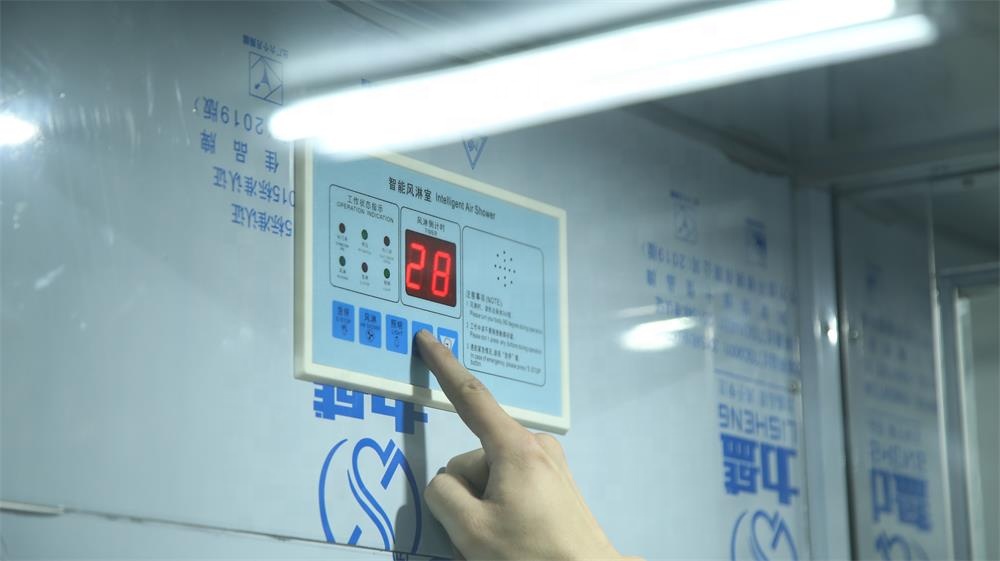

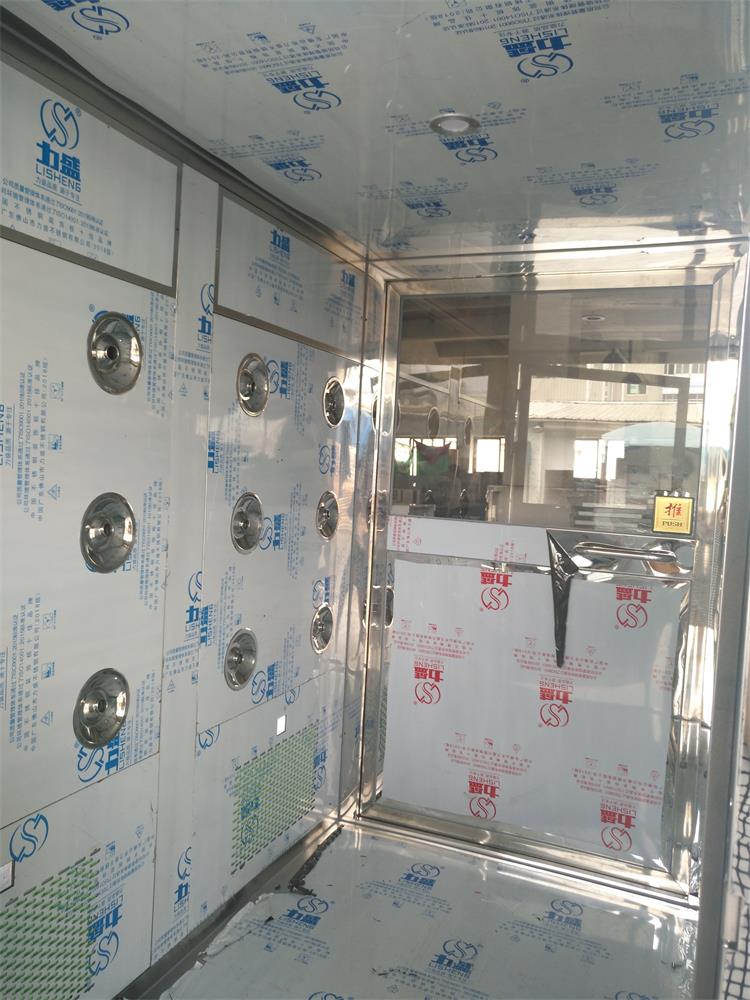

control panel Internal air shower

cargo air shower

Dimensions (L*W*H): 2000x2680x2500mm

Door material (optional): PVC

External material:Powder coated steel or stainless steel 304

Shower time:10-99S adjustable

strength:3740W

Power supply: 380V

Lock:Electronic interlock

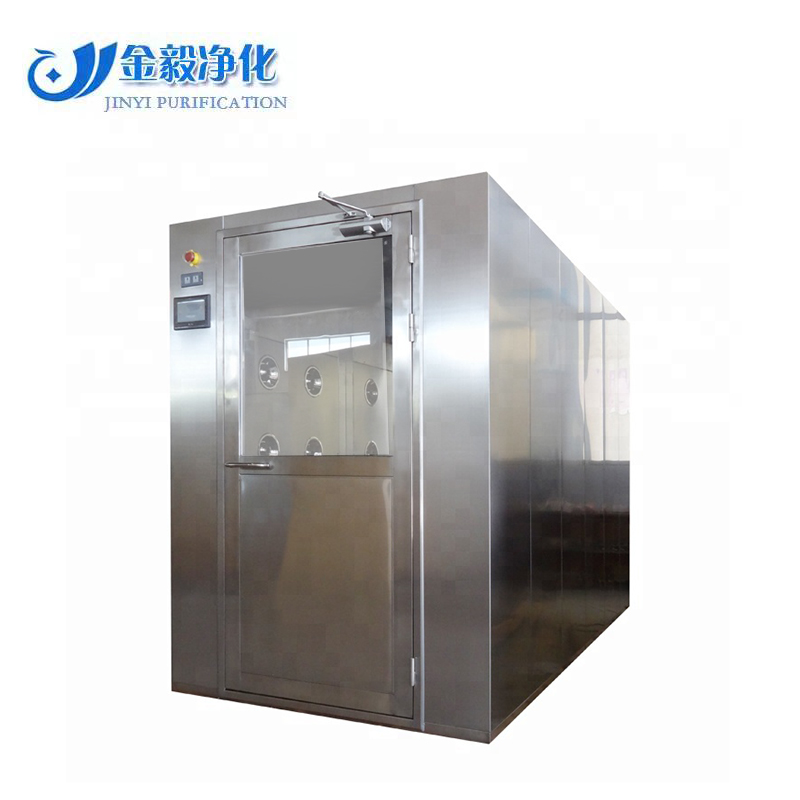

Double sliding air shower

Size (L*W*H): 1700*1000*2100mm

Exterior Material: Powder Coated Steel or Stainless Steel 304

Air shower time: 10-99S adjustable

Power: 1100W

Power supply: 380V

Lock: Double door sliding
