Selling Units: | Single item; | Desander Capacity: | 200 M3/H; |
Features: | Safe; | Desander Inlet Pressure: | 0.15~0.35 Mpa; |
Model Number: | TRQJ200X2S-100X8N; | Single gross weight: | 5 KG; |
Dimension: | 1835*1230*1810; | Delivery Detail: | 0 days after payment; |
Dimension(L*W*H): | 1835*1230*1810; | Production Capacity: | 15KW,20KW,30KW,37KW; |
Bottom Shaker: | GX/Z; | Desander Cyclone Size: | 250mm; |
Desander Separation Point: | 40~74mm; | Package Type: | API standard water proof cover inside and steel frame box outside, name sizes, weight will be marked on the package in different language; |
Warranty: | 1 Year; | Applicable Industries: | Manufacturing Plant,Energy & Mining; |
After-sales Service Provided: | Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,No after-sales service; | Voltage: | 0.25~0.4Mpa; |
Desilter Cyclone Size: | 100mm; | Place of Origin: | Sichuan China (Mainland); |
Single package size: | 183.5X123X181 cm; | Certification: | API; |
Condition: | New; | Rated Frequency: | 50/60; |
Weight: | 980kg; | Desander QTY& Material: | Polyurethane 2ea; |
Brand Name: | Gamboss; | Application: | Drilling Mud Cleaning System; |
Weight: | 980; |

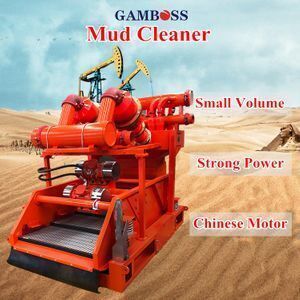

GAMBOSS free shipping world-class mud cleaner
GAMBOSS is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump,LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. .We have passed American Petroleum Institute(API),Norwegian DNV and American Bureau of Shipping(ABS) authoritative on-spot inspections.
GAMBOSS exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia,United States, Australia, Latin Americaand the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicists to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.
Model | TRQJ200X2S-100X8N | TRQJ250X2S-100X12N | TRQJ250X3S-100X20N | TRQJ300×2S-100×12N | |
Shale shaker | Capacity | 16 l/sec | 45 l/sec | 45 l/sec | 45 l/sec |
Grid working surface | 1.4m2 | 3 m2 | 3 m2 | 3 m2 | |
Quantity of grids | 2pieces | 4pieces | 4pieces | 4pieces | |
Type of grid | Flat Screen | Cassette | Cassette | Cassette | |
Regulation of the inclination angle of the frame | From -3 up to +3 degrees | From -3 up to +3 degrees | From -3 up to +3 degrees | From -3 up to +3 degrees | |
Quantity of motors | 2pieces | 2pieces | 2pieces | 2pieces | |
Motor Specification | 0.75kw, 1500 rpm, explosion protection | 1.7kw, 1500 rpm, explosion protection | 1.7kw, 1500 rpm, explosion protection | 1.7kw, 1500 rpm, explosion protection | |
Overflow height | 450mm | 850mm | 850mm | 850mm | |
Dimensions | 1835*1280*1200mm | 2900*1770*1330mm | 2900*1770*1330mm | 2900*1770*1330mm | |
Weight | 750kg | 1600kg | 1600kg | 1600kg | |
Desander | Cyclone Specs | 200mm | 250mm | 250mm | 300mm |
Cyclone Qty | 2 pieces | 2 pieces | 3 pieces | 2 pieces | |
Size of separated particles | 0.06mm | 0.07mm | 0.07mm | 0.08mm | |
Capacity | 33 l/sec | 66 l/sec | 88 l/sec | 69 l/sec | |
Desilter | Cyclone Specs | 100mm | 100mm | 100mm | 100mm |
Cyclone Qty | 8 pieces | 12 pieces | 20 pieces | 6×2 pieces | |
Size of separated particles | 0.04mm | 0.04mm | 0.04mm | 0.04mm | |
Capacity | 33 l/sec | 57 l/sec | 83 l/sec | 57 l/sec | |
Mud cleaner | Dimensions | 1835*1230*1810mm | 2985*1860*2210mm | 2985*1860*2210mm | 2985*1860*2210mm |
Weight | 980kg | 2250kg | 2400kg | 2300kg |
Payment term:
Trade term: EXW or FOB shanghai, CIF, DDU, CFR
Packing detail:
If there are plastic in it, steel frame will be packed outside
All of the productions are inspected carefully by QC before delivery.
Delivery time:
1. Warehouse machine: 1 days after 100% payment.
2. booked machine: 30-45days after 30% payment.
Welcome oversea rig manufacturer to cooperate with us.
