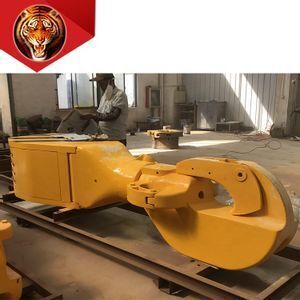

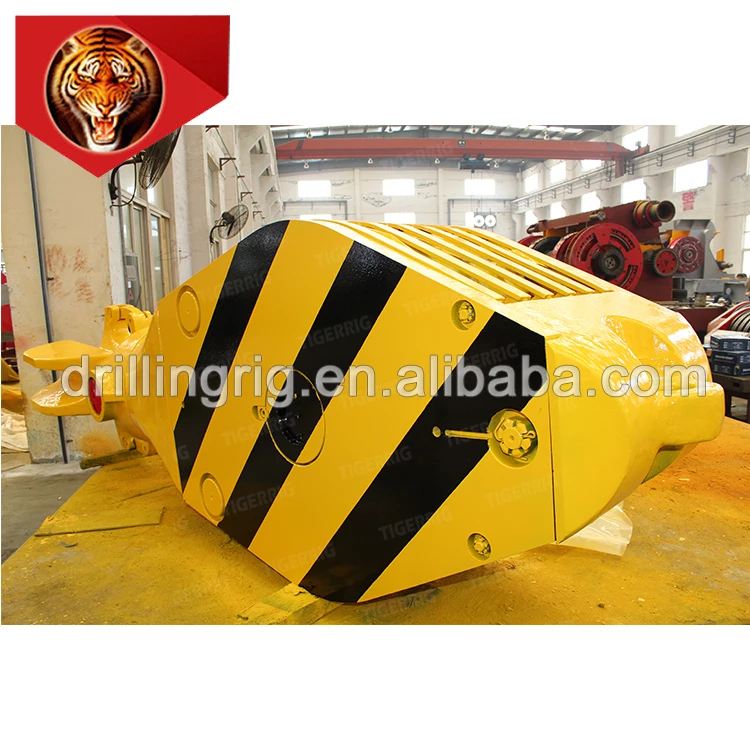

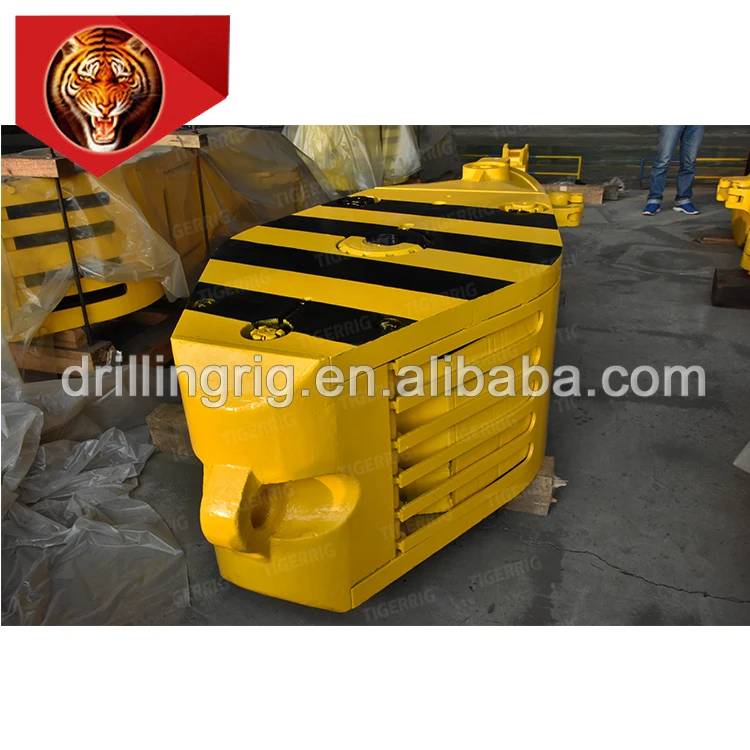

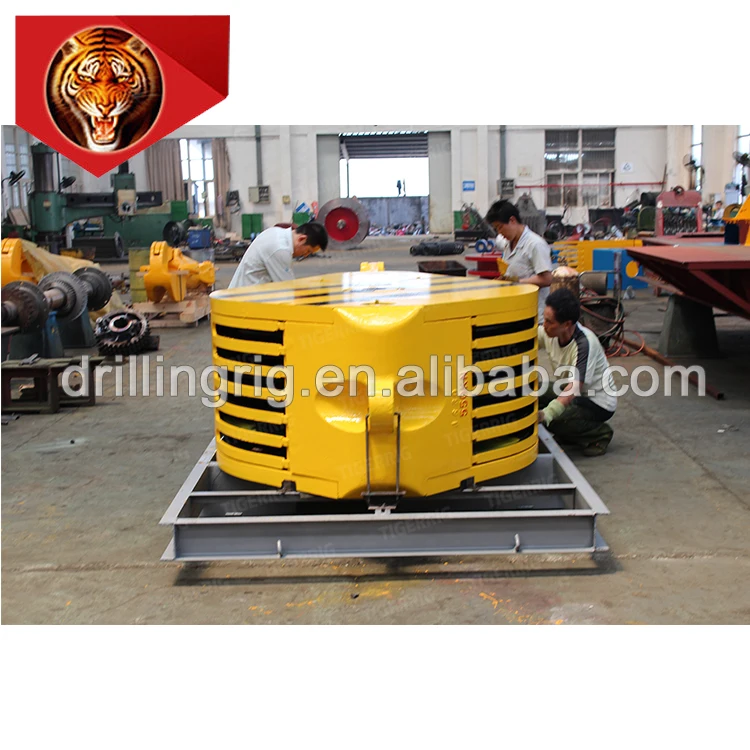

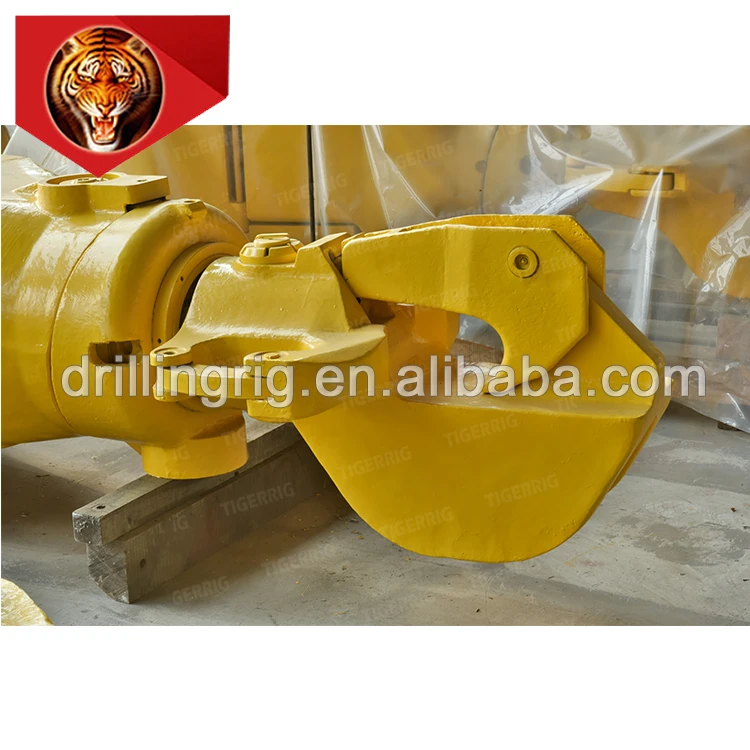

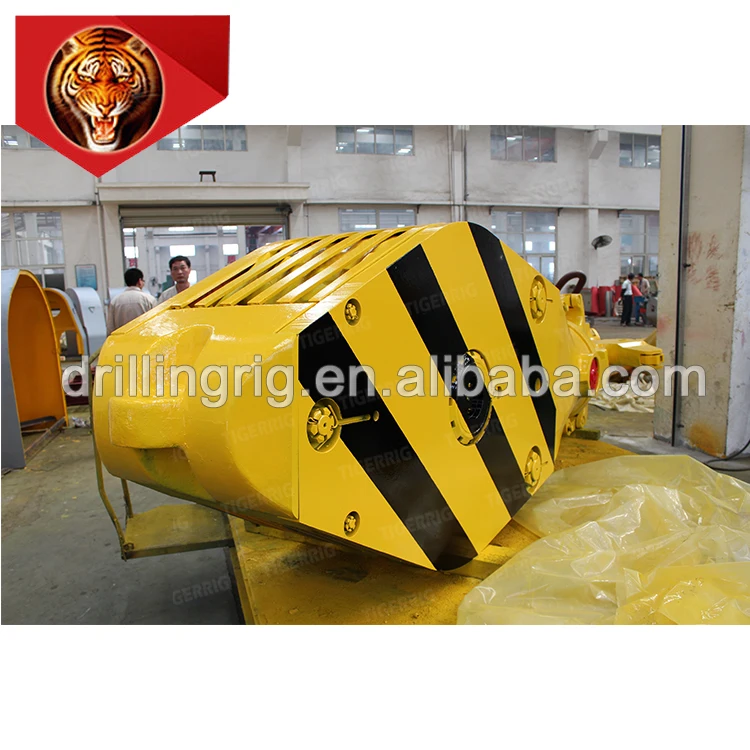

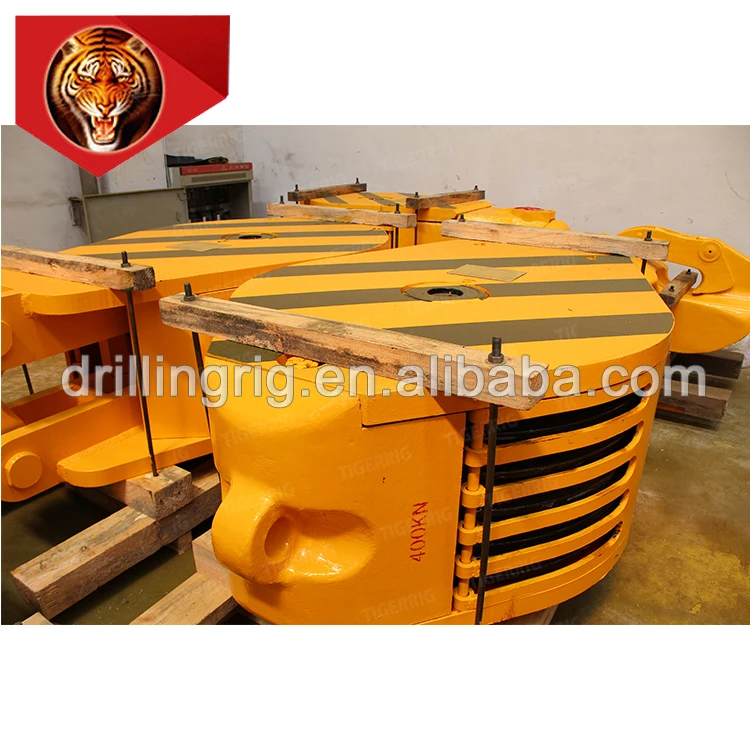

tiger rig high quality YG180 YG225 YG315 YG450 YG585 YG675 traveling block hook for drilling rig

Supplier: Chengdu Zhonghang Machinery Co., Ltd.
Region: Sichuan, China
Contact: Ms terry liu
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan,Malaysia,Australia;
Selling Units:	Single item;	Single gross weight:	3500.0 KG;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining,oilfield;	Brand Name:	tiger travelling block hook,Tiger Rig;
Marketing Type:	Ordinary Product;	Weight:	12530;
Product name:	traveling block and hook;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;
Package Preview:	;	Warranty of core components:	1 Year;
Type:	Rotary Drilling Rig;	Dimension(LWH):	48871600880mm;
Place of Origin:	Sichuan China;	Voltage:	380V;
Usage:	Oil Well;	Video outgoing-inspection:	Provided;
Condition:	New;	Warranty:	1 Year;
Color:	Yellow;	Core Components:	Bearing;
Machinery Test Report:	Provided;	Single package size:	488.7X160X88 cm;
Power Type:	Diesel;	Certification:	API;
Packaging Detail:	water proof;	use:	Oilwell Drilling;
Model Number:	YG180,YG225,YG315,YG450,YG585,YG675,YG180 YG225 YG315 YG450 YG585 YG675;

Tiger rig high quality YG180 YG225 YG315 YG450 YG585 YG675 traveling block hook for drilling rig

Specification

Specification of Traveling block and hook

Model		YG90	YG135	YG170	YG180	YG225	YG450
Max hook load	kN	900	1350	1700	1800	2250	4500
	US	100	150	200	200	250	500
	ton	100	150	200			500
Pulley O.D	mm	762	915	915	915	1120	1524
Pulley O.D	in	30	36	36	36	44	60
Pulley Qty		4	4	5	5	5	6
Wire rope Dia	mm	26	26	29	29	32	38
Wire rope Dia	in	1	1	1 1/8	1 1/8	1 1/4	1 1/2
Mainhook opening size	mm	155	165	180	180	180	220
Mainhook opening size	in	6 1/16	6 1/2	7	7	7	8 5/8
Main hook dia	mm	116	140	150	150	180	180
Main hook dia	in	4 1/2	5 1/2	6	6	7	7
Assistant hook dia	mm	80	90	90	90	0	120
Assistant hook dia	in	3 1/8	3 1/2	3 1/2	3 1/2	0	4 3/4
Size	mm	2908×806×533	3195×960×616	3294×960×713	3402×960×725	3610×960×775	4887×1600×880
Size	in	114×32×21	126×38×24	130×38×28	134×38×29	142×38×31	192×63×35
Weight	kg	2850	3590	4585	4594	6200	12530
Weight	Ib	6280	7910	10108	10120	13657	27620

Certificate

FAQ

1.How is your workflow?

We can confirm the specification and specification first, and then sign the sales contract and the drawings. Once the drawings are confirmed, we will take photos for you to confirm that the goods are new and in shipment before shipment. Please pay the balance before the machine leaves the factory, and then we will ship the machine to Shanghai.

2.How to deal with product quality problems?

We provide 24-hour online service, we give 24 hours online, skype: tiger-rig, urgent WeChat: +8618982250098,if there is an agent or branch, please ask our branch for help, such as in Russia, the United States, Dubai, the manager will come to your company or serve you by mobile, if there are technical questions, we will provide 12 hours online answers at 8:30-12:00, 14:00-18:00.

3.Are you plant or trade company?

We are plant, our address is: No.726, xingcheng road, Xindu Town, Sichuan Province, China,610500.

4.How can I get the quotation?

Please send your machine old brand, model, specification (such as power, rope size), nameplate photo to us, if u have tender document, ples also send to us, usually, we need to work on it for 1-2 days.

5.What are the brands can your machine interchanged with?

Our tiger rig hoisting equipment can be interchanged with Derrick, Miswaro, BOMCO, HONGHUA, KERUI, RG, SL-NOV. and so on. If your part number is different, we need to compare the photo or install size.

6.What is our delivery time?

Some of shale shaker, drilling fluid centrifuge, mud cleaner, sand pump, mud agitator is in stock supply, delivery time is 1 days after you make online payment in Alibaba. Book solid control machine delivery time is :7-35 days.

7.What about your work process?

We can confirm the manual and specification first, and then sign sales contract sign the drawing, once confirm the drawing, the before delivery, we will take photo for you to confirm the goods are new and shipping station, before machine leave factory, ples pay remain payment, then we truck machine to shanghai.
