Package Type: | API standard water proof cover inside and steel frame box outside, name sizes, weight will be marked on the package in different language; | Product name: | ZHP mixing hopper; |
Brand Name: | Gamboss; | Applicable Industries: | Manufacturing Plant,Energy & Mining; |
Single package size: | 190X40.5X91 cm; | Diameter of Inlet: | 125mm; |
Jet Speed: | 45m/s; | Inlet Head: | >=31; |
Warranty: | 1 Year; | Inlet Drainage: | 180; |
Certification: | API; | Condition: | New; |
Diameter of Out let: | 150mm; | Dimension(L*W*H): | 1900mm*405mm*910mm; |
Diameter of Hopper: | 705mm; | Motor Power: | 55kw; |
Single gross weight: | 10 KG; | Selling Units: | Single item; |
Weight: | 300kg / 150kg; | Place of Origin: | Sichuan China (Mainland); |
Dimensions(L*W*H): | 1518mm*708mm*989mm; | Package Preview: | https://sc02.alicdn.com/kf/HTB1B1r1c8Cw3KVjSZFuq6AAOpXaU.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1qHDRc3KG3KVjSZFLq6yMvXXa1.jpg_640x640.jpg; |
After-sales Service Provided: | Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,No after-sales service; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Delivery Detail: | 0 days after payment; | Voltage: | -; |

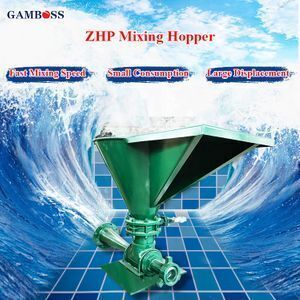

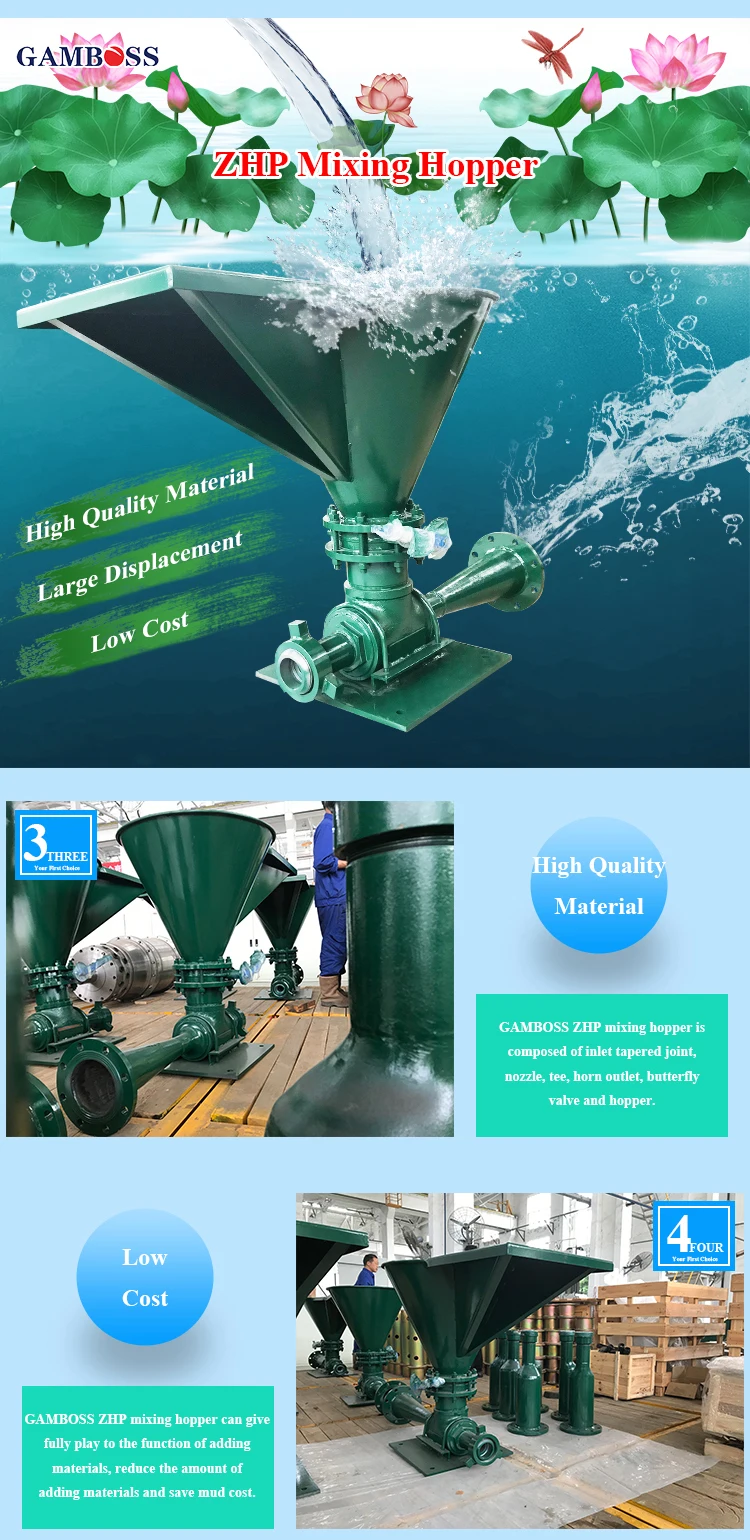

Gamboss ZHP Fast Mixing Speed Mixing Hopper
GAMBOSS is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump,LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. .We have passed American Petroleum Institute(API),Norwegian DNV and American Bureau of Shipping(ABS) authoritative on-spot inspections.
GAMBOSS exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia,United States, Australia, Latin Americaand the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicists to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.
Inlet Drainage | 180m3/h |
Inlet Head | ≥31m |
Diameter of Hopper | 705mm |
Diameter of Inlet | 125mm |
Diameter of Outlet | 150mm |
Jet Speed | 45m/s |
Motor Power | 55kw |
Solid-phase Mixing Speed | Barite not less than 300kg/min Bentonite not less than 150kg/min |

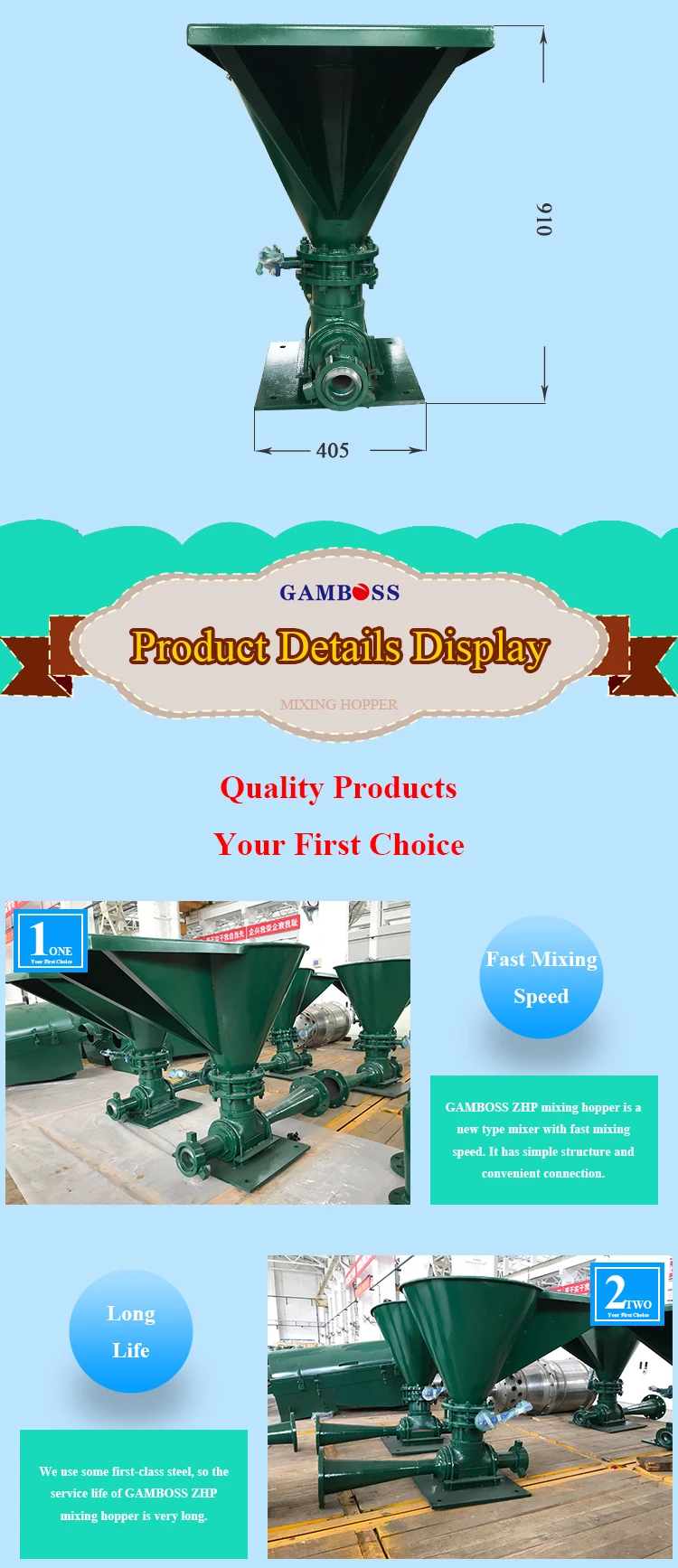

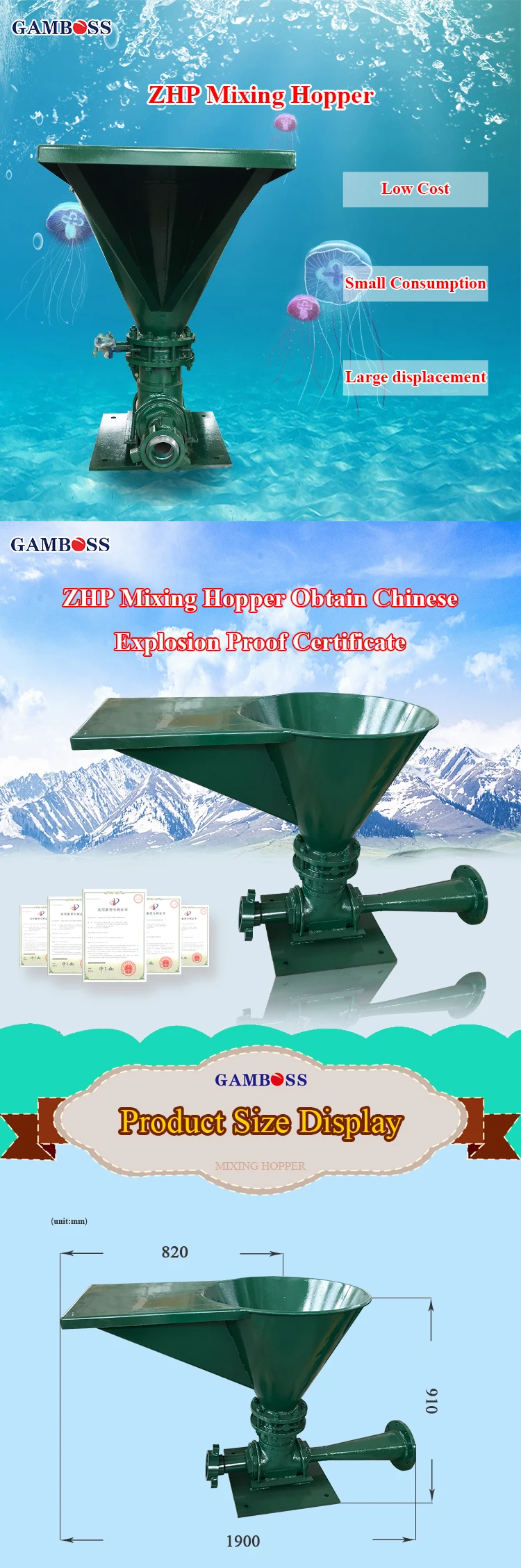

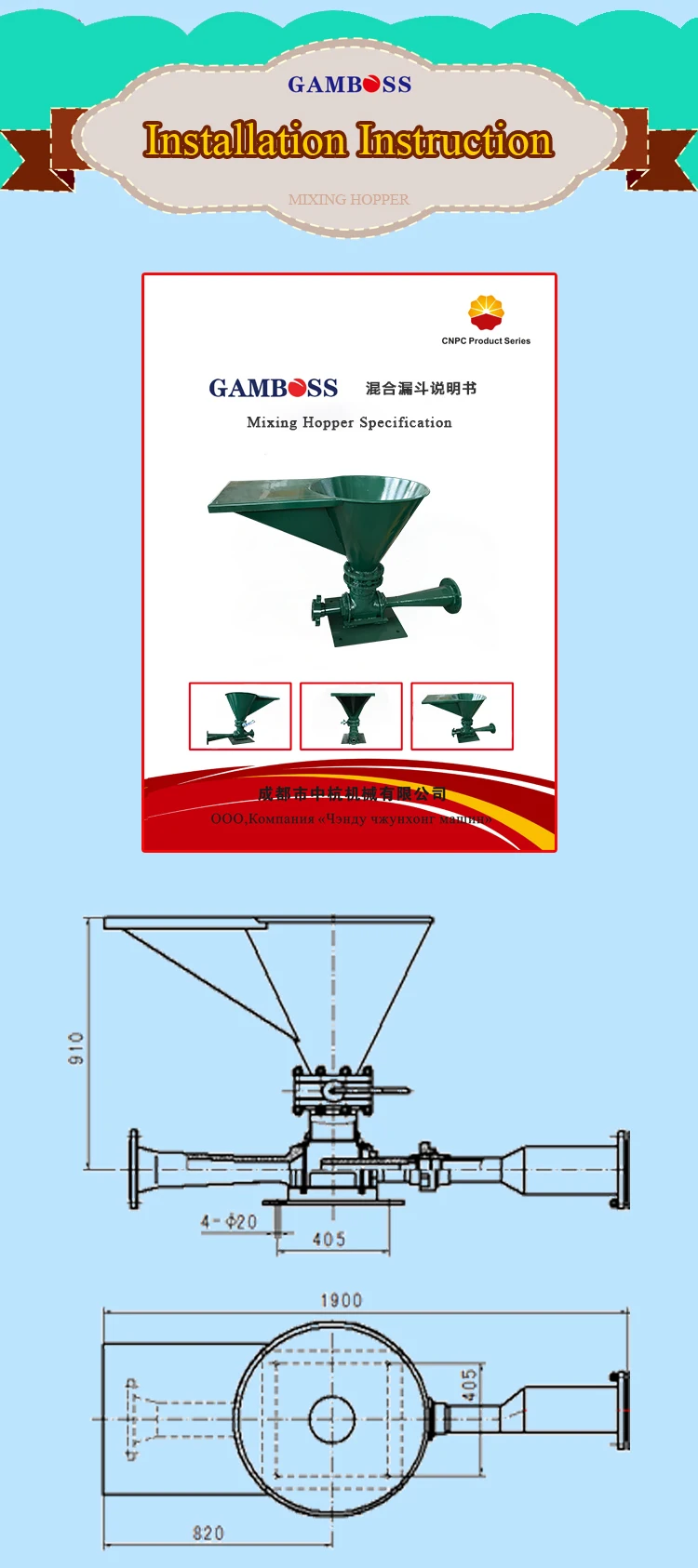

Dimensions (L×W×H) | 1900mm×405mm×910mm |
Payment term:
Trade term: EXW or FOB shanghai, CIF, DDU, CFR
Packing detail:
If there are plastic in it, steel frame will be packed outside
All of the productions are inspected carefully by QC before delivery.
Delivery time:
1. Warehouse machine: 1 days after 100% payment.
2. booked machine: 30-45days after 30% payment.
Welcome oversea rig manufacturer to cooperate with us.
