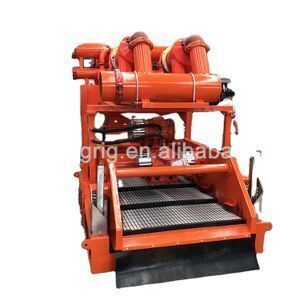

GAMBOSS High Efficiency API Standard Oil Well Drilling Rig Solid Control System Mud Cleaner For Solid Control Equipment

Supplier: Chengdu Zhonghang Machinery Co., Ltd.
Region: Sichuan, China
Contact: Ms terry liu
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Production Capacity:	20 sets/month;	Marketing Type:	New Product 2020;
After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Product name:	Mud Cleaner;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia;	Selling Units:	Single item;
Type of grid:	Cassette;	Grid working surface:	3 m2;
Brand Name:	GAMBOSS;	Warranty:	1 Year;
Packaging Detail:	API standard waterproof cover inside and steel frame box outside, name sizes, weight will be marked on the package in different language;	Voltage:	380V;
Capacity:	45 l/sec;	Single package size:	24X23X25 cm;
Warranty of core components:	1 Year;	Weight:	2300kg,2300kg;
Desilter Cyclone Size:	100mm;	Dimension(LWH):	298518602210;
Condition:	New;	Single gross weight:	24.0 KG;
Machinery Test Report:	Provided;	Certification:	API;
Key words:	water mud cleaner;	Color:	orange;
Model Number:	TRQJ300X2S-100X12N;	Application:	oil well drilling;
Package Preview:	;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Video outgoing-inspection:	Provided;	Place of Origin:	Sichuan China;
Features:	orange;	Dimension:	298518602210mm;
Quantity of motors:	2pieces;

GAMBOSSHigh Efficiency API Standard Oil Well Drilling Rig Solid Control System Mud Cleaner For Solid Control Equipment

Company Infomation

GAMBOSS is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump, LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. .We have passed American Petroleum Institute (API), Norwegian DNV and American Bureau of Shipping (ABS) authoritative on-spot inspections.

GAMBOSS exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.

Product Description

Main Characteristics:

1.Desander & Desilter & Shale Shaker 3 in one-unit mud cleaner for compact footprint.

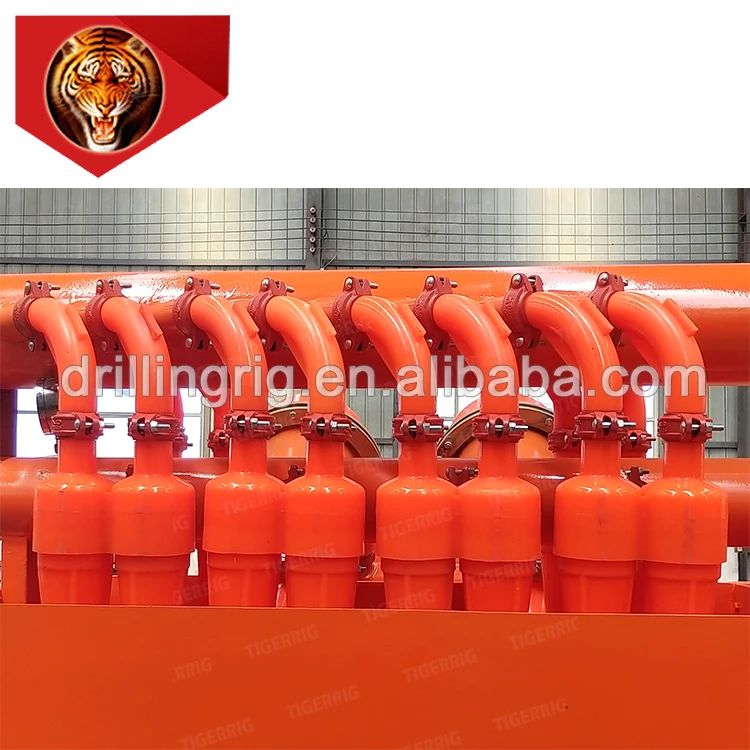

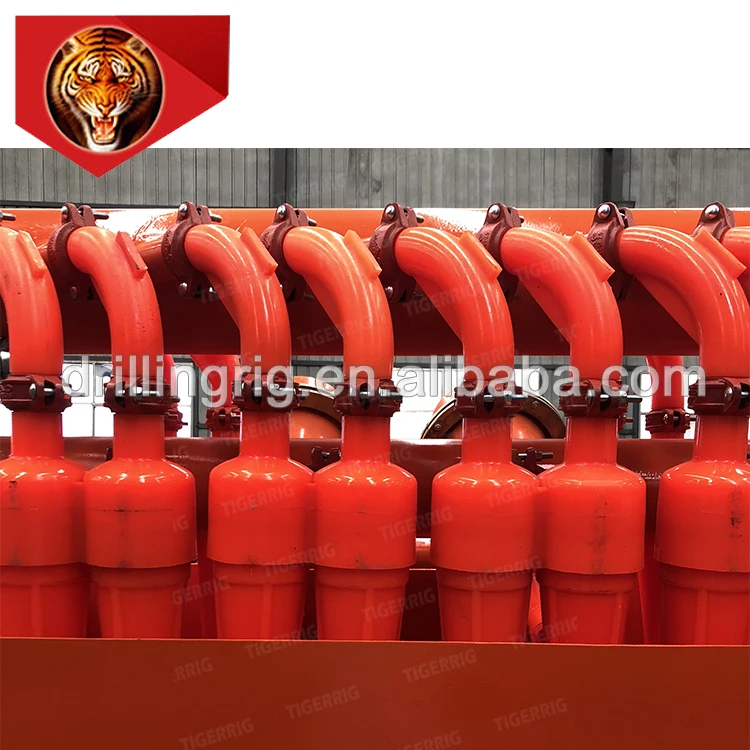

2.Polyurethane Material hydro cyclone for long life

3.Removable hydro cyclone assembly from mud cleaner skid for adjust to be a shale shaker.

4.Patent electric shaker deck angle adjustable while working, mechanical deck angle adjustment for backup application.

5.Patent tighten rubber sealing for mud cleaner shaker deck and screen for fine screen

Specification

Model	ZJ703E-D1S8N	ZJ703E-2S12N	ZJ594E-2S12N	ZJ703E-3S16N	ZJ594E-3S16N
Capacity	120m3/h(528GPM)	240m3/h(1056GPM)		360m3/h(1584GPM)
Desander Size	10 Inch
Desander Qty	1pcs	2pcs		3pcs
Desilter Size	4 Inch
Desilter Qty	8pcs	12pcs		16pcs
Working Pressure	0.25~0.4Mpa
Feeding Size	6 Inch
Output Size	8 Inch
Bottom Shale Shaker Specs
Shaker Model	GNZS703E		GNZS594E	GNZS703E	GNZS594E
Vibration Mode	Linear Motion

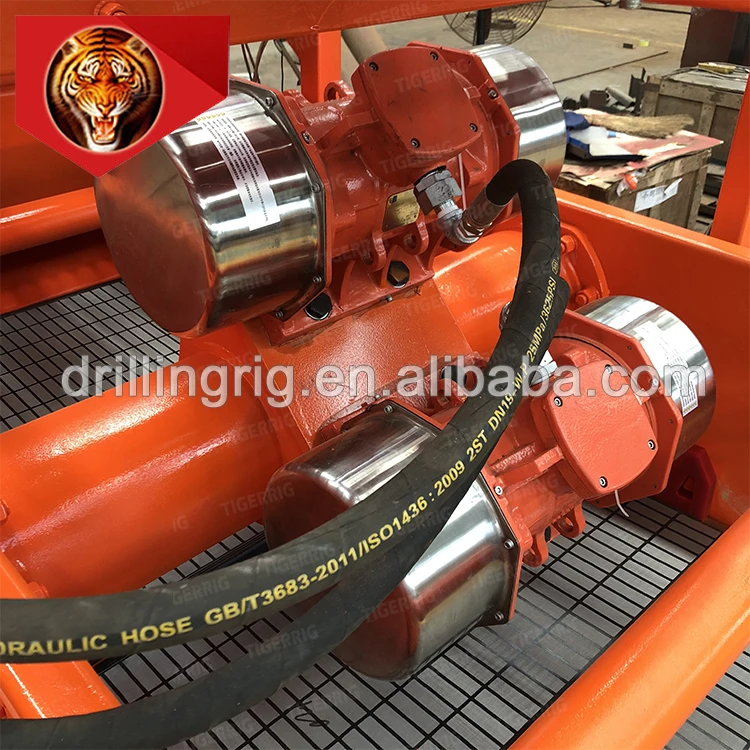

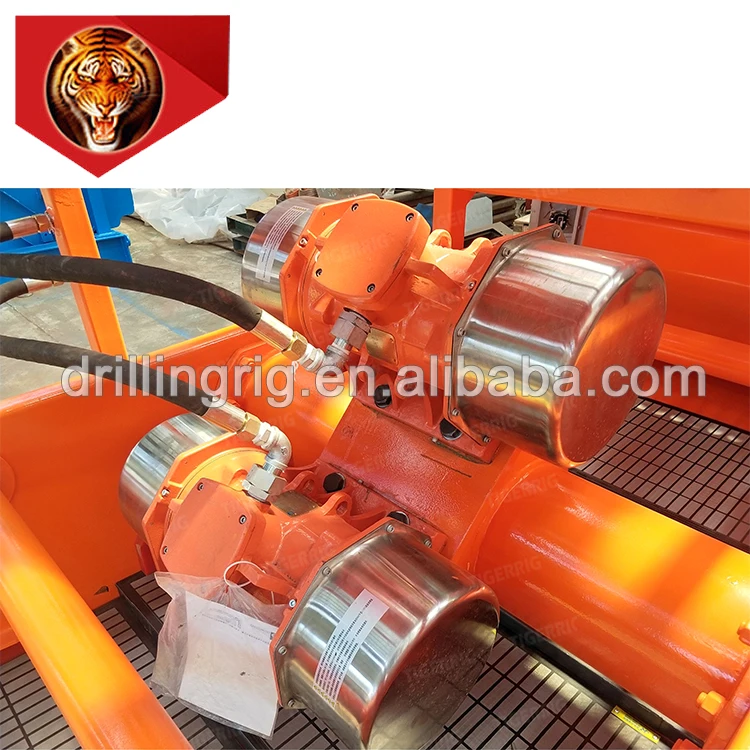

Vibration Motor	2×1.72Kw
Screen Qty	3pcs		4pcs	3pcs	4pcs
Screen Size	700×1250mm		585×1165mm	700×1250mm	585×1165mm
Screen Area	2.63m2		2.73m2	2.63m2	2.73m2
Adjust G Force	≤7.5G
Vibration Amplitude	4.14~5.96mm
Deck Angle Range	-1°~+5° (Eletric & Mechanical)
EX Standard	ExdIIBt4 / IEC EX/ ATEX
Weight (Kg)	2071	2296	2343	2393	2440
Dimension(mm)	2419×2113×1848	2419×2113×2147	2639×2113×2147	2419×2113×2147	2639×2113×2147

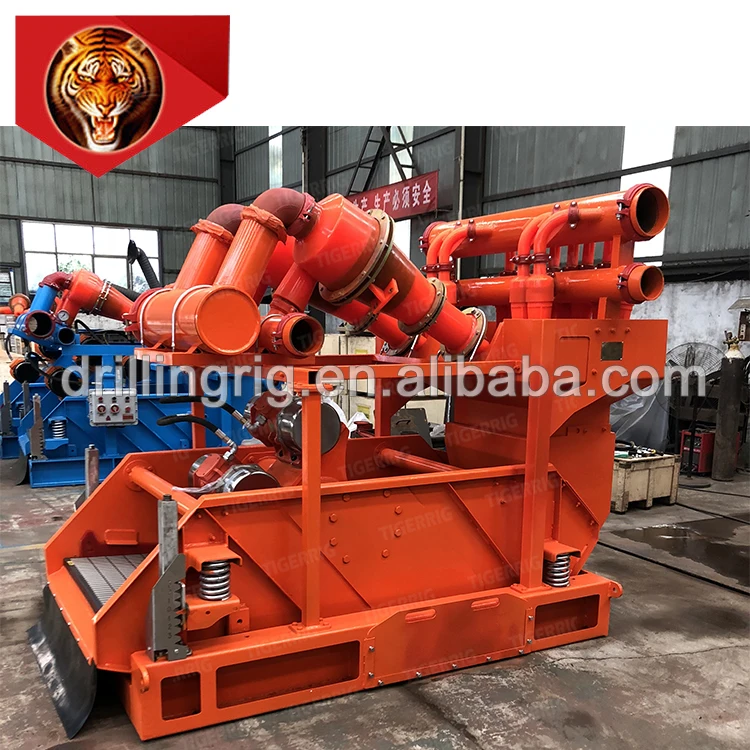

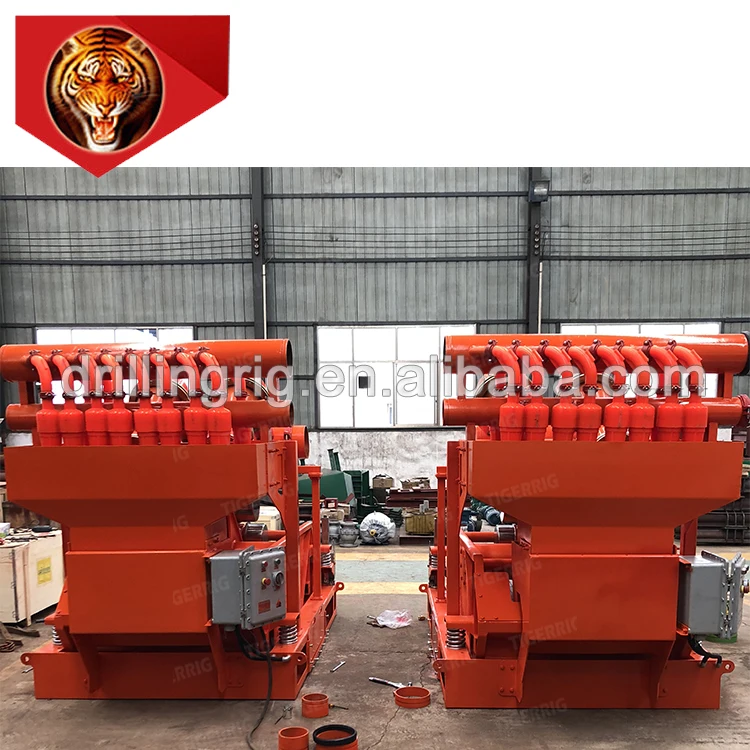

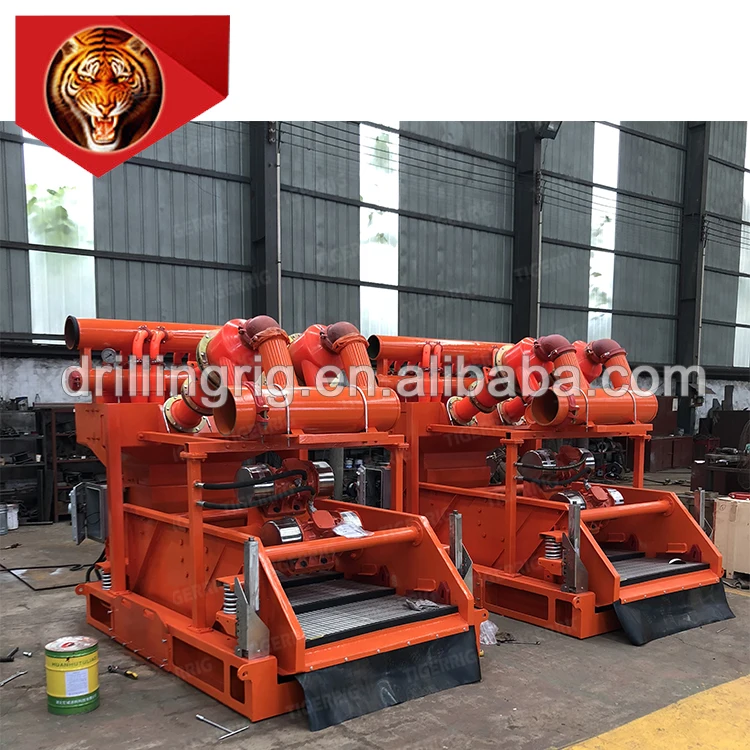

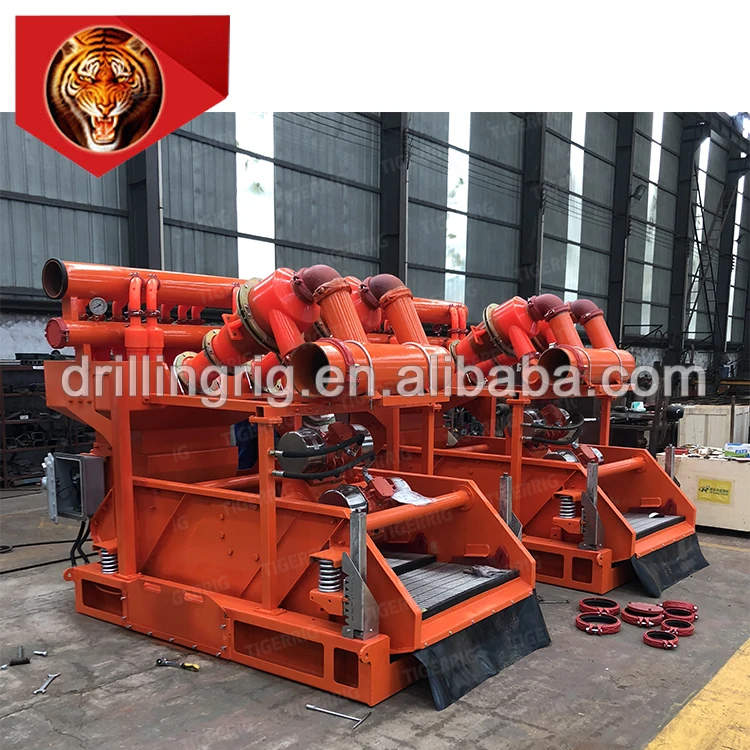

Product pictures

Our Services

Our service:

1.we can reply within 3 hours after receiving the inquiry.

2.we give 24 hours online, skype: tiger-rig, urgent WeChat: +8618982250098

3. We have professional translators (Russian, Spanish, Arabic, English, etc.)

4. We will complete the quotation within one to two weeks.

5. The product warranty period is one year.

6. We will provide a competitive price according to different bidding requirements.

What you need to do?

1. Provide the original bidding documents for our review and translation (preferably in Excel or word format, the documents in picture format may affect the processing speed)

2. Provide company information including name, address and website for our review.

3. Our industry tends to pay by T / T, and L / C and D/P, T/T is considered first.

4. Please let us know the bid closing time so that we can be well prepared

5. Leave the contact information of communication software such as WeChat, WhatsApp.

FAQ

1.Are you plant or trade company?

We are plant, our address is: No.726, xingcheng road, Xindu Town, Sichuan Province, China,610500.

2.How can I get the quotation?

Please send your machine old brand, model, specification (such as power, rope size), nameplate photo to us, if u have tender document, ples also send to us, usually, we need to work on it for 1-2 days.

3. what are the brands can your machine interchanged with?

Our tiger rig hoisting equipment can be interchanged with American and made in china brand. and so on. If your part number is different, we need to compare the photo or install size.

4.what is our delivery time?

Some of shale shaker, drilling fluid centrifuge, mud cleaner, sand pump, mud agitator is in stock supply, delivery time is 1 days after you make online payment in Alibaba. Book solid control machine delivery time is :7-35 days.

5.what about your work process?

We can confirm the manual and specification first, and then sign sales contract sign the drawing, once confirm the drawing, the before delivery, we will take photo for you to confirm the goods are new and shipping station, before machine leave factory, ples pay remain payment, then we truck machine to shanghai.

6.Once the products have the quality problem how to deal with?

We give 24 hours online service, please call +8618982250098 , if there is agent or branch, please also ask the help from our branch, such as in Russia, America, Dubai, and the manager will come to your site, if technical problem we will give 12 hours online answer from 8:30-12:00, 14:00-18:00.

7. Can I be your tiger agent in our country?

Answer: We are developing agents all over the world; you can sign agency agreement with us.

8. What is the warranty time of your products?

The warranty time is 12 months from the date of the commissioning. After the warranty, any questions and needs, please contact us.
