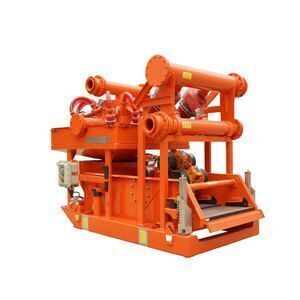

GAMBOSS Advanced Design Long Service Life Solid Control System Mud Cleaner For Oil Well Drilling Rig

Supplier: Chengdu Zhonghang Machinery Co., Ltd.
Region: Sichuan, China
Contact: Ms terry liu
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining;	Packaging Detail:	API standard waterproof cover inside and steel frame box outside, name sizes, weight will be marked on the package in different language;
Color:	orange;	Machinery Test Report:	Provided;
After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Warranty:	1 Year;
Production Capacity:	20 sets/month;	Application:	oil well drilling;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia;	Desilter Cyclone Size:	100mm;
Weight:	2300kg,2300kg;	Grid working surface:	3 m2;
Marketing Type:	New Product 2020;	Quantity of motors:	2pieces;
Features:	orange;	Condition:	New;
Warranty of core components:	1.5 years;	Brand Name:	GAMBOSS;
Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;	Product name:	Mud Cleaner;
Type of grid:	Cassette;	Dimension(LWH):	317018501585;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Place of Origin:	Sichuan China;
Certification:	API;	Voltage:	380V;
Single gross weight:	24.0 KG;	Single package size:	24X23X25 cm;
Selling Units:	Single item;	Model Number:	ZQJ/Z 2502-10014-I;
Capacity:	45 l/sec;	Package Preview:	;
Dimension:	298518602210mm;	Key words:	water mud cleaner;
Video outgoing-inspection:	Provided;

GAMBOSS Advanced Design Long Service Life Solid Control System Mud Cleaner For Oil Well Drilling Rig

Company Infomation

GAMBOSS is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump, LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. .We have passed American Petroleum Institute (API), Norwegian DNV and American Bureau of Shipping (ABS) authoritative on-spot inspections.

GAMBOSS exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.

Product Description

Main Characteristics:

1.Desander & Desilter & Shale Shaker 3 in one-unit mud cleaner for compact footprint.

2.Polyurethane Material hydro cyclone for long life

3.Removable hydro cyclone assembly from mud cleaner skid for adjust to be a shale shaker.

4.Patent electric shaker deck angle adjustable while working, mechanical deck angle adjustment for backup application.

5.Patent tighten rubber sealing for mud cleaner shaker deck and screen for fine screen

Specification

Model	ZQJ/Z 250×2-100×14-Ⅰ	ZQJ/Z 250×2-100×10-Ⅰ
Rated Frequency	50/60	50/60
Desander Cyclone Size	Φ250mm	Φ250mm
Desander Separation Point	40~74ΜM	40~74ΜM
Desander QTY& Material	Polyurethane 2ea	Polyurethane 2ea
Desander Capacity	200 M³/H	200 M³/H
Desander Inlet Pressure	0.15~0.35 Mpa	0.15~0.35 Mpa
Desilter Cyclone Size	Φ100mm	Φ100mm
Desander Separation Point	20~44ΜM	20~44ΜM
Desilter Capacity	155 M³/H.	115 M³/H.
Desander Inlet Pressure	0.25~0.45.	0.25~0.45.
Desander Separation Point	44~74ΜM	15-44ΜM
Desander QTY& Material	Polyurethane 14ea	Polyurethane 10ea
Bottom Shaker	GX/Z	GX/Z
Dimension	3260x2040x2530mm	3260x2040x2530mm
Weight	3515kg	3455kg

Product pictures

Our Services

Our service:

1.we can reply within 3 hours after receiving the inquiry.

2.we give 24 hours online, skype: tiger-rig, urgent WeChat: +8618982250098

3. We have professional translators (Russian, Spanish, Arabic, English, etc.)

4. We will complete the quotation within one to two weeks.

5. The product warranty period is one year.

6. We will provide a competitive price according to different bidding requirements.

What you need to do?

1. Provide the original bidding documents for our review and translation (preferably in Excel or word format, the documents in picture format may affect the processing speed)

2. Provide company information including name, address and website for our review.

3. Our industry tends to pay by T / T, and L / C and D/P, T/T is considered first.

4. Please let us know the bid closing time so that we can be well prepared

5. Leave the contact information of communication software such as WeChat, WhatsApp.

FAQ

1.Are you plant or trade company?

We are plant, our address is: No.726, xingcheng road, Xindu Town, Sichuan Province, China,610500.

2.How can I get the quotation?

Please send your machine old brand, model, specification (such as power, rope size), nameplate photo to us, if u have tender document, ples also send to us, usually, we need to work on it for 1-2 days.

3. what are the brands can your machine interchanged with?

Our tiger rig hoisting equipment can be interchanged with American and made in china brand. and so on. If your part number is different, we need to compare the photo or install size.

4.what is our delivery time?

Some of shale shaker, drilling fluid centrifuge, mud cleaner, sand pump, mud agitator is in stock supply, delivery time is 1 days after you make online payment in Alibaba. Book solid control machine delivery time is :7-35 days.

5.what about your work process?

We can confirm the manual and specification first, and then sign sales contract sign the drawing, once confirm the drawing, the before delivery, we will take photo for you to confirm the goods are new and shipping station, before machine leave factory, ples pay remain payment, then we truck machine to shanghai.

6.Once the products have the quality problem how to deal with?

We give 24 hours online service, please call +8618982250098 , if there is agent or branch, please also ask the help from our branch, such as in Russia, America, Dubai, and the manager will come to your site, if technical problem we will give 12 hours online answer from 8:30-12:00, 14:00-18:00.

7. Can I be your tiger agent in our country?

Answer: We are developing agents all over the world; you can sign agency agreement with us.

8. What is the warranty time of your products?

The warranty time is 12 months from the date of the commissioning. After the warranty, any questions and needs, please contact us.

Factory
