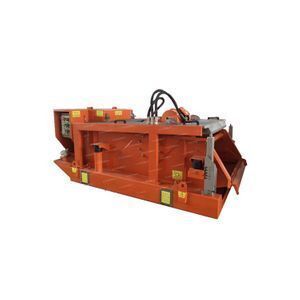

High performance Linear Elliptical Motion Shale Shaker

Product details
Voltage:380V/50HZ;Screen Mesh Number:160~310;
Certification:API;Applicable Industries:other;
Max. Vibration Amplitude(mm):6.8 6.5 7.0;Condition:New;
Application:Oil Filed;Rated Voltage(V):380/460;
Production Capacity:210 m3-220m3;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:Engineers available to service machinery overseas;Port:shanghai;
Product name:Linear Motion Shale Shaker;Model Number:GX/S-I GX/S-II GX-BP;
Obliquity Adjustment:-3°~+5°;Warranty:18 Months;
Vibration Intensity(G):≤8.2;Dimension(L*W*H):2976*1680*1253mm;
Brand Name:Gamboss;After-sales Service Provided:Field installation, commissioning and training;
Weight:2050kg;Packaging Detail:Water proof cover for machine;
Screen Qty:4;Place of Origin:Sichuan China;
Vibration Types:Linear/Elliptical Motion;Supply Ability:50 Set/Sets per Day;
Features:Long Working Life;

        Linear Elliptical Motion Shale Shaker



Company Information



GAMBOSS is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump,LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. . GAMBOSS exported directly or sold with supporting drillers to more than 30 countries and regions in the word such as Russia,US, Austrilia, Latin America and the Middle East ect. . To provide customers with a full set of solid-control eqiupment solutions effectively is our company’s goal.











specification









Type

GX/S-I

GX/S-II

GX-BP

Vibration Types

Linear/Elliptical Motion

Linear/Elliptical Motion

Linear/Elliptical Motion

Max.Vibration Amplitude(mm)

6.8

6.5

7.0

Excitation Engine(Kw)

2*2.1+1*1.0

2*1.72+1*0.75

2*1.72+1*0.75

Screen Specification(mm)

1165*585*40

1165*585*40

1165*585*40

Screen Qty

4

4

4

Screen Mesh Number

160~280

160~280

160~310

Max. Capacity(m3/h)

216

216

220

Vibration Intensity(G)

≤8.2

≤7.8

≤8.0

Obliquity Adjustment

-3°~5°

-3°~5°

-3°~5°

Rated Voltage(V)

380/460

380/460

380/460

Rated Frequency(Hz)

50/60

50/60

50/60

Explosion-proof Grade

ExdIIBT4

ExdIIBT4

ExdIIBT4

Protection Grade

IP55

IP55

IP55

Weight(kg)

2050

2000

2030

Overall Dimension(L×W×H)

2976*1680

*1253mm

2976*1680*

1233mm

2976*1680*

1233mm

FAQ



1. Are you a manufacturer or a trading company?

We are manufacturer in China, and we are CNPC subordinate units. We are professional in solids control equipment manufacturing more than 20 years.



2. How long is the warranty of your products?

The warranty is 12 months after install at site or 18 months after machine leaving factory. Our machine service life is more than 10 years as USA quality.



3. What kind of service u can provide?

 We can give 24hrs online services and 1hurs fast feedback, please add our tiger manger sky or whatsapp

Once u buys our machine, we can give square parts supply more than 20years.
