RichAuto CNC keyboard controller 3 axis price

Product details
Dimension(L*W*H):18.4cm*11cm*3cm;Warranty:1 year;
Interface:USB;Selling Units:Single item;
Single package size:18X15X3 cm;Display screen:128*64 Monochrome LCD;
Function:Wood Cnc Router;Product Name:RichAuto CNC keyboard controller 3 axis price;
Axis:3 Axis;Include parts:1hand controller+USB wire+power line;
driving system:step motor/servo motor;Condition:New;
Certification:CE;Single gross weight:1 KG;
Application:cnc carving router machine;Communication Port:U disk,USB cable;
Internal memory:512MB;Place of Origin:Beijing China;
Brand Name:RichAuto;Weight:1kg;
Package Type:carton box;

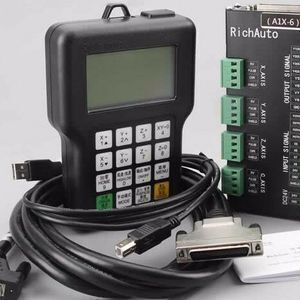

RichAuto CNC keyboard controller 3 axis price

Product Description



1.       High performance core processing CPU: The eight nuclear processing CPU, faster calculation, stronger processing ability.

2.       Simple handle structure with buttons controls: 16 buttons operation mode, comfortable hand-held end, easy to learn easy to use, simple and quick.

3.       Multiple data transmission, large storage capacity support: Completely off-line operation and support a variety of mobile storage transmission methods; 512MB internal memory, can read large capacity storage mobile device.

4.       Intelligent reading processing documents function: AutoNow series products is more smart in proof reading of the processing documents, to new processing files, only reading before the first time operation. And in the process of reading, it can also skip checking according to customers’ demands which save the users’ valuable time in great degree.

5.       Intelligent memory function: support power lost and breakpoint processing; not only storage the process position, but also memory the file name, ensure user continue processing from breakpoint quickly & accurately.

6.       Two kinds of processing mode choice: high precision mode and to ensure the machining precision and quality of high speed mode, that ensure the process efficiency, saving processing time.

7.       Security checking & alarm: Add security warning system and abnormal reminder functions, such as back to zero abnormal shaft mark, distance mode mobile safety tips, processing beyond the function such as display, greatly guarantee the accuracy and consistency processing.

8.       More perfect encryption functions: Hardware encryption, set parameters encryption, running time of encryption and the internal important processing file encryption, and other functions, the modification, prevent delete prevent copying, and to ensure the customers’ technical information and assets safe.

9.       Anti-jamming performance ids greatly increased: Though some CE test, anti-jamming greatly improved.

10.   Department stronger: AutoNow based version 8 series of 8 out into the support I/O mouth custom editing functions, the user can completely according to their own needs editing and defined, and may expand to 32 input 32 output; Based on 8 nuclear processing CPU,  but also for secondary development, for the customer equipments of the special function, special purpose to add, meet the needs of different industries, with period is short, the cost is low, the secrecy id good wait for a characteristic.





Features



l  New three-axis linkage motion mode to achieve comprehensive controlling

l  Support drive and spindle error alarm function

l  Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.

l  Support intelligent file checking function.

l  Parameter backup and restore function to prevent the loss of important parameters.

l  High anti-jamming intensity passes many CE tests.

l  Intelligent processing memory, supports power fail safeguard and breakpoint function.

l  Definable I/O interfaces provide customers a wide range of development platforms.



Parameters:



Product Model

RichAuto----A11

CPU

DSP

Internal Memory

512MB

Display Screen

128*64 Monochrome LCD

Communication Port

U disk,USB cable

Controlled Axis Number

3 axes

Control Signal

differential signal

Drive System

step motor/servo motor

Min.Input Unit

0.001mm

No Volt Protection

support

Breakpoint Processing Function

8

External Power Supply Voltage

24V DC

Manual Mode

Continuous,point move,distance

Interpolation Way

line,arc

Soft/Hard Limit

support

Max. Pulse Frequency

1M/S

Password Protection

support

Support Language

simple Chinese/traditional Chinese,English,other languages

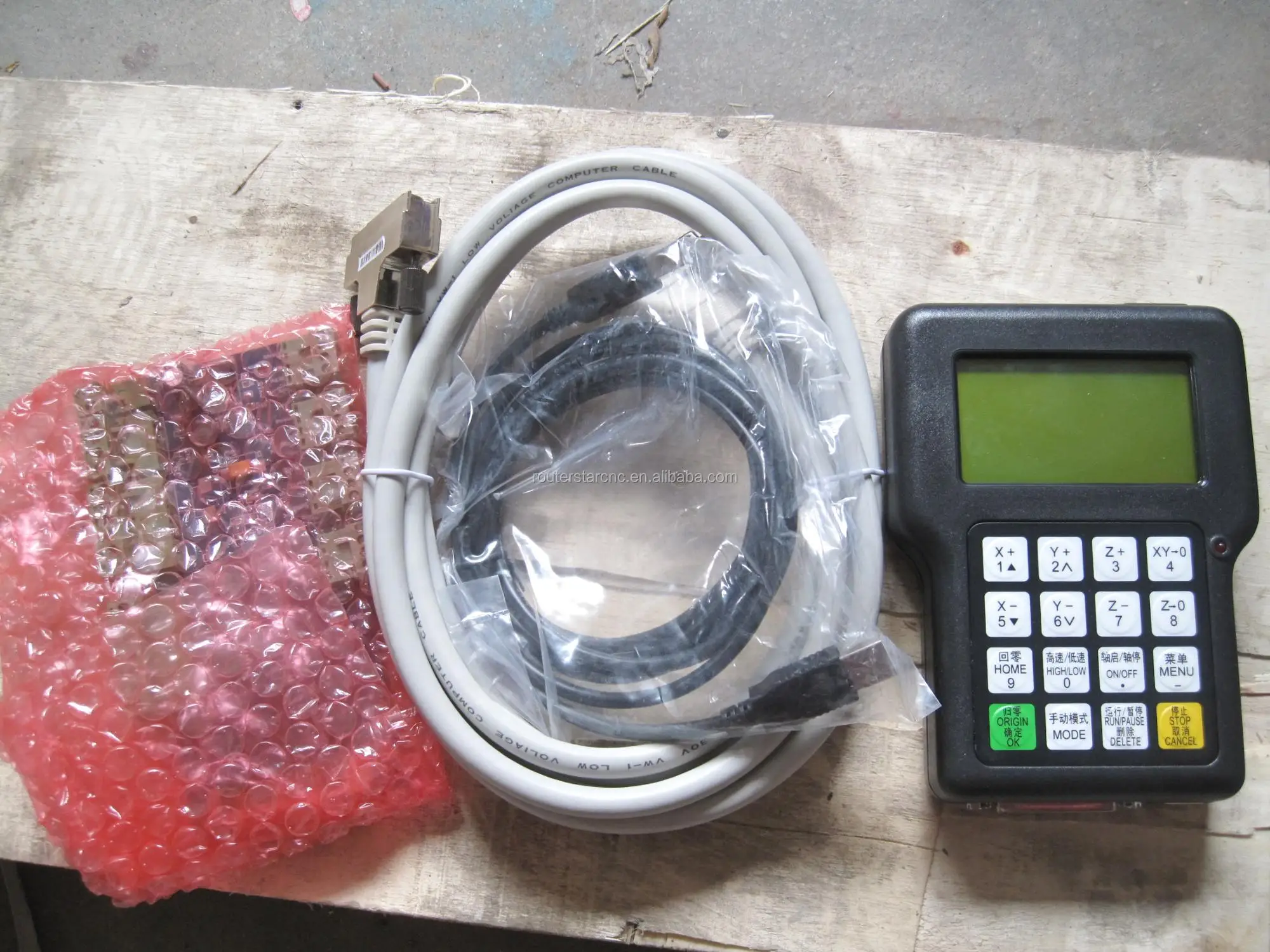

Standard Configuration

(1) DSP Handle;(1) 50 core cable (1)USB cable; (1)8 I/O Wiring board;(1) data CD



Application:

Three axis cnc controller A11 can be used for cnc router machine 3 axis, plasma cutting machine.

with USB transport data, is easy to operate

and hand controller more easier to allign cutter.









Company Information

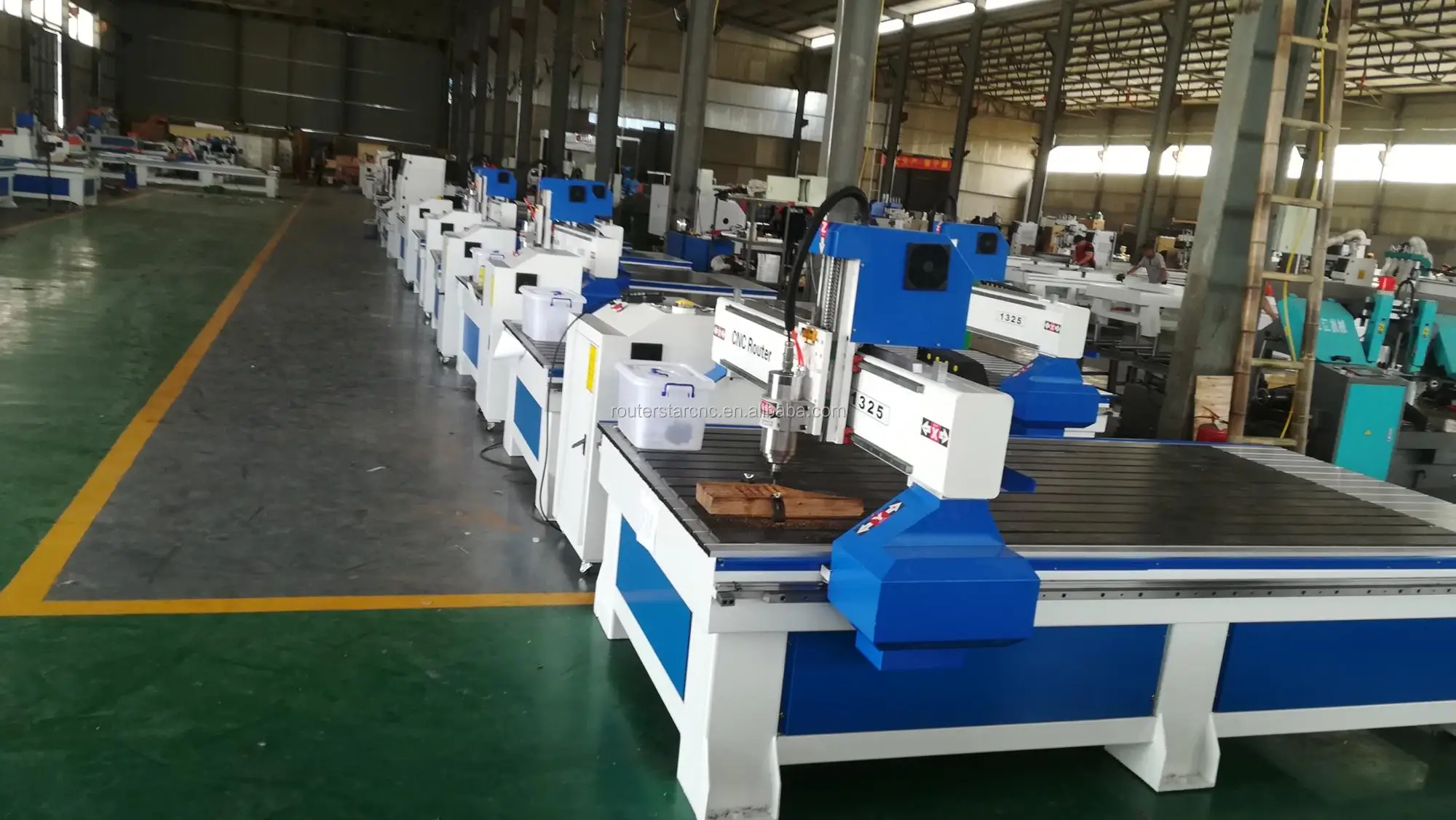

Jinan Routerstar Cnc Machinery Co.,Ltd specializes in the development and manufacture of CNC router machines (CNC wood routers, stone/metal carving machines, 3/4/5 axis CNC router milling machine, 3D CNC stryfoam cutting machines), CNC plasma cutting machines, CNC wood turning lathe machines(single/double axis cnc wood lathe, cnc wood lathe milling center), CNC laser machines (laser marking machines, laser engraving machines and laser metal cutting machines), CNC spare parts and other CNC machines.
