Economical Choice Jacketed Glass reactor 200 L

Product details
Place of Origin:Shanghai China;Vacuum Degree:-0.098Mpa;
Brand Name:lab1st;Supply Ability:500 Set/Sets per Month Glass Reactor;
Jacket volume:4L-45L;Automatic Grade:Automatic;
Volume:10L to 200L;Warranty:1 year;
Dimension(L*W*H):650*500*2000(mm);Port:Shanghai;
Sealing Material:PTFE;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Packaging Detail:Qualified wooden package and sufficient inner protection for fixed bed reactor;After-sales Service Provided:Online support;
Glass Material:High Borosilicate Glass 3.3;Weight:80kg;
Voltage:220V/50HZ;Power(W):90W;
Neck no. on lid:6;Condition:New;
Type:Reaction Kettle;Applicable Industries:Reaction;
Certification:CE ISO;After-sales Service Provided:Engineers available to service machinery overseas;
Product name:Jacketed Glass Reactor;Working temperature:-60 to 200°C;
Frame material:SUS 304;

Economical Choice Jacketed Glass reactor 200 L

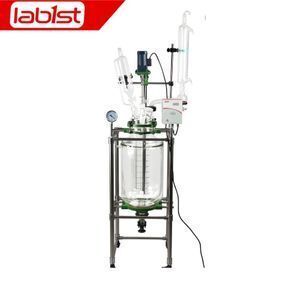

The JGR Series jacketed glass reactor systems from LAB1ST Scientific is the ideal equipment for mixing, reaction and distillation in chemistry and pharmaceutical industries. A wide choice of volumes are available from 500mL to 200L. When working with heating / cooling circulators, the temperature inside the vessel can be gently and accurately controlled by thermal fluid circulation inside the jacket. This reaction vessel is rated to operate safely under full vacuum.





This system can be modified in our own factory quickly in case any customization is needed from us (dimension, motor power, explosion proof, additional glassware, custom port size, etc). Please contact us if any further details are needed.
