1000 watts 360V to 14V vehicle dc-dc voltage converters

Product details
Type:Natural air cooling;Place of Origin:Hebei China;
Product name:DE1000S9G-360S14RC;Power:1000W;
Weight:4.5kg;Input voltage:DC360V;
Packaging Detail:Export standard packing 1000 watts input 360V output 14V vehicle dc-dc voltage converter;Brand Name:DILONG CONVERTER;
IP Grade:IP67;Output voltage:DC14V;
Model Number:DE1000S9G-360S14RC;Size:315*164*52mm;
Efficiency:≥90%;Supply Ability:10000 Piece/Pieces per Month 1000 watts input 360V output 14V vehicle dc-dc voltage converter;
Port:Tianjin;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Output current:72A;

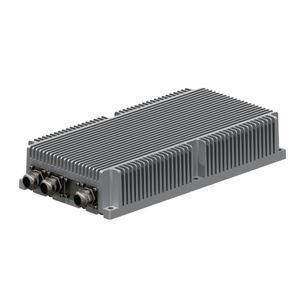

1000 watts input 360V output 14V electric vehicle dc-dc voltage converter

Product Description

Place of Origin:Hebei, China (Mainland)

Brand name:Dilong electrical converter

Description:

DE1000S9G-360S14RC is my company DC/DC converters built specifically for pure electric vehicles.It has the characteristics of high power, small volume and whole sealing . It can automatic conversion constant voltage and current.It is suitable for high voltage 360V input turned 14V low voltage output of application design.



Specification



Mains Input

Rated Input Voltage

DC360V

Input Voltage Range

DC220V - DC410V

Input Current

5.05A(input 220v and the output is full)

Mains Output

 Rated Output Voltage

14 Vdc

 Rated Output Current

72 A

 Rated Output Power

1000W

 Peak Power Output

1120W    10Min

 Constant Current

75A - 80A

 Efficiency

≥90%      input DC360V,output DC14V  70A

 Output Ripple

≤1%Vo     20M oscilloscope,Twisted-pair cable test

 Setpoint Accuracy

≤±1%Vo   input 220Vdc -410Vdc, output 10%-100% load

 Load Regulation

<±0.5% Vo    input 360Vdc       output 10%-100% load

 Line Regulation

    <±0.2% Vo    input 220Vdc -410Vdc, output rated load

 Functional Protection

Input under-voltage protection

Hardware: Can be recovery from DC200-219V.

Software:Less than 220V reported information.

Input over-voltage protection

Hardware: Can be recovery from DC411-430V

Software: More than 410V reported information.

Output over-voltage protection

The output is larger than 16V and then shutdown, the output is less than 12V and then restart.Report the output during shutdown.

Over-temperature protection

80±5℃ shutdown and 70±5℃ restore.

Software:During the shutdown, CAN reported over-temperature of failure.

Reverse polarity protection

Fusing the input fuse.

Software:Report the under-voltage information.

Signal & Communication

    CAN

Report the status of the DC work.

Safeguard

Withstand voltage

Input to output

2000VDC/1min

Leakage current≤1mA

Input to the shell

2000VDC/1min

Leakage current≤1mA

Insulation resistance

>10MΩ

Mechanical stress conditions

QC/T413-2002(Other installation)

ISO16750(Car body installation)

Work environment

Operating temperature:-40℃~85℃

Storage temperature:-40℃~105℃.

Operating humidity:5%~85%RH

Storage humidity:  5%~95%RH.

Heat-dissipating method

Natural air cooling.

IP Grade

IP67(IEC529)

Vibration

QC/T413-2002(Other parts required)

Shock voltage

<560V±5% (The pulse width is less than 2ms)

Size&Weight

Size(length*width*height)

315*164*52(Unit:mm)

Weight

≤4.5Kg



Installation Guide

 Instructions on the use of the circuit:

Mounting dimension:

More Products



FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: What are your main products?

A: We mainly produce electric vehicle power supply, including OBC, dc converter and integrated power supply.

Q: how long is your delivery time?

A: Within 15 days, small sample order 5-7 days.

Q: What is your production capacity?

A: The monthly output of the product is 5,000 to 10000.

Packaging & Shipping

Packaging Details: export standard packing.

Delivery Details: Shipping in 15 days after payment.
