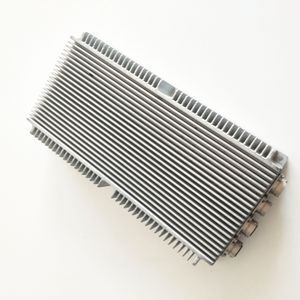

lithium battery 2KW dc to dc converter

Supplier: Shijiazhuang Dilong Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Walker Xing
Price: $315.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Single gross weight:	5.5 KG;	Rated power:	1800W;
MAX power:	2000W;	Packaging Detail:	Carton box wiith protective material lithium battery 2KW dc to dc converter;
Type of cooling:	air cooling;	Package Preview:	;
Product name:	lithium battery 2KW dc to dc converter;	Insulation resistance:	>20MΩ;
Single package size:	47X37X26 cm;	Brand Name:	DILONG;
Input voltage range:	36VDC-72VDC;	Selling Units:	Single item;
Warranty:	12 Months;	Place of Origin:	Hebei China;
Weight:	4.5kg;	Efficiency:	≥88%;
Model Number:	DE2000S9GF-48S14RC;	Input Current Range:	27.7A-55.5A;

lithium battery 2KW dc to dc converter

more products

Product Description

^{Designed specifically for pure electric vehicles.It has the characteristics of high power, small volume and whole sealing . It can automatic conversion constant voltage and current.}

Suitable for all application designs that require DC energy conversion.

Specification

Mains Input
Input Voltage Range	Min:36Vdc			TYP: 48Vdc		MAX: 72Vdc
Input Current	55.5A			31.6A		27.7A
Mains Output
Rated Output Voltage	14 Vdc
Rated Output Current/Power	128 A / 1800W
Peak Power Output	2000W
Over-current point	145A -150A
Efficiency	≥88% input DC48V, output DC14V 128A
Output Ripple	≤1%Vo 20M oscilloscope, Twisted-pair cable test
Voltage Accuracy	≤±1%Vo input 36Vdc - 72Vdc, output 10%-100% load
Load Regulation	<±1% Vo input 48Vdc, output 10%-100% load
Line Regulation	<±1% Vo input 36Vdc - 72Vdc, output rated load
Functional Protection
Input under-voltage protection
Input over-voltage protection	>DC72V Automatic recovery
Over-temperature protection	95 - 110℃ Automatic recovery
Signal & Communication
Power switch signal	Switch via CAN and Enable
Power status signal	Read information via CAN
Safeguard
Insulation voltage	Input - output		1500V_D_C/1min		Leakage current≤3mA
	Input - shell		1000V_D_C/1min		Leakage current≤3mA
	Output - shell		500V_D_C/1min		Leakage current≤3mA
Insulation resistance	>20MΩ
Mechanical stress conditions	QC/T413-2002(Other installation) ISO16750(Car body installation)
Work environment
Operating temperature:-40℃ - 70℃		Storage temperature:-40℃ - 85℃.
Operating humidity:5%~85%RH		Storage humidity: 5%~95%RH.
Cooling method		Air cooling
IP Grade		IP67(IEC529)
Vibration		QC/T413-2002(Other parts required)
Size&Weight
Size(lengthwidthheight)	31516452(Unit:mm)
Weight	≤4.5Kg

Factory and workshop

^{As a manufacturer of Military power supply, industrial power supply and EV electronic control, we offer solutions for EV power supply, with the strong ability of R&D, manufacturing and sales.}

^{Shijiazhuang Dilong Technology was established in 2002, with the area of more than 100000 squre meter. Our mainly customers include BYD, BAIC BJEV, FAW-Volkswagen, Hyundai, Huanghai bus, Yutong EV bus, about more than 170 automotive companies. The military power supply products has ever been offerd to match with Shenzhou 4 and Shenzhou 6.}

^{Our vision is to be the leading supplier of power supply products home and abroad.}

Certifications

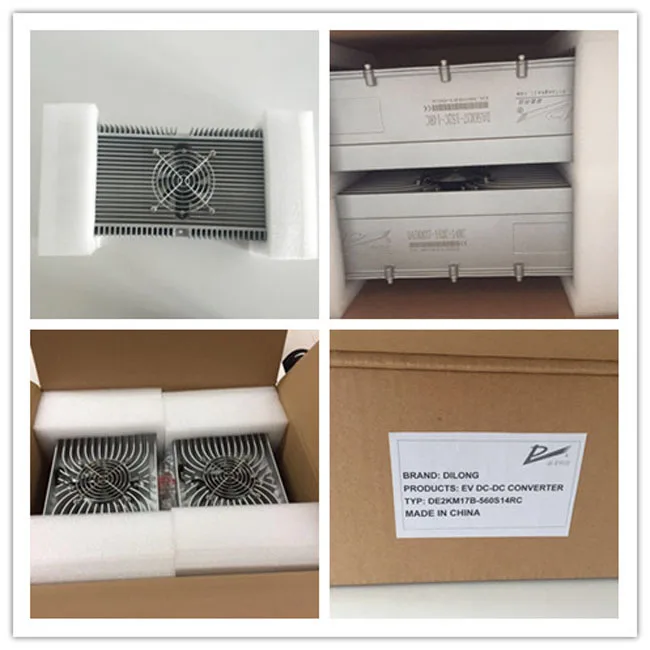

Package

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.

Q: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
