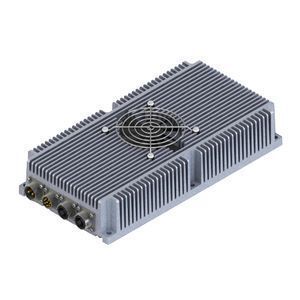

high quality waterproof dc voltage 2000W 360Vdc to 14Vdc converter

Product details
Product name:high quality waterproof dc voltage 2000W 360Vdc to 14Vdc converter;Constant voltage output range:36-72Vdc;
Input voltage:360Vdc;Weight:≤4.5kg;
Efficiency:90%;Packaging Detail:Export standard packing high quality waterproof dc voltage 2000W 360Vdc to 14Vdc converter;
Operating temperature:-40℃~+85℃;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type of cooling:Air-cooled;Model Number:DE2000S9GF-360S14RC;
Supply Ability:5000 Piece/Pieces per Month high quality waterproof dc voltage 2000W 360Vdc to 14Vdc convert;Place of Origin:Hebei China;
Brand Name:DILONG;Input Voltage Range:DC220V - DC410V;
Input current range:10A;size:315*164*52mm;
Port:Tianjin;

high quality waterproof dc voltage 2000W 360Vdc to 14Vdc converter

more products

Product Description

Place of Origin: Hebei, China (Mainland)

Brand name: Dilong

Model Number: DE2000S9GF-360S14RC

Specification

DE2000S9GF-360S14RC  is a highly integrated and highly integrated company specially designed for electric vehicles.

Intelligentized digital DC/DC converter that can be integrated with motor controller.self-actualization

The constant current constant current automatic conversion is suitable for the application design of pure electric vehicle energy conversion.





                   Model Specification/unit

DE2000S9GF-360S14RC





Mains Input

Rated input voltage

V

360Vdc

Efficiency

%

≥95   (Not including auxiliary power supply)

Power Factor



≥0.99@220Vac,rated power

Current

A

10







Mains output

Rated output voltage

Vdc

14Vdc

Max current

A

142A

Constant power output

W

2000

Output voltage accuracy

V

≤±1%Vo  input 175Vac-265Vac,output 10%-100% load

Line regulation

%

≤±1Vo   input 175Vac-265Vac,output 100% load

Load regulation

%

≤±1Vo   input 220Vac,output 10%-100% load

Ripple and noise

mV

≤±3%Vo  20M oscilloscope,Twisted-pair cable test.







Property

Input over-voltage protection

Vac

>275  CAN directive warning protection

Input under-voltage protection

Vac

<85   CAN directive warning protection

Output Over-current protection

A

≥110%Io  CAN directive warning protection

Output under-voltage protection

Vdc

< 90  CAN directive warning protection

Output over-voltage protection

Vdc

>205  CAN directive warning protection

Over-temperature protection

85±5  CAN directive warning protection

Output short circuit protection



Yes (CPU Intelligent monitoring )

Reverse polarity protection



yes (CPU Intelligent monitoring )

Dynamic response

us

≤200

CAN communication



Communication interrupt, timeout of 20 seconds intelligent shutdown, communication normal recovery.





Work environment

Operating temperature



-40℃~+70℃(Intelligent derating shell temperature above 70 ℃)

Storage temperature



-45℃~+95℃

Operating humidity

%RH

20-90(No condensation)

Storage  humidity

%RH

10-95(No condensation)

Vibration



QC/T413-2002(Other parts required)

Type of cooling



Liquid-cooled or air-cooled



Safeguard

Isolation Voltage



shell←input→output:2.8KVdc;

Main Output→shell:2.8KVdc;

Auxiliary Output→shell:700Vdc

Insulation resistance

input—output—shell>10 (25℃,70%RH)

Structure

weight

Kg

≤4.5Kg

Dimensions

mm

315*164*52




Factory



Company Information

As a manufacturer of Military power supply, industrial power supply and EV electronic control, we offer solutions for EV power supply, with the strong ability of R&D, manufacturing and sales.
Shijiazhuang Dilong Technology was established in 2002, with the area of more than 100000 squre meter. Our mainly customers include BYD, BAIC BJEV, FAW-Volkswagen, Hyundai, Huanghai bus, Yutong EV bus, about more than 170 automotive companies. The military power supply products has ever been offerd to match with Shenzhou 4 and Shenzhou 6.
Our vision is to be the leading supplier of power supply products home and abroad.

Shijiazhuang Dilong Technology Co., Ltd.



Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

7-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.



FAQ

Q1: Are you trading company or manufacturer ?
A: We are manufacturer.



Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.



Q3: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.



Q4: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.



Q5: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.



Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
