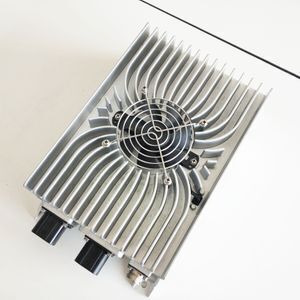

3.3KW air-cooled electric car charger

Supplier: Shijiazhuang Dilong Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Walker Xing
Price: $140.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Communicarion:	No CAN communicarion;	Brand Name:	DILONG;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Input voltage range:	85~264Vac;
Dimensions:	316mm194mm108mm;	Input frequency range:	47~63Hz;
Model Number:	DA3K3M17-360C;	Constant voltage output range:	250~420Vdc;
Packaging Detail:	International standard packing chademo quick charger connector 3.3KW air-cooled AC/DC electric car charger;	Place of Origin:	Hebei China;
Input Current:	≤16@220Vac;	IP Grade:	IP67;
Constant power output:	3.3KW;	Type:	air-cooled;
Product name:	3.3KW air-cooled AC/DC electric car charger;

3.3KW air-cooled AC/DC electric car charger

more products

Product Description

EV electric onboard fast car battery charger

Place of Origin: Hebei, China (Mainland)

Brand name: Dilong electrical converter

Model Number: DA3K3M17-360C

Specification

Mains Input	Rated Voltage	Vac	220
	Voltage Range	Vac	85~264 (The output from 85-176 is automatically reduced to 1.2 KW)
	FREQ RANGE	HZ	47~63
	Efficiency(max)	%	≥95
	Power Factor		≥0.99@220Vac,rated power
	Current(MAX)	A	≤16@220Vac
Mains output	Rated Output Voltage	Vdc	360
	Constant voltage output range	Vdc	210~420 (According to the customer battery final decision)
	Max Current	A	12
	Constant power output	W	3300
	Output voltage accuracy	V	≤±1%Vo input 176Vac-264Vac,output 10%-100% load
	Line regulation	%	≤±0.2%Vo input 176Vac-264Vac,output 100% load
	Load regulation	%	≤±0.5%Vo input 220Vac,output 10%-100% load
	Ripple and noise	mV	≤±3%Vo 20M oscilloscope,Twisted-pair cable test.
Auxiliary supply	Rated output voltage	Vdc	12
Auxiliary supply	Rated output power	W	50 (Activate BMS)
Property	Input over-voltage protection	Vac	≥270 CAN directive warning protection
	Input under-voltage protection	Vac	≤80 CAN directive warning protection
	Output Over-current protection	A	Io≥120% CAN directive warning protection
	Output under-voltage protection	Vdc	≤200 CAN directive warning protection
	Output over-voltage protection	Vdc	≥421 CAN directive warning protection
	Over-temperature protection	℃	85±5 CAN directive warning protection
	Output short circuit protection		yes (CPU intelligent control)
	Reverse polarity protection		yes (CPU intelligent detection)
	Dynamic response	us	≤200
	CAN communication		No CAN
Work environment	Operating temperature		-40℃~+85℃(Intelligent derating shell temperature above 70 ℃)
	Storage temperature		-45℃~+105℃
	Operating humidity	%RH	20-90(No condensation)
	Storage humidity	%RH	10-95(No condensation)
	Vibration		QC/T413-2002(Other parts required)
	Cooling mode		Air cooling
Safeguard	Isolation Voltage		shell←input→output:2.8KVdc; Output→shell:2KVdc; Auxiliary Output→shell:700Vdc
	Insulation resistance	MΩ	input—output—shell>10 (25℃,70%RH)
	IP Grade		IP67
Structure	mode of connection		Waterproof aviation connector
	weight	Kg	5
	Size	mm	316194.5108.5

Installation Guide

Certifications

Advanced testing

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

7-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

FAQ

^{Q: Are you trading company or manufacturer ?}
^{A: We are manufacturer.}

^{Q: How long is your delivery time?}
^{A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.}

^{Q: What is the key technical advantage of your products?}
^{A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.}

^{Q: What is your Engineering Testing and Validation capabilities?}
^{A:We will response you within 2 hours and solve the problem within 24 hours.}

^{Q: What is your terms of payment ?}
^{A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.}
