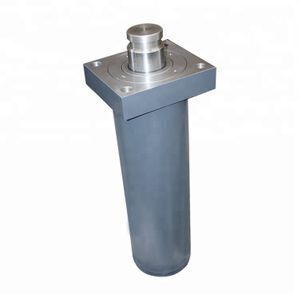

50 ton hydraulic press cylinder

Supplier: Zhejiang Handa Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Elaine Ying
Price: $20.00 / >=10 units
Min. Order: 10 units

Click here to contact

Product details

Body Material:	Steel;	Packaging Detail:	50 ton hydraulic press cylinder packing:1unit/bubble pack or then into paper box Then into wooden case;
Mounting Type:	Flange;	Place of Origin:	Zhejiang China;
Bore Diameter:	140mm;	Certificate:	ISO9001:2008 / CE;
Application:	Agricultural, Engineering Machinery, Industry;	Brand Name:	HANLiDA;
Oil Port:	BSP/NPT/ZG/M;	Shaft Diameter:	80mm;
Structure:	Piston Cylinder;	Power:	Hydraulic;
Port:	NINGBO/SHANGHAI;	Standard or Nonstandard:	Standard;
Seals kit:	Twiwan Mad , Hallite, NOK Parker,;	Delivery Detail:	15-30days after receive payment;
Model Number:	HROB14080300;	Type:	Double Action;
Product name:	50 ton hydraulic press cylinder;	Working Pressure:	16MPa;
Supply Ability:	10000 Unit/Units per Month 50 ton hydraulic press cylinder;	Warranty:	One Year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,PayPal;	Maximum Stroke:	300mm;

50 ton hydraulic press cylinder

Product Overviews

Bore Diameter	φ25-320mm(1" to 5")
Working Medium	Clean Standard Hydraulic Oil
Cylinder Tube Material	Steel C1045
Operating Pressure Rang	0.3-30MPa (45-4300PSI)
Temprature Rang	-10 to 60°C
Speed Rang	0-300(mm/s)
Rod Diameter	φ12-200mm
Stroke	0-4000mm
Oil Port	BSP/NPT/ZG/M/Customized
Mounting Type	Flange, Trunnion, Fixed Eye, Clevis, Welded Tube, Adjustable Nut and etc.

DATA SHEET DOWNLOAD

Product Description

Custom Hydraulic Cylinder Technical Parameters

Bore Diameter	25-320mm(1"-5")
Rod Diameter	φ12-200mm
Working Pressure	0.7-30MPa
Port Size	BSP/NPT/ZG/M/Customized
Seals	Taiwan Brand, Hallite, NOK
Custom Service	Special port arrangements, Integrated manifolds with valving

Product Photos

Application

Customized Solutions

Customized Hydraulic cylinder Solutions.
All of the designs in the HANLiDA Hydraulics portfolio of Tie Rod Hydraulic Cylinder, Welded Hydraulic Cylinder, Agricultural Tie Rod Hydraulic Cylinder, Agricultural Welded Clevis Hydraulic Cylinder, Agricultural Welded Tube Hydraulic Cylinder, Single Acting Hydraulic Cylinder, Telescopic Hydraulic Cylinder are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the hydraulic Cylinders in our portfolio, enables OEMs to meet their Custom Hydraulic cylinder requirements while allowing for faster development times.
