Video outgoing-inspection: | Provided; | Packaging Detail: | jet band saw hydraulic cylinder packing detail: 1pc/pupply bag, Then into carton box.; |
Local Service Location: | None; | Color: | Black; |
Payment Terms: | T/T; | Mounting Style: | Thru-hole; |
Structure: | Piston Cylinder; | Body Material: | Steel; |
Place of Origin: | Zhejiang China; | Application: | Band saw machine; |
Showroom Location: | None; | Core Components: | seals; |
After Warranty Service: | No service; | Bore Size: | 35/45mm; |
Condition: | New; | Power: | Hydraulic; |
Name: | jet band saw hydraulic cylinder; | Working Pressure: | 1MPa; |
Standard or Nonstandard: | Standard; | Certificate: | ISO9001:2008 / CE; |
Marketing Type: | New Product 2020; | Warranty: | One Year; |
Machinery Test Report: | Provided; | Seal kits: | Taiwan brand; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Warranty of core components: | 1 Year; |
Accessories: | Throttle valve + Ball valve; | Brand Name: | HANLiDA; |
Bore Diameter | φ25-320mm(1" to 5") |
Working Medium | Clean Standard Hydraulic Oil |
Cylinder Tube Material | Steel C1045 |
Operating Pressure Rang | 0.3-30MPa (45-4300PSI) |
Temprature Rang | -10 to 60°C |
Speed Rang | 0-300(mm/s) |
Rod Diameter | φ12-200mm |
Stroke | 0-4000mm |
Oil Port | BSP/NPT/ZG/M/Customized |
Mounting Type | Flange, Trunnion, Fixed Eye, Clevis, Welded Tube, Adjustable Nut and etc. |
DATA SHEET DOWNLOAD

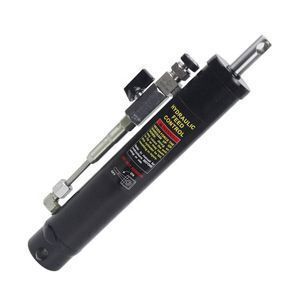

Band saw Hydraulic cylinder: HSG35/45X14X145-1MPa.
Band Saw hydraulic cylinder Drawing
Band Saw hydraulic cylinder Application
Custom Hydraulic Cylinder Technical Parameters
Bore Diameter | 25-320mm(1"-5") |
Rod Diameter | φ12-200mm |
Working Pressure | 0.7-30MPa |
Port Size | BSP/NPT/ZG/M/Customized |
Seals | Taiwan Brand, Hallite, NOK |
Custom Service | Special port arrangements, Integrated manifolds with valving |
Customized Hydraulic cylinder Solutions.
All of the designs in the HANLiDA Hydraulics portfolio of Tie Rod Hydraulic Cylinder, Welded Hydraulic Cylinder, Agricultural Tie Rod Hydraulic Cylinder, Agricultural Welded Clevis Hydraulic Cylinder, Agricultural Welded Tube Hydraulic Cylinder, Single Acting Hydraulic Cylinder, Telescopic Hydraulic Cylinder are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the hydraulic Cylinders in our portfolio, enables OEMs to meet their Custom Hydraulic cylinder requirements while allowing for faster development times.
