Dimension(L*W*H): | 2600*1550*2350mm; | Applicable Industries: | Construction works ; |
Weight: | 1000kg; | Automatic Grade: | Automatic; |
Product name: | Belt Filter Press; | Power: | 750w; |
Brand Name: | QILEE; | Warranty: | 1 year; |
Material: | SUS304; | Dried Sludge: | 68~113kg/h; |
After-sales Service Provided: | Online support; | Certification: | CE ISO; |
Reference Weight(kg): | 1000; | Voltage: | 380v/220v; |
Port: | Shanghai; | Place of Origin: | Shanghai China; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Supply Ability: | 20 Set/Sets per Month belt filter press; |
Packaging Detail: | Municipal Mine Sewage Small Activated Sludge Most Effective Belt Filter Press is packed in standard export packing; | Treating Capacity: | 4.5~7.5(m3/h); |
Condition: | New; | Certificate: | CE ISO9001; |
Base Dimension(L1*W1,MM): | 2100*1080; | Water Content's Rate: | 78-85%; |
Power(W): | 750; |

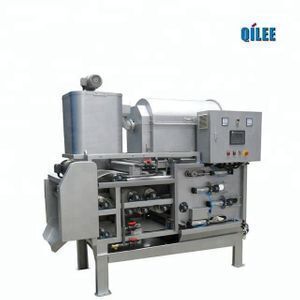

Belt Filter Press Featurs:
1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.
2. The filter cloth imported from Swiss, to provide the best performance and long service life.
3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.
4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense
5. Low energy consumption,high efficiency ,low revolutions,low noise≤75dB(A)
6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.
Belt Filter Press Selection of models:
Model | QTB-500 | QTB-750 | QTB-1000 | QTB-1250 | QTB-1500 | QTB-1500L | QTB1750 | QTB-2000 | |
Belt Width(MM) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 1750 | 2000 | |
Treating Capacity( m³/hr ) Inlet Consistency(ss0.5~1.5%) | 3.0~5.2 | 4.5~7.5 | 6.5~10.5 | 7.5~12.5 | 9.5~16 | 12~20.5 | 15~24.5 | 18~30 | |
Dried Sludge(kg/hr) | 45~78 | 68~113 | 98~158 | 113~188 | 143~240 | 180~308 | 225~368 | 270~450 | |
Water Content's Rate(%) | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | |
Power Consumption (HP) | Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 |
Disposal Agitaor Motor | 1/4 | 1/4 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 1 | |
Drum Thickener | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | |
Lower Collecting Tray For Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | No | No | |
External Dimensions (Reference) (MM) | L | 2600 | 2600 | 2600 | 2600 | 2700 | 3300 | 3300 | 3400 |
W | 1050 | 1300 | 1550 | 1800 | 2150 | 2150 | 2400 | 2650 | |
H | 2150 | 2350 | 2350 | 2350 | 2500 | 2500 | 2500 | 2600 | |
Base Dimension(L1*W1,MM) | 2100*830 | 2100*1080 | 2100*1330 | 2100*1580 | 2100*1830 | 2450*1860 | 2580*2110 | 2580*2360 | |
Reference Weight(Kg) | 830 | 1000 | 1210 | 1450 | 1850 | 2200 | 2450 | 2850 |
Belt Filter Press Application:
1. Sludge dewatering of various industrial waste water.
2. Sludge dewatering of butchery, husbandry.
3. Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.
4. Sludge dewatering of city sewage, excretion, water purifying industries.
Belt Filter Press Treatment Flowchart:
Belt Filter Press Structure:
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
