Zimbabwe 1200 t/d Capacity CIP Mining Equipment CIL Processing Reagent Gold Leaching Plant

Product details
Place of Origin:Jiangxi China;Supply Ability:500 Set/Sets per Year gold leaching plant;
Impeller Diameter:1310 mm;Application:Gold Leaching Plant;
Brand Name:JXSC;Effective Volume:34 m3;
Keywords:gold leaching plant;Certificate:ISO CE;
Total Weight:5100 kg;Port:Xiamen, Shenzhen, Guangzhou, Tianjin, Shanghai, Qingdao;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Product name:gold mining equipment;
After-sales Service Provided:Overseas service center available;Dimension(L*W*H):3550*3550*4000 mm;
Impeller Rotation Speed:43 r.p.m;Condition:New;
Packaging Detail:1. Standard parts packed in the wooden cases. 2.Big parts packed by plastic membrane. 3.The whole machine is loaded in the container.;Tank Weight:4320 kg;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;
Product Description

Metal recovery or concentration by adsorption on activated carbon has been the dominant process for gold extraction after leaching by cyanide in aerated alkaline slurry. The continuous processes of gold recovery by adsorption on activated carbon in agitated tanks, namely the carbon-in-pulp (CIP) and the carbon-in-leach (CIL)processes, have been widely used since the 1970s.

CIP production introduction:

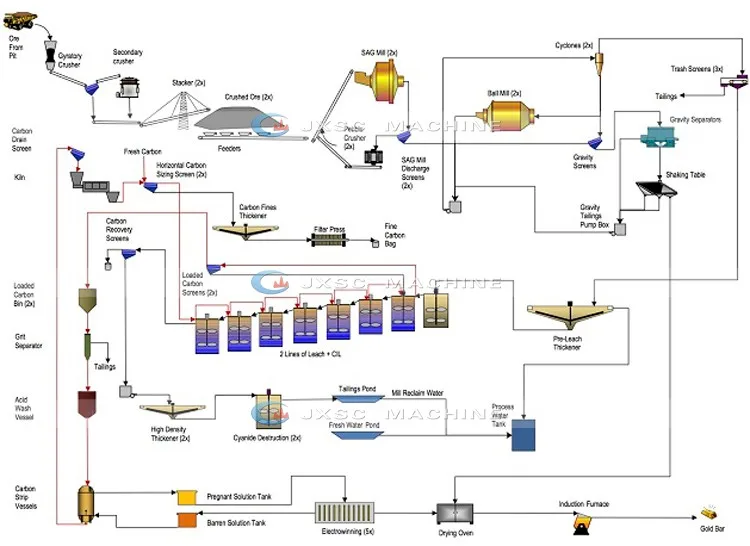

Carbon-in-pulp (CIP) is the sequential leach then absorption of gold from ore. During the CIP stage, pulp flows through several agitated tanks where sodium cyanide and oxygen have been added to dissolve gold into solution. In the absorption stage, this solution flows through several agitated tanks containing activated carbon. Gold absorbs on to the activated carbon, which flows counter-current to the pulp, while screens separate the barren pulp from the gold-loaded carbon.

CIL process plant principle:

In the CIL (Carbon in Leach) or CIP (Carbon in Pulp) plants while the precious metals are being dissolved by the cyanide solution in the large volume tanks the dissolved metals are adsorbed by the active carbon. These processes are generally preferred for the relatively high grade and lower reserve ore types with very fine graded precious metals.

The major difference between the CIL and CIP processes is; during the CIL process both cyanide leaching and carbon adsorption take place in the same tanks but in the CIP process first leaching occurs in the first couple of tanks then carbon adsorption take place in the following tanks while leaching continues. In all of these tanks agitation and air sparging is available.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Technical Data
Model
Tank Spec.
Diameter × Height
(mm).
Effective Volume (m3)
Impeller Rotation Speed (r.p.m)
Impeller Diameter (mm)
Power (kW)
Tank Weight (kg)
Total Weight (kg)
LT2.0×2.5
2000×2500
6
52
909
2.2
1609
2190
LT2.5×3.15
2500×3150
13.14
935
2450
3180
LT3.0×3.15
3000×3150
18.93
43
1130
4
3530
4260
LT3.0×3.5
3000×3500
21
3298
4400
LT3.15×3.55
3150×3550
24
1260
3510
4560
LT3.5×3.5
3500×3500
30
52
1310
5.5
3560
5110
LT3.55×4.0
3550×4000
33.6
43
4320
5100
