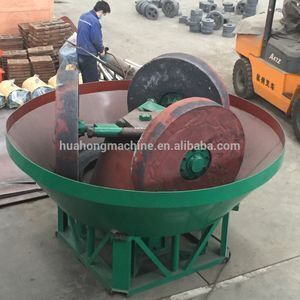

With CIQ gold pan mill, wet pan gold grinding mill with ISO

Supplier: Zhengzhou Huahong Machinery Equipment Co., Ltd.
Region: Hainan, China
Contact: Ms Lily Li
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	1300X250X150X350±20mm;	Condition:	New;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;	design:	invotation;
Capacity(t/h):	3t/h;	Certification:	ISO&CE CIQ;
Brand Name:	Huahong;	Power(W):	11kw;
Place of Origin:	Henan China;	installation:	engineer guide;
Weight:	7.5t;	Supply Ability:	300 Set/Sets per Month;
Packaging Detail:	wooden case packing or as your demand;	visit factory:	supply;
Delivery Detail:	Shipped in 10 days after payment;	color:	according to client's demand;
Warranty:	1year;	After-sales Service Provided:	Engineers available to service machinery overseas;
Motor Type:	AC Motor;	Model Number:	1200B;
Port:	qingdao/shanghai/tianjin;	Type:	wet pan mill;

With CIQ gold pan mill, wet pan gold grinding mill with ISO

Specifications

The gold refining machine is a new mill, small investment, high yield, the production cost is low, good benefits.

The gold refining machine is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.

As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold refining machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.

Mainly used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can be selected grind gold machine can be used. Characteristics: grind gold through the raw material mixing, rolling, crushing, rolling repeatedly reach moisture equilibrium ratio of uniform, low gas content, improve the forming rate and forming quality, grind the material through the gold refining machine molding Products with high density, good strength, no porosity ratio weight. Energy efficient, high volume of output, the product is used for iron ore process tailings recovery, not to slag the loss of effective resources can be fully utilized

Technical data:

Model	Specification	Input size(mm)	Rotate Speed (r/min)	Powder(kw)	Weight(t)
1600A	1600×400×200×500±20mm	30mm	20-22	25KW	14.5
1500A	1500×350×200×460±20mm		20-22	22KW	13.5
1500B	1500×350×150×460±20mm		20-22	22KW	12.3
1500C	1500×300×150×420±20mm		20-22	22KW	11.3
1400A	1400×250×150×350±20mm		16-18	18.5kw	8.5
1400B	1400×250×150×350±20mm		21-23	18.5kw	8.5
1350A	1350×250×150×350±20mm		16-18	18.5kw	8
1350B	1350×250×150×350±20mm		21-23	18.5kw	8
1300A	1300×250×150×350±20mm		16-18	15kw	7.5
1300B	1300×250×150×350±20mm		21-23	15kw	7.5
1200A	1200×200×80×250±20mm		17-19	7.5kw	5.5
1200B	1200×200×80×250±20mm		23-25	11kw	5.5
1100A	1100×200×80×250±20mm		17-19	7.5kw	5
1100B	1100×200×80×250±20mm		23-25	7.5kw	5
1000	1000×200×80×250±20mm		13-15	5.5kw	4.5

Three roll grinding gold machine

The invoice certification

The embassy certification

Certificate for Pre-shipment Inspection

Certificate of origin

Gold Carpet

Mercury Plate:

Mercury:

Extract Gold Processing Drawing:

Mobile trommel screen for gold refining:

Techncal parameter:

Model	Capacity (t/h)		Wheel quantity	Water pump & water pipe	Diesel engine / Electric motor	Drum diameter	Drum length	Screen size(mm)	Weight (kgs)
GL510	5-15		4	include	Diesel/Electric	500 mm	1300 mm	<3-20	1100
GL615	10-20		4	include	Diesel/Electric	600 mm	1500 mm	<3-20	1200
GL715	20-30		4	include	Diesel/Electric	700 mm	1500 mm	<3-20	1300
GL815	30-40		4	include	Diesel/Electric	800 mm	1500 mm	<3-20	1500
GL1020	40-100		4	include	Diesel/Electric	1000 mm	2000 mm	<3-20	2300
GL1225		100-160	4	include	diesel engine	1200 mm	2500 mm	<3-20	3000
GL1530		150-200	4-6	include	Diesel/Electric	1500 mm	3000 mm	<3-20	4000
GL1545		200-300	4-6	include	Diesel/Electric	1500 mm	4500 mm	<3-20	4500
GL1848		300-450	4-6	include	Diesel/Electric	1800 mm	4800 mm	<3-20	6000
GL2055		400-600	4-6	include	Diesel/Electric	2000 mm	5500 mm	<3-20	8000
