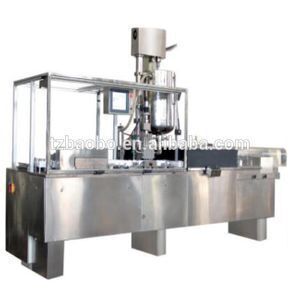

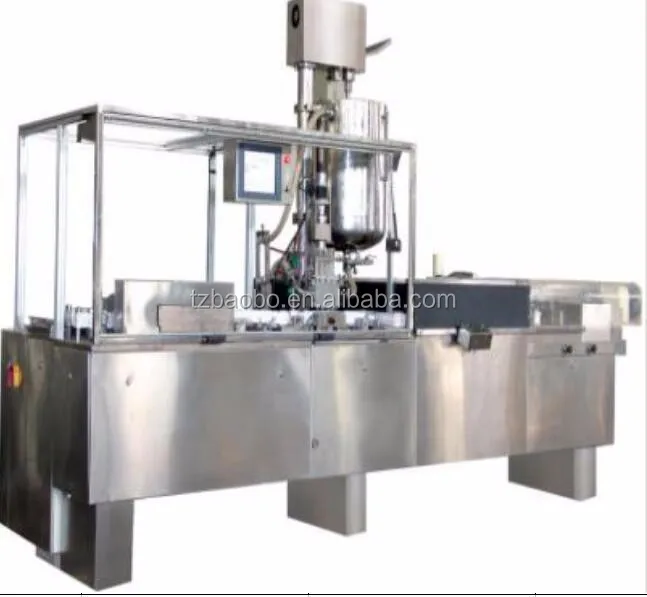

The suppository shell sealing machine and the pharmaceutical suppository packing machine

Supplier: Taizhou Baobo Packing Co., Ltd.
Region: Zhejiang, China
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

After-sales Service Provided:	No after-sales service,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Selling Units:	Single item;
Dimension(LWH):	4700mm2040mm2400mm;	Place of Origin:	Zhejiang China (Mainland);
Brand Name:	Baobo;	Single gross weight:	1 KG;
Warranty:	2 Years;	Single package size:	4700X2040X2400 cm;
Condition:	New;	Power(W):	13kw;
Voltage:	AC380V;	Certification:	CE ISO9001 SGS;
Weight:	1500kg;	After-sales Service Provided:	Engineers available to service machinery overseas;
Usage:	Capsule;	Packing height:	1800mm;
Delivery Detail:	0 days after payment;

Product Details

Place of Origin: China (Mainland)
Application: Pharmaceutical suppository Single dose:0.5-5g
Weight: 1500KG
Total power: 13KW

Brand name: Baobo
Water consumption: 600L/h(Recycle)
Dose allowed: ±2%
Gas consumption: 1.5m³/min

Model Number: GZS-9A

Output:18000-22000 per/hour

After-sales Service Provided: Engineers available to service machinery overseas.

Product Introduction

The Product is mainly composed of three parts
1 ,high-speed tape machine.
2 ,high speed perfusion machine.
3, high-speed freezer.

4,,high-speed sealing machine.

Can automatically complete the preparation of suppositories, perfusion, cooling forming, sealing, playing batch number, playing tear line, cut the bottom edge, Qi above, count the whole process of cutting. With a flat bubble does not fill and automatically remove the function, with automatic color correction function, with filling capacity detection. The unit is controlled by the PLC program, industrial man-machine interface operation, is the highest degree of domestic automation suppository equipment.

Product Parameters

Name	High - speed automatic suppository machine	Mode	GZS-9A
Output	18000-22000per/hour	Single dosage	0.5-5g
Store the capacity	50L	Atmospheric pressure	0.6Mpa
Gas consumption	1.5m³/min	Water consumption	600L/h(Recycle)
Voltage	Three-phase AC380V	Total power	13KW
Shape	Bullet shaped, duck bill and other special shapes	Size	470020402400mm
Total weight	1500kg	Packing height	1800mm

Characteristic

The Technical characteristics

(1)the use of motor drive cam mechanism and pneumatic combination of work, each time to send shell shell 9, accurate positioning.
(2)with the color correction function, defibrillation bubble automatic detection, perfusion site is not perfusion and drilling, in the sealing part of the end of the function.
(3) Perfusion site detection of the filling level detection switch.
(4)high precision 9 perfusion institutions, the use of plug-in linear perfusion agencies, which can be filled with 9 suppositories, accurate location, no drops, no hanging wall;
(5) the use of servo motor system, can automatically adjust the volume accurately.
(6)high-precision temperature control technology, the use of special temperature sensor and microcomputer control system, can achieve high-precision mold temperature control.
(7)storage tank capacity, with constant temperature, mixing device. Use a plunger pump for liquid reflux. The project uses a special insulation temperature control technology, so that the liquid is always kept constant temperature to meet the perfusion requirements.
(8)continuous cooling stereotypes technology, using one end into the end of the gossip trajectory movement curve, relying on the wheel to drive the operation, so that after filling the suppository shell with adequate cooling stereotypes, to achieve liquid-solid conversion.
(9)Sealing part of the use of three preheating, cutting the bottom edge, playing tear, heat sealing through the cam mechanism transmission, fast, accurate action, high yield.
(10) wide adaptability, can be filled with a large viscosity of the gelatin matrix and traditional Chinese medicine products, can adapt to a variety of materials such as PVC, PVC / PE, PVC / PVDC / PE.
(11)can achieve any number of grain shear.
(12) with tailings automatic collection function.

(13)PLC programmable control and industrial man-machine interface operation, easy operation, high degree of automation, easy adjustment, high temperature control accuracy, reliable action, smooth operation.

Mechanical product

Why Choose Us

Most of the suppository machine factory cooperate with us cause our film's quality.
Such as the ShangHai YuanYing machine factory,TianShui HuaYuan machine factory and Liaoyang ChunGuang machine and so on.

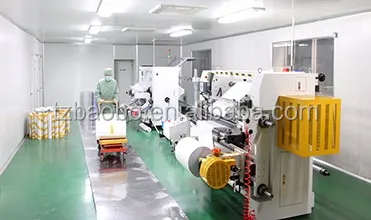

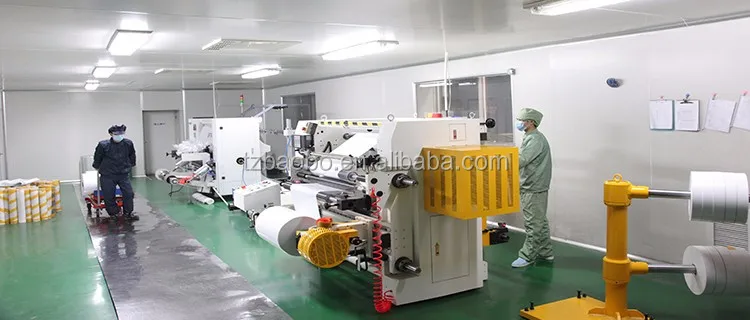

About the workshops

We have hundreds of grade cleaning standard of medicine packing materials production special workshop,highly standard warehouse,and lab building facilities of area of 1000㎡,others production , office buildings have area of 3000 ㎡ and so on. Our company is the earliest introduction of development and production the medicine PVC/PE composite plate factory.

The professional equipment

Our company have many years experience about the specializing in the production of composite ,printing of medicine packaging materials production and perfect test and inspection procedures facilities. Our company have advanced multifunctional solvent composite production lines ,a number of dry composite production lines,flexible packaging materials productions lines.

The packaging and shipping

The inner ,we used PE bags,in the outside we used carton. It ' s safe and clean.And we can satisfy customer with special requirements and organization of production and we have ability to development of advanced medicine packaging materials.

Company Information

TAIZHOU BAOBO Packing CO., Ltd
1.Our company is the most professional pharmaceutical packing manufactory in China even in all over the word. Because we focus on the quality and we only do the high quality goods, and we have been in this field more than 10 years.We can assure you the medicine in suppository packing will never permeate even in high temperature.

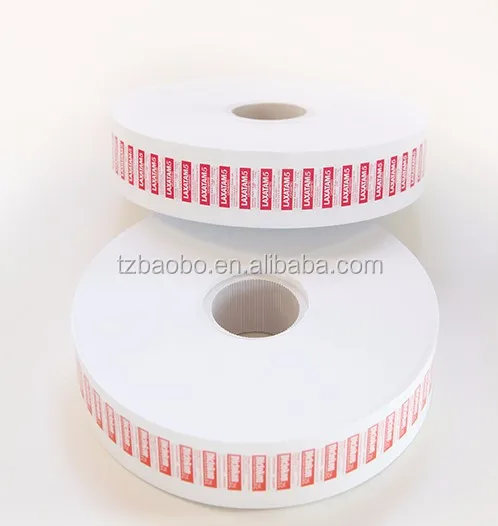

2.Our company is the earliest introduction of development and production the medicine PVC/PE composite film manufacturer, and successively developed printing composite bolt material and oil acid and alkali proof, UV protection, high barrier property and other special use of the two-tier, multilevel composite plate, composite membrane.

3.The company have more than 10 years experience about the specializing in the production of composite, printing of medicine packaging materials production and perfect test and inspection procedures, facilities.

4.Our company have already gained the state food and drug administration drug packaging materials and containers registration certificate, become the only national (Ⅰ) class medical packaging materials designated production enterprise in Taizhou.

5.The company has advanced multi-functional solvent composite production line, a number of dry composite production line, flexible packaging materials production line.

FAQ

1.Q: Are you manufacturer?
A : Yes, We are manufacturer with export license.

2.Q: Why choose you?

A : Most of the suppository machine factory cooperate with us cause our film's quality.Such as the ShangHai YuanYing machine factory,TianShui HuaYuan machine factory and Liaoyang ChunGuang machine and so on.
