HBC Top Quality 10KVA 6kva 3kva 2kva 1kva Online Rack Mount UPS from factory in China

Product details
Transfer Time:0 Ms;Warranty:2 Years;
Supply Ability:60000 Piece/Pieces per Month;Package Preview:https://sc01.alicdn.com/kf/HTB1oPpMQFzqK1RjSZFvq6AB7VXaA.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1f6hPQMHqK1RjSZFkq6x.WFXaV.jpg_640x640.jpg;
Brand Name:Ecsun OEM/ODM;Place of Origin:Guangdong China;
Application:telecommunication/Computer/networking/finance/minitary;Weight:10.3kg;
Port:Shenzhen/Guangzhou/HK;Input voltage:115-300vac;
Capacity:3kva/2400W;Phase:Single Phase;
Packaging Detail:rack mount ups 3kva package: Foam protective safe neutral package(large quantity can OEM) 1pcs into inner master carton 1 Carton size:795*575*255mm 1 Carton G.W.:18..5KG;Certification:ISO9001/ ISO14001/RoSH/CE;
Protection:overload/over current/over voltage/short circuit;HS CODE:8504402000;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;Battery Type:Lead-acid external Battery;
Display:LED;Wave Form:pure sine wave;
Model Number:C6KRS;Product name:Rack mount ups 3kva;
Type:On-line;

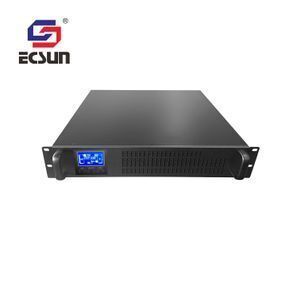

HBC Top Quality 1KVA 2KVA 3KVA 6KVA 10KVA Online Rack Mount UPS Price

Technical parameters



Features:

1. 1/2/3KVA in 2U, 6KVA in 3U

2.Double conversion

3.True Isolation technology offers the most complete power protection and highest quality power for all IT applications.

4. RS 232 management software

5.SNMP Slots for remote monitoring and control

6..load sensing, overload protection, dynamic by-pass, temperature monitoring software for preventative diagnostics.

7.LE/LCD option

8.Extended backup time capacity.

TECHNICAL SPECIFICATIONS:

Rackmount UPS 1KVA-10KVA (Long run)
C1KRSC2KRSC3KRSC6KRSC10KRS
1KVA
800W
2KVA
1600W
3KVA
2400W
6KVA
4800W
10KVA
8KW
2U2U2U3U3U
120 - 275 VAC ± 5
(45 -55) ± 0.5Hz
80VAC x (1 ± 5%) – 285VAC x (1 ±5%)
36VDC72VDC96VDC192VDC192VDC
External style
4A for long running machine
220VAC ± 1% (invert output)
46 - 54Hz (normal AC output);   50Hz ± 1% (abnormal AC output)
Sine wave THD < 3% (linear load); sine wave THD <8% (nonlinear load)
105 - 125%: convert to byass after 1 minute
0.8
3 : 1
RS232 , SNMP slot
7.7 kg9.7 kg10.3 kgs18.5 kgs20 kgs
420*440*85mm640*133*440mm640*133*440mm
560*530*180mm795*575*255mm795*575*255mm
OFFICE, IT ROOM, INDUSTRIAL ENVIRONMENT, Security and Protection System, Communication System and Computer Network System
ISO9001, ISO14001, CE, ROHS

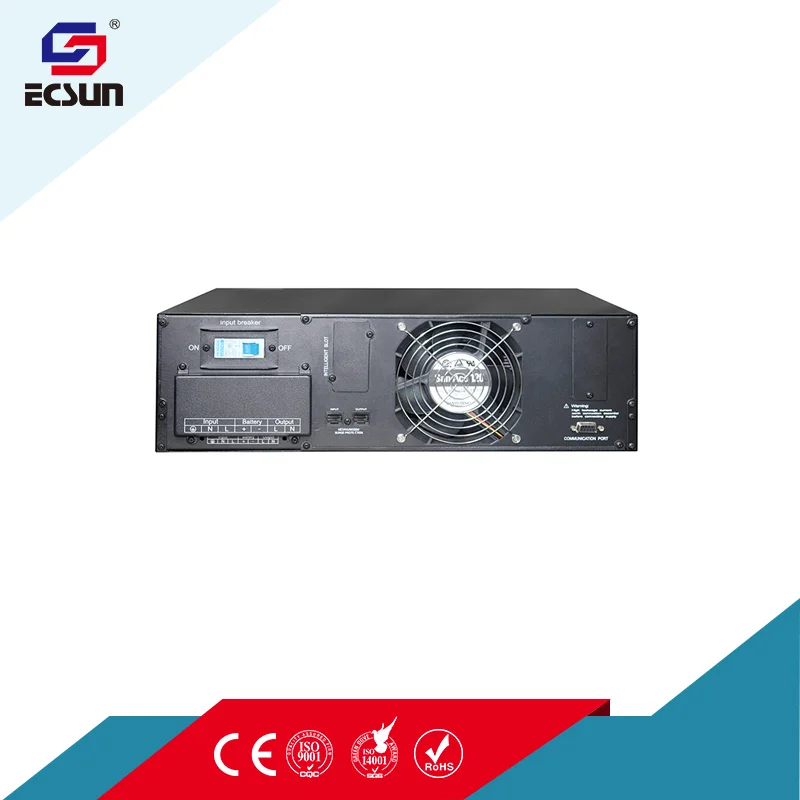

6kva-10kva picture
