Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | UPS Capacity: | 1000VA 800w; |
Output Voltage: | 110V/120V/220V/230V/240V; | Supply Ability: | 600 Piece/Pieces per Day; |
Model Number: | C1K; | Packaging Detail: | 1kva online ups uninterrupted power supply packing: 2pcs into master carton 1Master carton weight : 18.6kg 1Master carton size : 475*455*345mm (0.075CBM/carton); |
HS CODE: | 8504402000; | Weight: | Nw:10.5kg, GW:12.5kg; |
Battery type: | build in Lead-acid Battery 7ah/9ah; | Wave Form: | Pure Sine Wave 0ms Transfar time; |
Brand Name: | ECSUN/OEM/ODM; | Battery voltage: | 24VDC/36VDC; |
Output voltage: | 110V/120V/220V/230V/240V; | Input voltage range: | 115-300VAC±5; |
Warranty: | 1 Year; | Type: | On-line; |
Certification: | ISO9001, ISO14001, CE, ROHS; | Protection: | overload/overshort/discharge/charge/short circuit; |
Place of Origin: | Guangdong China (Mainland); | Product name: | 1kva online ups uninterrupted power supply; |
Application: | Networking/Education/Communication/IT Service; | Phase: | Single Phase; |
Port: | SHENZHEN, GUANGZHOU, HONGKONG; |
Specification | Single Phase In & Out | |||
Rated output capacity | 1KVA/800W(900w) | 2KVA/1600W(1800w) | 3KVA/2.4KW(2700w) | |
Rated | Rated voltage | 220VAC/110VAC | ||
AC input | Input voltage range | 115-300VAC±5 | ||
Input frequency range | (45-55)±0.5Hz | |||
bypass voltage | 80VACx(1±5%)-285VACx(1±5%) | |||
Battery Input | battery group voltage | 24VDC | 48VDC | 72VDC |
Battery Capacity & quantity | 7AH*2pcs | 7AH*4pcs | 7AH*6pcs | |
battery method | Internal | |||
backup time(half/full) | half load≥10 minutes,full load≥5minutes(standard) | |||
maximum input current when power on | <150% of rated current | |||
battery charging time | 5hours can charge to 90%(standard) depend on the capacity of external battery group(long-running) | |||
AC output | Output voltage | 220VAC±1%(invert output) | ||
Output frequency | 50±5Hz(when AC input is normal) 50Hz±1% (when ac inout is abnormal ) | |||
wave form | sine wave THD<3%( linear load) sine waveTHD<8%(Nonlinear load) | |||
output power factor | 0.8 | |||
Overload ability | 130% load lasting not less than 30s,Recovery point is 90% load | |||
Output current peak coefficient | 3:01 | |||
Transfer time between and Battery | 0ms | |||
Communication and monitoring functions | RS232(can transfer to 485,Dry node,Smart slot (can expand to SNMP,SMS and other monitoring methods) | |||
Tower | N.W(KG) | 8.5 KG | 17 KG | 22.5 KG |
G.W(KG) | 9.5 KG | 19 KG | 24.5 KG | |
Unit Size(W X H X D)mm | 355*145*225 mm | 425*190*320 mm | ||
Carton Size(W X H X D)mm | 475*455*345 mm | 525*325*460 mm |

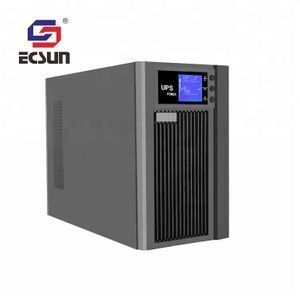

1KVA UPS
2KVA / 3KVA UPS
Inner PCB picture
Factory can OEM Plug and socket for you :

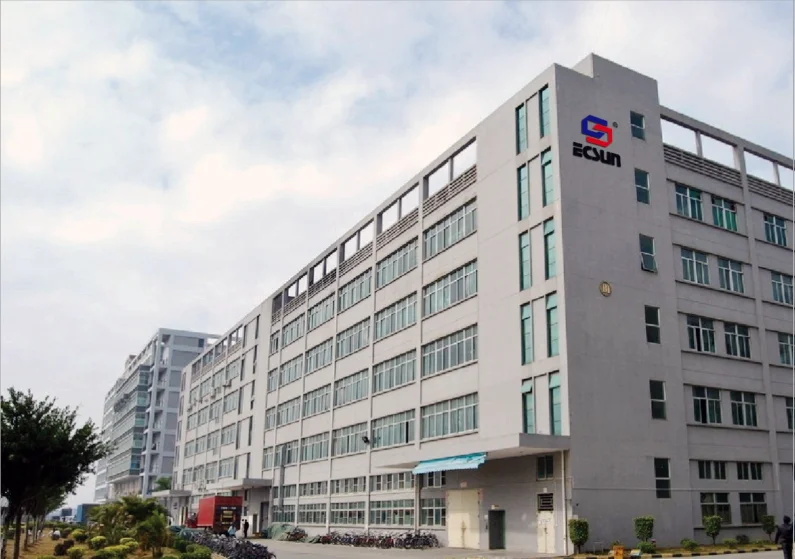

Shenzhen Zhengxin Electronics Co., Ltd. provide a One Stop Solution to the UPS Series Product including Design, R&D, Manufacturing and Sales with After Sales to our valuable customer. Currently we are working closely with our customer in OEM, ODM and JDM mode, we also looking for better opportunities to work with our potential customer on some new products and new projects. With the certification of ISO9001 and ISO14000, we believed that we are able to provide the best quality and service to our customer truthfully and we are seeing the success together.
Excellent Quality and Customer comes First is our company policy, we not only provide the suitable and quality product but also provide the high efficiency and reliable services to our customer. Customer Satisfaction is always our target and to become the first tier supplier of Power Supply Industry. We have served our customers from various industries with the trustworthy with each others.
MODEL | C1K | C2K | C3K |
QTY / CTN | 2 PCS / CTN | 1 PCS / CTN | |
Unit Size | 355*145*225mm | 425*190*320mm | |
Net weight | 8.5 KG | 17 KG | 22.5 KG |
Carton Size | 475*455*345mm | 525*325*460mm | |
Gross weight | 9.5 KG | 19 KG | 24.5 KG |
20'Container | 720PCS | 340 PCS | 340 PCS |
1kva package picture:
2kva 3kva package picture:

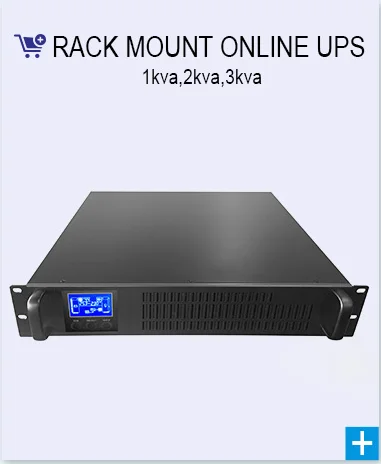

Here is the rack mountable style online 1kva-3kva you may also like,
click the following picture see detail:
