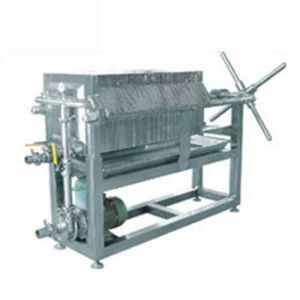

CXAS-1 Stainless Steel Plate and Frame Filter Press

CXAS-1 Stainless Steel Plate and Frame Filter Press

Introduction:                                                                                             Royal Pharm

This product is awarded Silver Medal in The Eighth China Invention Exposition

Yongquan Brand Model CXAS-1 stainless steel plate and frame filter press adopts 304 or 316L superior stainless steel materials for the manufacture.  It is the first updating and upgrading product in China.  It can only be produced by this factory with unique appearance design, novel internal structure, strong anti-corrosion performance, fine durability, long service life.  Its function will be doubled after use.  This product reaches the advanced international level.  It can replace for the imported equipments.  The sound when the machine runs is lower than 80Db(A).  It is an ideal device for GMP and CGMP Attestation.  It gains five state patents and national invention silver prize.

Characteristics:

1.High efficiency: double pipe input structure, protuberant point deign filter board highly increases the liquid working sectional area. Compared to similar machine, we can increase the filtrate efficiency doubly.

2. Very good sealing: All the parts are installed with silicone rubber, when work, there will be no leak.

3. Remove bacterial: when use middle-speed filter paper and tiny-hole filter film as filter medium, can remove bacterial well.

4. Easy to take-down: The whole machine structure is very easy to take-down, use snap ring to join, easy to clean and take-down.

5. Easy to adjust: According to different production technology of products requiments (first-filter, half extractive filter, extractive filter), you can adjust the frame, board and filter medium of the filter machine. Also you can increase or reduce the frame, board and filter medium according to the flow of the liquid.

6. Can filter high viscidity liquid.7. Meet the sanitation requirement: Use sanitation septum pressure gauge, septum ball valve, the whole machine meets the requirement of sanitation.

8. Prolong the use life of the filter materials: protuberant point deign filter board can help the filter materials (such as filter film, filter paper) not easy to break. This can prolong the use life of the filter materials well.

9. Improve the stability of the liquid capacity: protuberant point deign filter board make the liquid can flow to any direction well. This make the liquid can keep their own capability well.

10. It is very easy to clean the filter materials. This machine has automaticcircumfluence equipments. When pump stops running, open circumfluence valve, then all the sediments will come out automatically. At the same time, use clean water to flush filter materials circumfluence. Then can clean well.

Technical parameters:                                                                             Royal Pharm

Work Principle:                                                                                      Royal Pharm

CXAS-1 stainless steel plate and frame filter press adopts 304 or 316L superior stainless steel materials for the manufacture, have novel internal structure, strong anti-corrosion performance, fine durability, long service life.  The whole machine is a case and multi-layer structure. Use double pipes for input liquid, this can double the flow. The protuberant point deign filter board make the sectional area much bigger. Use silicone rubber to seal all the parts that need sealing, and make sure there is no leak. In the joint of the input pipe and pump use snap ring to join, good sealing and easy to take-down and clean. There is auto circumfluence pipe, which can exclude the impurities and rest liquid automatically.

Main Uses:                                                                                               Royal Pharm

This machine can be used for the filtration, clarify, purification and removing bacterial of liquid products. It meets GMP standard. It is suitable for medical, food, drink, petro-chemical, fine daily chemicals, paint, grease, brewing etc.

It is suitable for the filter media such as the multiple filter cloth, filter plates, filter film. It is for various accuracy and grade purification and filter crafts and technology to various matter liquids. The filter materials can be repeatedly used for many times. The cost is low.

Main Types:                                                                                            Royal Pharm

Our Workshop:                                                                                         Royal Pharm
