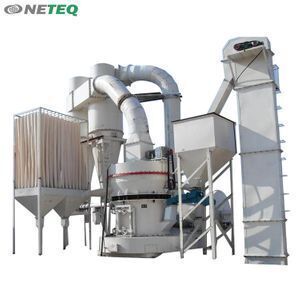

Raymond Mill Price , Raymond Grinding Mill , Raymond Roll Mine Mill Plant

Product details
Spare parts:Grinding Ring;Material:Casting Steel;
Dimension(L*W*H):3210*2253*1305;Brand Name:Xinhai;
Packaging Detail:raymond mill price: as your require;Supply Ability:300 Set/Sets per Month raymond mill price;
Warranty:1 YEAR;Product name:grinding mill;
Condition:New;Application:Ore;
Weight:1650kg;Type:grinding mill;
Capacity(t/h):3~22;Motor Type:AC Motor;
Keywords:raymond mill;Place of Origin:China;
Port:Qingdao, China;Name:Mine mill;
Applicable Industries:Energy & Mining;Payment Terms:L/C,D/A,D/P,T/T;
Certification:ISO9001;

Raymond Mill Price , Raymond Grinding Mill , Raymond Roll Mine Mill Plant

Raymond grinding mine  mill for grinding various ores and other materials, dry and wet grinding methods are widely used in mineral processing and so on.

Product Description
Raymond grinding mill price—Product Description
[Introduction]:Raymond Mill has a strong performance of becoming a complete set with a production system independently.
[Feed Size]:25-35mm
[Improvement]:All important parts of raymond mill are made of high quality steel, and all wear-resistant parts are made of high-performance wearresistant materials. The whole machine has high wear resistance and reliable operation.

Product Advantages
Raymond grinding mill price—Advantages

Dimensional structure, small floor area.
strong performance become a complete set with a production system independently.
Even fineness of finished powder and qualified screening rate of 99%, which is difficult to reach for other milling equipment.
The transmission device of the main engine adopts a sealed gear box and pulley, with smooth transmission and reliable operation.
Electrical system adopts centralized control, and the grinding workshop can realize unmanned operation with easy maintenance.

Product Structure

Raymond grinding mill price—Advantages

Grinded materials are blown into separator by blower for classification. With the function of impellers in the separator, materials without meeting the requirements of the fineness are fallen into grinding chamber for grinding again; materials meeting the requirements of the fineness are blown into cyclone powder collector with airflow through pipelines for separation and collection. Powder from discharging device is the finished product. Separated airflow is back to blower through return duct on the top of the cyclone powder collector.

Technical Parameters
Raymond grinding mill price—Technical parameters
ModelMax. Feed Size (mm)Finished Product Size (mm)Production Capacity (t/d)Rotating Speed of Main Motor (r/min)Main Motor Power (kw)Milling Ring Diameter (mm)Milling Ring Height (mm)Milling Roller Diameter (mm)Milling Roller Height (mm)Milling Roller Qty.Overall Dimension(m)
(Length × Width × Height)
MTM75<150.613-0.0331-316018.5Inner Diameter 78015026015034.3×3.5×5.1
MTM85<200.613-0.0331.2-4.615022Inner Diameter 83014027014035.3×4.1×5.2
MTM100<250.613-0.0332.1-5.613037Inner Diameter 95017031017047.1×5.9×7.9
MTM130<300.613-0.0333-9.510375Inner Diameter 128021041021057.85×8×9.7
MTM160<351.6-0.0455-2282132Inner Diameter 1600270440270612.55×5.7×8.3
About Xinhai

Laboratory:Strive for the best recovery for you with rigorous test, accurate data and detailed report

Institute:Certified grade A of mineral design institute, high quality drawing, simulate mineral plant with CAD and 3D, guarantee the construction period

Factory:We have three production factories, hundreds of suppliers.Some products reach the international leading level with own characteristic.



Contact us



If you need raymond grinding mill,please contact us.Your email address and telephone will not be shared or published!

Please fill in the ore,capacity and mail if you like to be contacted.

we are the professional machine manufacturer in China.
