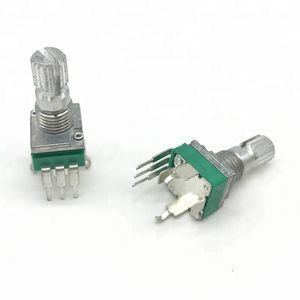

Knurled shaft 9mm b103K horizontal type rotary potentiometer

Supplier: Huizhou Hong Yuan Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Rita Yan
Price: $0.28 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Rotational torque:	10 ~200gf.cm;	Selling Units:	Multiple of 500;
Max. Operating Voltage:	AC 50V;	Model Number:	RV9312NO;
Withstand Voltage:	1 minute at AC 300V;	Rotation life:	10000cycles;
Number of click:	Center click or 5clicks or 11clicks or 41clicks;	Residual resistance:	Max :20Ω;
Slider noise:	Less than 100mV;	Gross weight per batch:	6.0 KG;
Packaging Detail:	Plastic tray+carton;	Rated Power:	0.025W~0.05W;
Insulation resistance:	Min:100MΩ at 250V DC;	Package size per batch:	30X20X15 cm;
Total rotation angle:	300±5°;	Rotation stopper strength:	5.0Kgf.cm;
Place of Origin:	Guangdong China;	Resistance Tolerance:	20% / 10%;
Operating Temperature:	-20~+70;	Total resistance:	500Ω~2M;
Type:	Rotary Potentiometer;	Technology:	Carbon Film;
Resistance:	B100K;	Brand Name:	HongYuan;

Knurled shaft 9mm b103K horizontal type rotary potentiometer

Product Description

Company Information

HongYuan Electronic Technology Co.,Ltd is located in GuangDong with convenient traffic, more than 100 outstanding productive staff. We are manufacture and specialized in development,manufacture and selling products of rotary switch,rotary Potentiometer,rotary encoder,slide switch ,toggle switch ,DC jack ,Micro switch ,Tact switch and so on . which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets .
