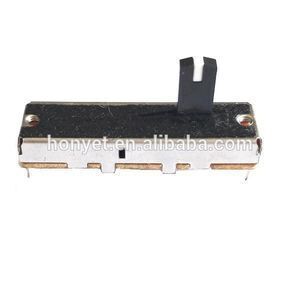

20mm with white line indicator volume control potentiometer slide potentiometer

Supplier: Huizhou Hong Yuan Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Rita Yan
Price: $0.25 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Insulation resistance:	10 MΩ min. At D.C 250 volts.;	Resistance Tolerance:	±20;
Brand Name:	HongYuan;	Resistance:	500Ω~2MΩ;
Resistance tolerance:	±20;	Operating temperature range:	-10℃~+70℃;
Rated Power:	0.025W;	Sliding noise:	100mV max;
Withstand Voltage:	A.C 300V;	Model Number:	RA2061 B10K;
Overall resistance range:	500Ω~2MΩ;	Type:	Slide Potentiometer;
Place of Origin:	Guangdong China (Mainland);	Technology:	Carbon Film;
Max. Operating Voltage:	AC 50V;	Operation torque:	20~100gf.cm;
Operating Temperature:	-30~+85℃;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Paypal;
Supply Ability:	3000 Piece/Pieces per Day;	Sliding life:	more than 10000 cycles;
Packaging Detail:	Plastic tray;	Delivery Detail:	20~25days;
For power:	10~120gf.cm;	Port:	ShenZhen;
Clicks of number:	center click or no click;

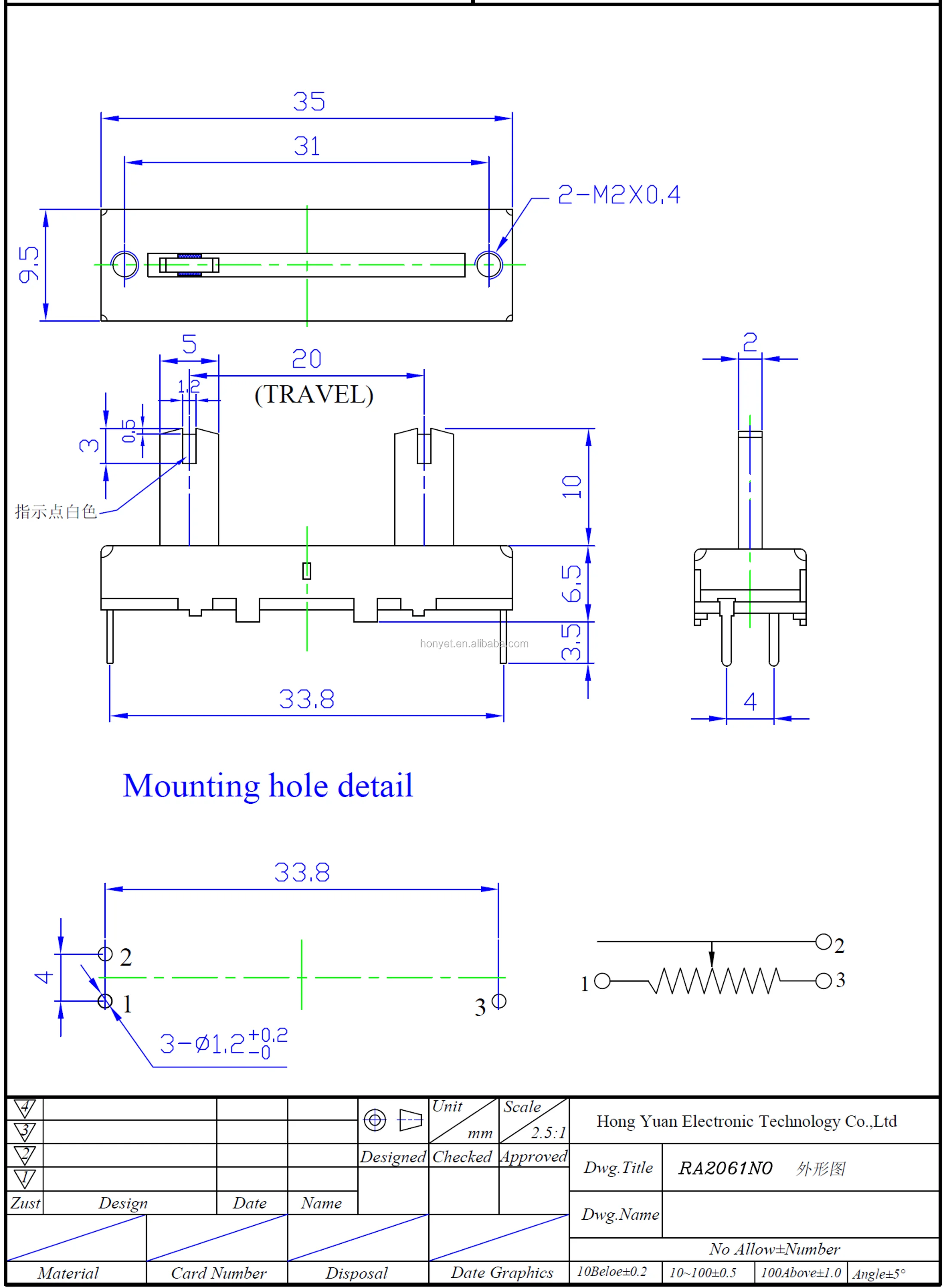

20mm with white line indicator and cover slide potentiometer

Product Description

Company Information

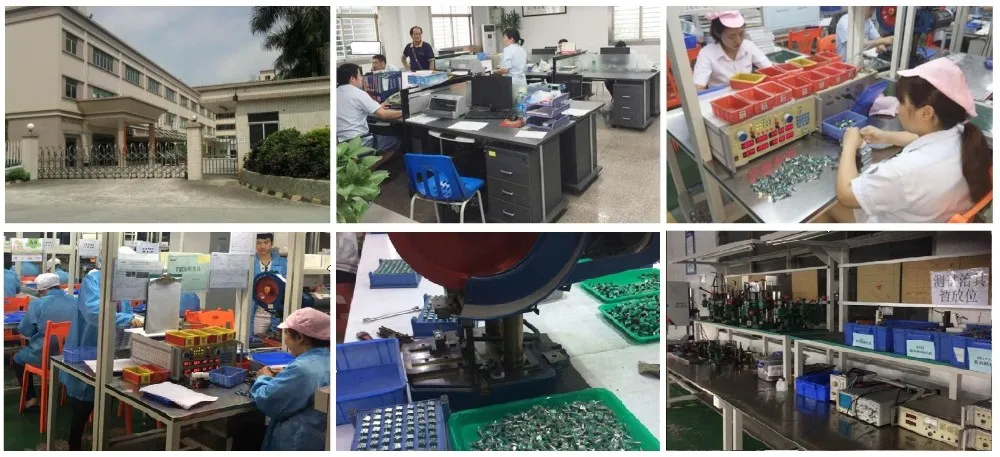

HongYuan Electronic Technology Co.,Ltd is located in GuangDong with convenient traffic, more than 100 outstanding productive staff. We are manufacture and specialized in development.manufacture and selling products of rotary switch,rotary Potentiometer,rotary encoder,slide switch ,toggle switch ,DC jack ,Micro switch ,Tact switch and so on . which are widely applied to home application,digital camera,car audio sytem,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets .
