9mm Alpha volume control potentiometer factory

Supplier: Huizhou Hong Yuan Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Rita Yan
Price: $0.26 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Total resistance:	500Ω~2M;	Type:	Rotary Potentiometer;
Total rotation angle:	300±5°;	Technology:	Carbon Film;
Place of Origin:	Guangdong China;	Brand Name:	HongYuan;
Rotation stopper strength:	5.0Kgf.cm;	Rotation life:	10000cycles;
Resistance Tolerance:	20% / 10%;	Rated Power:	0.025W~0.05W;
Number of click:	Center click or 5clicks or 11clicks or 41clicks;	Withstand Voltage:	1 minute at AC 300V;
Delivery Detail:	20~25days;	Packaging Detail:	Plastic tray+carton;
Insulation resistance:	Min:100MΩ at 250V DC;	Operating Temperature:	-20~+70;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Paypal;	Residual resistance:	Max :20Ω;
Model Number:	RV9312NA B10k;	Rotational torque:	10 ~200gf.cm;
Slider noise:	Less than 100mV;	Supply Ability:	5000 Piece/Pieces per Day;
Port:	ShenZhen;	Resistance:	B500;
Max. Operating Voltage:	AC 50V;

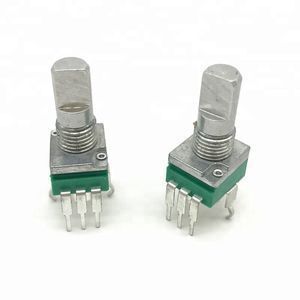

9mm Alpha rotary potentiometer

Product Description

Company Information

HongYuan Electronic Technology Co.,Ltd is located in GuangDong with convenient traffic, more than 100 outstanding productive staff. We are manufacture and specialized in development,manufacture and selling products of rotary switch,rotary Potentiometer,rotary encoder,slide switch ,toggle switch ,DC jack ,Micro switch ,Tact switch and so on . which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets .
