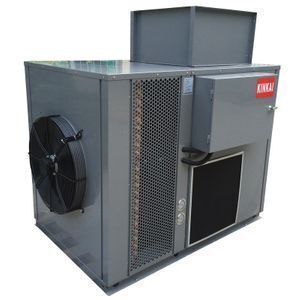

Timber Drying Machine Furniture Wood Dryer Dried Wood Heat Pump Dryer

Supplier: Guangzhou Kaineng Electric Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Tyler Page
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Place of Origin:	Guangdong, China (Mainland);
Advantage:	Multi temperature and time zone control;	Heating capacity:	42.00KW;
Cooling capacity:	32.00KW;	Function:	Drying+Dehumidity;
Certification:	CE,ISO,CCC;	Payment Terms:	L/C,T/T,Western Union;
After-sales Service Provided:	Online support;	Package Preview:	;
Weight:	480Kg;	Dimension(LWH):	212013601590mm;
Type:	HEAT PUMP DRYERS;	Noise:	60dB(A);
Packaging Detail:	Plywooden;	Voltage:	380V;
Port:	Guangzhou port;	Usage:	industrial dehydrator machine;
Warranty:	1 YEAR;	Dehydration capacity:	50L/H;
Power:	19.4KW;	Material:	304 Stainless steel;
Supply Ability:	700 Set/Sets per Month;	Item:	KINKAI Energy Saving 75% heat pump dryer;
Temperature:	10℃-75℃;	Brand Name:	KINKAI;
Application:	Wood Processing;

Product Description

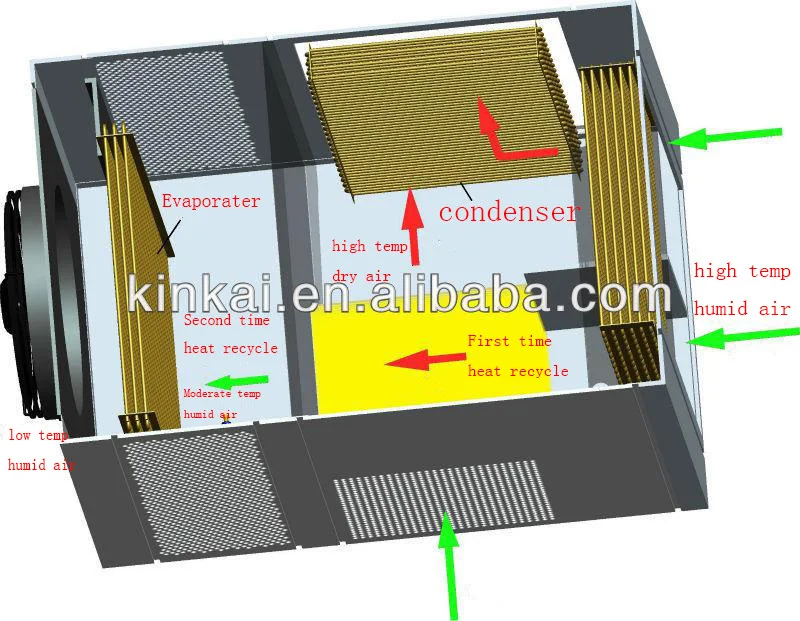

How does our fruit dryer work?

1. Take heat from the external environment (air) and pass it to the drying oven through the compressor.
2. The heat is circulated and flowed through the working of the compressor in the drying box, and the heat of the recovered material is used to realize the secondary recycling of heat.

3. After the process of hot-air dewatering or condensed water removal the moisture in materials vents, and finally realizes the continuous dry of materials

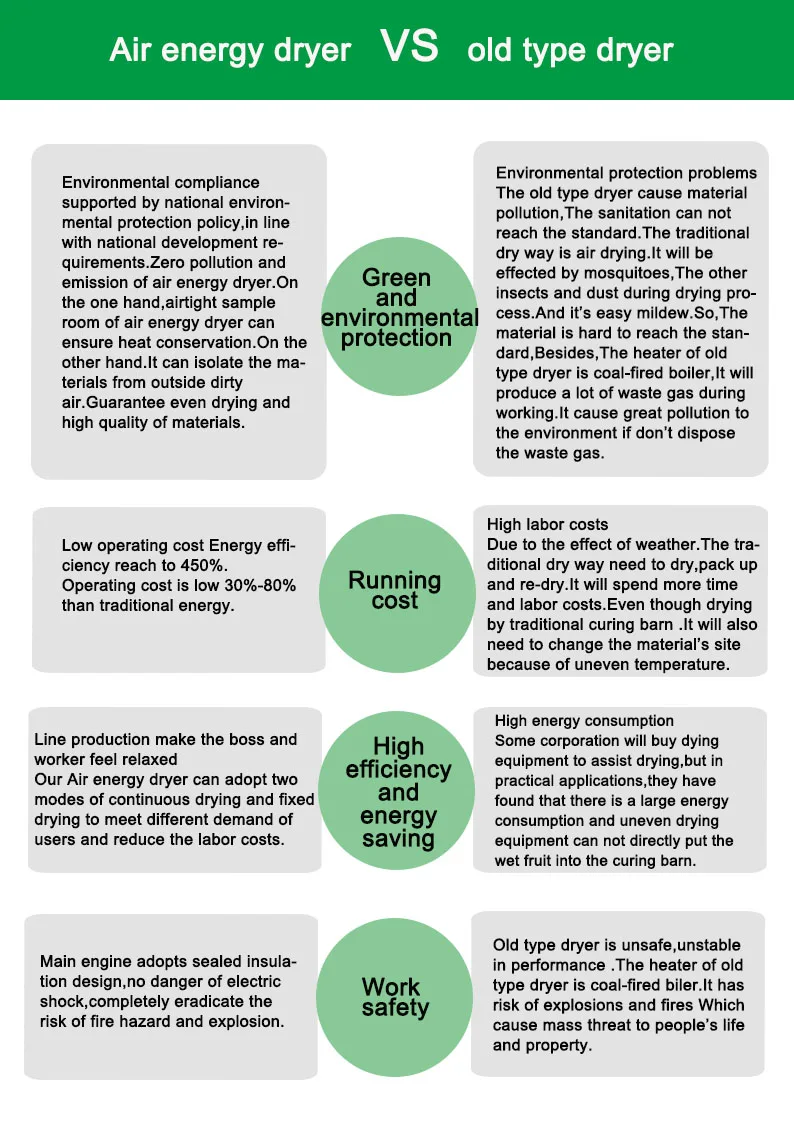

The advantages of our dryer

1. Efficient and environmentally friendly, absorb heat from the air to dry the materials, without any pollution emissions, and save about 70% of operating costs compared with traditional drying technology.
2. Long service life, our products have mature technology, stable performance, safe and reliable operation and low maintenance cost.
3. High degree of intelligence, automatic control system and computer control system for users to choose, no manual operation.

4.During drying, the material does not craze, does not distortions, non-discolouring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content.

5. Wide range of use, can be widely used in the drying of food, leather, wood, agricultural and sideline products processing industries.

Product Parameters

Single dryer + Drying chamber
Model	Unit	JK03RD	JK06RD	JK12RD
Power input	KW	5.5	9.5	19.4
Power supply	V/PH/ HZ	380V3PH,50/60HZ 220V/1PH,50/60HZ	380V/3PH,50/60HZ
Rated current	A	11A(380V),25A(220V)	19.0	39.0
Heating capacity	KW	10.5	21.0	42.0
Cooling capacity	KW	7.8	18.0	32.0
Dehumidify	L/H	12	25	50
Max temperature	℃	<75	<75	<75
Working condition	℃	0-43	0-43	0-43
Electric shock protection grade		I	I	I
Max exhause pressure	Mpa	3.0	3.0	3.0
Noise	dB(A)	75	75	75
Power consumption/h	KWH	4.8	8.5	15.0
Electric heater	KW	3.0	6.0	12.0
Blowing type	/	HORIZONTAL BLOWING 360°
Dimension of dryer	MM	1650X856X1280	1650X1056X1280	2250X1360X1590
Weight	KG	180	285	480

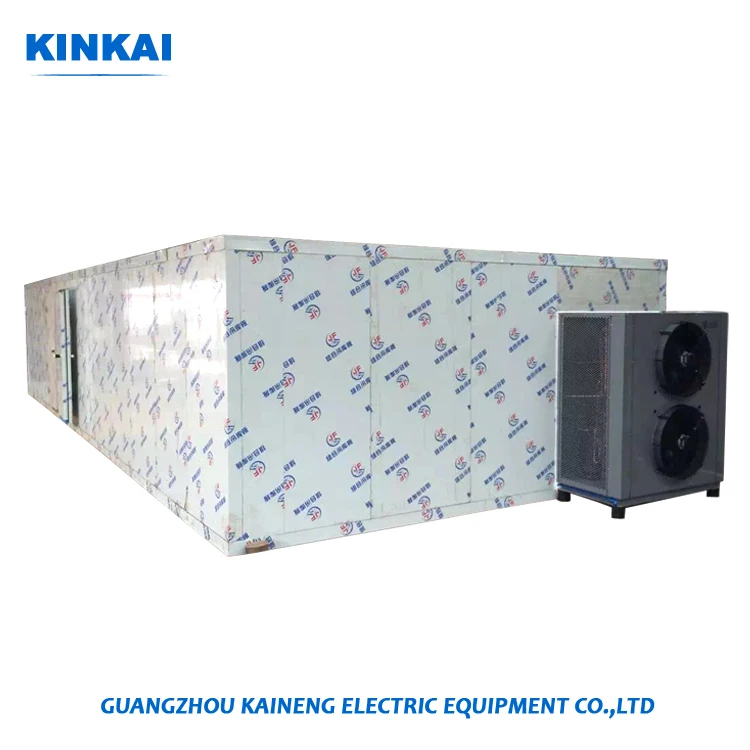

Recommend Dryer + Drying Chamber Sizes
Description	Product Capacity	Drying Chamber Sizes
One unit JK03RD dryer+drying chamber	300KG/batch	316020702200mm
One unit JK06RD dryer+drying chamber	600KG/batch	570021702200mm
One unit JK12RD dryer+drying chamber	1200KG/batch	581032302200mm
Two unit JK03RD dryer+drying chamber	800KG/batch	751020702200mm
Two unit JK06RD dryer+drying chamber	1500KG/batch	1053021702200mm
Two unit JK12RD dryer+drying chamber	3000KG/batch	1075032302200mm

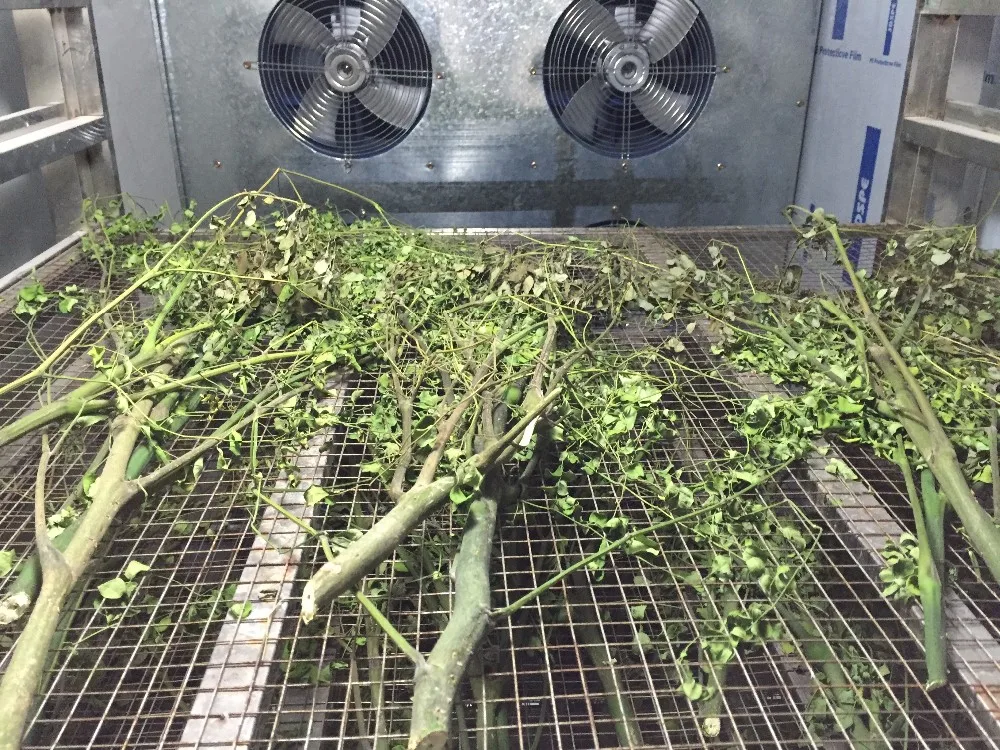

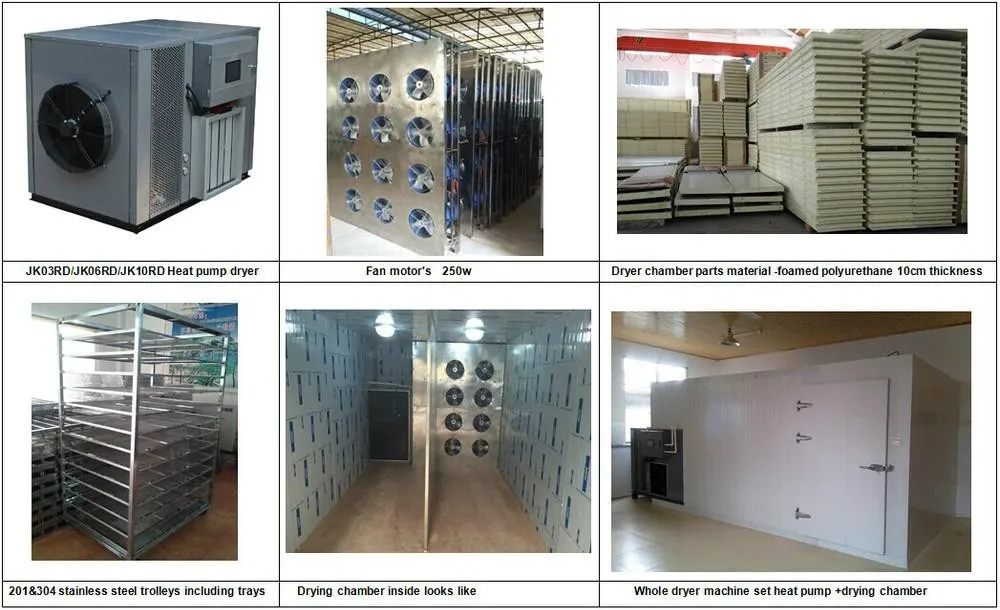

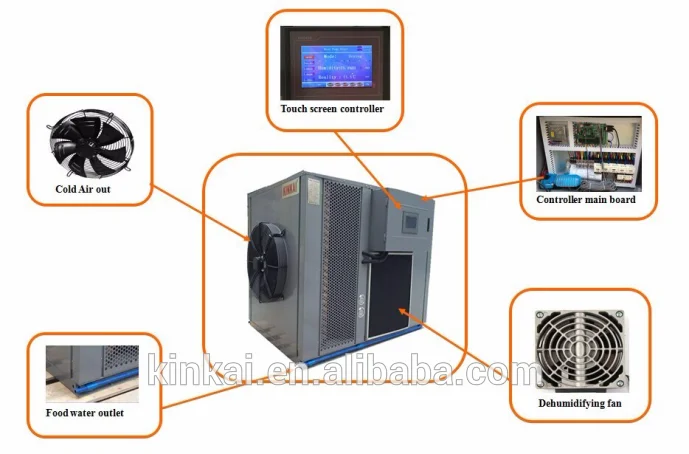

Detailed Images

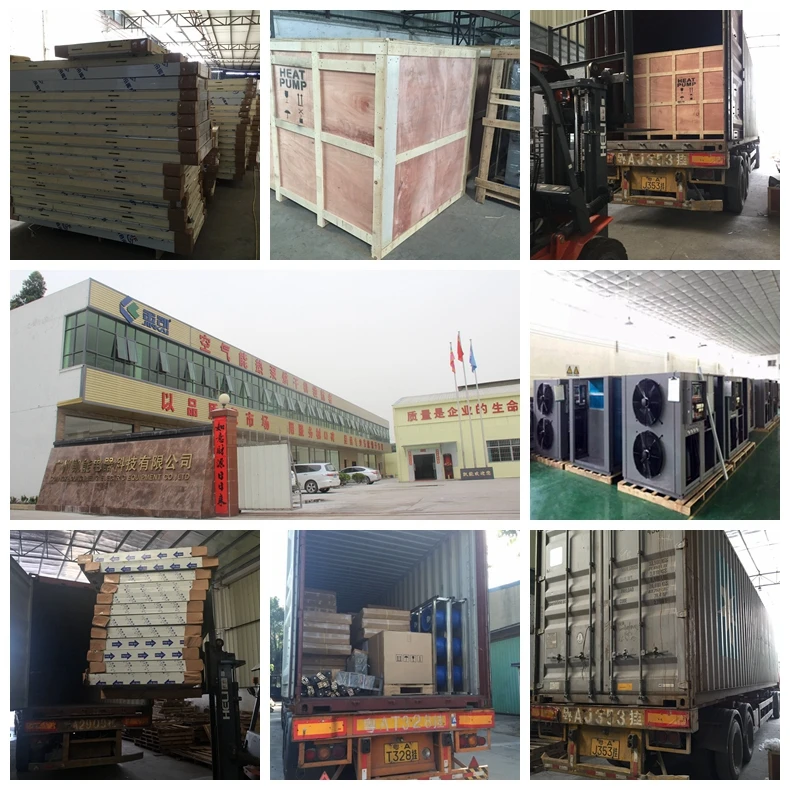

Packaging & Shipping

We will package the products tightly and entrust them to a reliable shipping company for cargo transportation.

Our Services

1) OEM service
2) We provide operating manual and video after you place order.
3) One year's warranty, and you can pay for extended warranty.
4)Spare parts and technical support at most economic prices after the warranty.

After installation,during the guarantee period,our company will be responsible for problems caused by quality of production or raw material except the damageable spare parts of heat pump caused by incorrect man-made operation.

FAQ

1.What are your main products of your company?
Answer: Heat pump dryers, heat pump(including air to water heat pumps, water to water heat pumps).

2.How about the quality of your products?
Answer:Our dryers are manufactured strictly according to national and international standards,and we take a test on each equipment before delivery.You can also use Trade Assurance by Alibaba for product quality protection,on-time shipment protection and payment protection.

3. How about the price?

Answer:We are manufacturer,and we can give you lower price than trade companies.

4.Do you provide after-sale service?

Answer:Yes.The warranty period of our machines is one year,and we have a professional after-sale service team to promptly and thoroughly solve your problems.

5.Can you test our samples?

Answer:Yes.You can send your samples to us for test and analysis.
