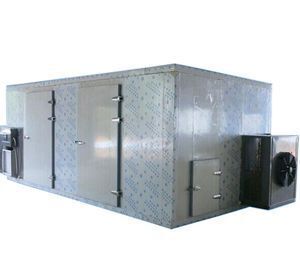

Brewery Yeast Honey Fig Vegetable And Fruit Food Tomato Fish Meat Other Drying Equipment

Product details
Material:201/304 Stainless Steel/Steel;Dehumidify capacity:25L/H;
Showroom Location:Viet Nam,India,South Africa,Ukraine,Nigeria,Australia;Packaging Detail:Plywood;
Voltage:380V;Function:Heating/Dehumidify;
Key Selling Points:Energy saving;Power:9.5KW;
Condition:New;Package Preview:;
Port:Guangzhou, Shenzhen, HongKong;Core Components:Pump,Motor,PLC;
Place of Origin:Guangdong China;Brand Name:KINKAI;
After Warranty Service:Video technical support,Online support;Local Service Location:Viet Nam,India,South Africa;
Application:Food Processing,Fruits Processing;Weight (KG):1000kg;
Item:No-pollution Food dryer machine;Certification:CE CCC ISO;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Pet Food Factory;Supply Ability:200 Set/Sets per Month;
Type:Tray Dryer;Warranty of core components:2 years;
Working condition:0-43℃;Dimension(L*W*H):1650x1056x1280MM;
Cooling capacity:18KW;After-sales Service Provided:Online support,Video technical support,Free spare parts;
Machinery Test Report:Provided;Payment Terms:L/C,T/T,Western Union,Paypal;
Control system:PLC+Touch screen;Marketing Type:Ordinary Product;
Heating capacity:21KW;Weight:285KG;
Energy saving:75%;Warranty:1 Year;
Video outgoing-inspection:Provided;

Brewery Yeast Honey Fig Vegetable And Fruit Food Tomato Fish Meat Other Drying Equipment

Product Description

The Applications of KINKAI Dryer

1. Drying herb: pseudo-ginseng, aniseed, Chinese yam, sea cucumber, honeysuckle ect.

2. Drying agriculture products: dragon fruit flower, rose, mushroom, red pepper ect.

3. Drying fruit: banana, apple , mango, date, wolfberry, lemon, olive ect.

4. Drying seafood: sea fish, shrimp, seaear, cuttlefish ect.

5. Drying tea: puer, red tea, ect.

6. Drying food: noodle, sausage, preserved pork, beancurd sticks ect.

7. Drying incense: incense, mosquito incense ect,

8. Drying wood: redwood, redwood furniture ect.





Working Princple of Heat Dryer Machine

1, Dryer evaporator of refrigerant absorb the air from outside.

2, Then compressor works that make the air temperature rise.

3, Heat exchanger change the hot air into drying chamber.

4, Final materials will be dried by the hot air circulating in drying chamber.



Technical Component
    Single dryer + Drying chamber
Model  Unit  JK03RD JK06RD JK12RD
Power input  KW 5.5 9.5 19.4
Power supply V/PH/ HZ 380V3PH,50/60HZ
220V/1PH,50/60HZ
380V/3PH,50/60HZ
Rated current A 11A(380V),25A(220V) 19.0 39.0
Heating capacity KW 10.5 21.0 42.0
Cooling capacity KW 7.8 18.0 32.0
Dehumidify L/H 12.0 25.0 50.0
Max temperature 75 75 75
Working condition 0-43 0-43 0-43
Electric shock protection grade I I I
Max.exhause pressure Mpa 3.0 3.0 3.0
Noise dB(A) 75 75 75
Power consumption KWH 4.8 8.5 15.0
Electric heater KW 3.0 6.0 12.0
Blowing type / HORIZONTAL BLOWING 360°
Dimension of dryer MM 1650x856x1280 1650x1056x1280 2250x1360x1590
Weight KG 180 285 480
Other product
 Double dryer + Drying chamber
Model Unit JK03RD(*2) JK06RD(*2) JK12RD(*2)
Power input KW 11.0 18.4 32.8
Power supply V/PH/ HZ 380V3PH,50/60HZ
220V/1PH,50/60HZ
380V/3PH,50/60HZ
Rated current A 22A(380V),50A(220V) 37.0 66.0
Heating capacity KW 21.0 42.0 84.0
Cooling capacity KW 15.6 36.0 64.0
Dehumidify L/H 24.0 50.0 100.0
Max temperature 75

75

75
Working condition 0-43 0-43 0-43
Electric shock protection grade I I I
Max exhause pressure Mpa 3.0 3.0 3.0
Noise dB(A) 75 75 75
Power consumption KWH 9.6 17.0 30.0
Electric heater KW 6.0 12.0 24.0
Blowing type / HORIZONTAL BLOWING 360°
Dimension of dryer MM 1650*856*1280 1650*1056*1280 2250*1360*1590
Weight KG 180*2 285*2 480*2
Recommend Dryer + Drying Chamber Sizes
Item Description Product Capacity Drying Chamber Sizes

1

One unit JK03RD dryer+drying chamber 300KG/batch 3160*2070*2200mm
2 One unit JK06RD dryer+drying chamber 600KG/batch 5700*2170*2200mm
3 One unit JK12RD dryer+drying chamber 1200KG/batch 5810*3230*2200mm
4 Two unit JK03RD dryer+drying chamber 800KG/batch 7510*2070*2200mm
5 Two unit JK06RD dryer+drying chamber 1500KG/batch 10530*2170*2200mm
6 Two unit JK12RD dryer+drying chamber 3000KG/batch 10750*3230*2200mm
Packaging & Shipping



Company Information

KINKAI company was founded in 2008, KINKAI company professional manufacture: heat pump dryer, water to water heat pump, air to water heat pump, swimming pool heat pump, KINKAI company has many years of manufacturing experience and talent reserves, KINKAI got more patented technologies and honor, the product has passed the international quality management system ISO9001:2000 certification, production license, CCC, CE certification and many other certification authority of the State quality and technical Supervision departments identified and quality inspection, and was included in the national "focus on promoting national scientific and technological achievements" and "national key new product plan", was designated " high efficiency heat pump water heating equipment" technical support unit of the Ministry of Science. Products sold around the world has won very good feedback from the European and American customers, high customer satisfaction, KINKAI products widely used in various industries drying, heating swimming pool, house cooling, heating and domestic hot water etc.

Certifications

Our Services



A. Payment Service

1, T/T

2, L/C (for container order only)
3, Western Union, (for sample order & parts)

B. Technical service

1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty

 If you are interested in our products, pls feel free to contact us.
