Showroom Location: | None; | Application: | Food Processing; |
Dimension(L*W*H): | 1650x1056x1280MM; | Condition: | New; |
Warranty: | 1 Year; | Cooling capacity: | 18KW; |
Function: | Heating/Dehumidify; | After Warranty Service: | Online support; |
Payment Terms: | L/C,T/T,Western Union; | Working condition: | 0-43℃; |
Power: | 9.5KW; | Certification: | CE CCC ISO; |
Heating capacity: | 21KW; | Package Preview: | ; |
Type: | DEHUMidifier; | Dehumidify capacity: | 25L/H; |
Item: | No-pollution Food dryer machine; | Voltage: | 380V; |
Material: | 201/304 Stainless Steel/Steel; | Local Service Location: | None; |
Supply Ability: | 700 Set/Sets per Month; | Control system: | PLC+Touch screen; |
After-sales Service Provided: | Online support; | Brand Name: | KINKAI; |
Energy saving: | 75%; | Port: | Guangzhou,Shenzhen,HongKONG; |
Place of Origin: | Guangdong China; | Applicable Industries: | Machinery Repair Shops,Food & Beverage Factory,Farms; |
Key Selling Points: | Energy saving; | Packaging Detail: | Plywood; |
Weight: | 285KG; |
The Applications of KINKAI Dryer
1. Drying herb: pseudo-ginseng, aniseed, Chinese yam, sea cucumber, honeysuckle ect.
2. Drying agriculture products: dragon fruit flower, rose, mushroom, red pepper ect.
3. Drying fruit: banana, apple , mango, date, wolfberry, lemon, olive ect.
4. Drying seafood: sea fish, shrimp, seaear, cuttlefish ect.
5. Drying tea: puer, red tea, ect.
6. Drying food: noodle, sausage, preserved pork, beancurd sticks ect.
7. Drying incense: incense, mosquito incense ect,
8. Drying wood: redwood, redwood furniture ect.

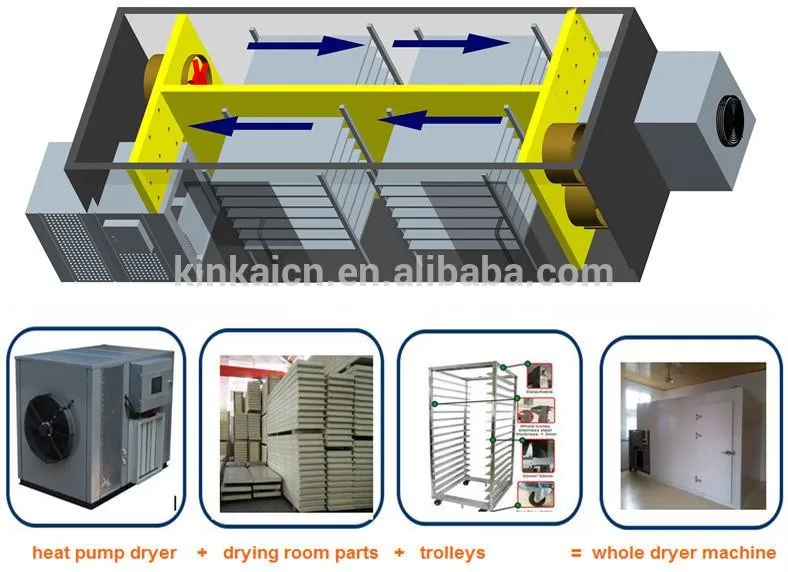

Working Princple of Heat Dryer Machine
1, Dryer evaporator of refrigerant absorb the air from outside.
2, Then compressor works that make the air temperature rise.
3, Heat exchanger change the hot air into drying chamber.
4, Final materials will be dried by the hot air circulating in drying chamber.
Single dryer + Drying chamber | ||||
Model | Unit | JK03RD | JK06RD | JK12RD |
Power input | KW | 5.5 | 9.5 | 19.4 |
Power supply | V/PH/ HZ | 380V3PH,50/60HZ 220V/1PH,50/60HZ | 380V/3PH,50/60HZ | |
Rated current | A | 11A(380V),25A(220V) | 19.0 | 39.0 |
Heating capacity | KW | 10.5 | 21.0 | 42.0 |
Cooling capacity | KW | 7.8 | 18.0 | 32.0 |
Dehumidify | L/H | 12.0 | 25.0 | 50.0 |
Max temperature | ℃ | 75 | 75 | 75 |
Working condition | ℃ | 0-43 | 0-43 | 0-43 |
Electric shock protection grade | I | I | I | |
Max.exhause pressure | Mpa | 3.0 | 3.0 | 3.0 |
Noise | dB(A) | 75 | 75 | 75 |
Power consumption | KWH | 4.8 | 8.5 | 15.0 |
Electric heater | KW | 3.0 | 6.0 | 12.0 |
Blowing type | / | HORIZONTAL BLOWING 360° | ||
Dimension of dryer | MM | 1650x856x1280 | 1650x1056x1280 | 2250x1360x1590 |
Weight | KG | 180 | 285 | 480 |
Double dryer + Drying chamber | ||||
Model | Unit | JK03RD(*2) | JK06RD(*2) | JK12RD(*2) |
Power input | KW | 11.0 | 18.4 | 32.8 |
Power supply | V/PH/ HZ | 380V3PH,50/60HZ 220V/1PH,50/60HZ | 380V/3PH,50/60HZ | |
Rated current | A | 22A(380V),50A(220V) | 37.0 | 66.0 |
Heating capacity | KW | 21.0 | 42.0 | 84.0 |
Cooling capacity | KW | 15.6 | 36.0 | 64.0 |
Dehumidify | L/H | 24.0 | 50.0 | 100.0 |
Max temperature | ℃ | 75 | 75 | 75 |
Working condition | ℃ | 0-43 | 0-43 | 0-43 |
Electric shock protection grade | I | I | I | |
Max exhause pressure | Mpa | 3.0 | 3.0 | 3.0 |
Noise | dB(A) | 75 | 75 | 75 |
Power consumption | KWH | 9.6 | 17.0 | 30.0 |
Electric heater | KW | 6.0 | 12.0 | 24.0 |
Blowing type | / | HORIZONTAL BLOWING 360° | ||
Dimension of dryer | MM | 1650*856*1280 | 1650*1056*1280 | 2250*1360*1590 |
Weight | KG | 180*2 | 285*2 | 480*2 |
Recommend Dryer + Drying Chamber Sizes | |||
Item | Description | Product Capacity | Drying Chamber Sizes |
1 | One unit JK03RD dryer+drying chamber | 300KG/batch | 3160*2070*2200mm |
2 | One unit JK06RD dryer+drying chamber | 600KG/batch | 5700*2170*2200mm |
3 | One unit JK12RD dryer+drying chamber | 1200KG/batch | 5810*3230*2200mm |
4 | Two unit JK03RD dryer+drying chamber | 800KG/batch | 7510*2070*2200mm |
5 | Two unit JK06RD dryer+drying chamber | 1500KG/batch | 10530*2170*2200mm |
6 | Two unit JK12RD dryer+drying chamber | 3000KG/batch | 10750*3230*2200mm |
A. Payment Service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year’s warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty
If you are interested in our products, pls feel free to contact us.
