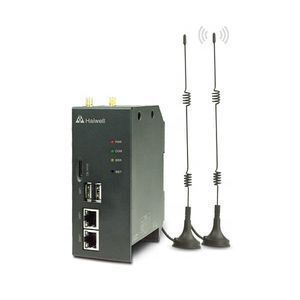

Haiwell CBOX Cloud Box to communicate with MQTT server ERP system MES system

Supplier: Xiamen Haiwell Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Haiwell PLC
Price: $110.00 /set
Min. Order: 1 set

Click here to contact

Product details

SIM card:	1*SIM card;	Brand Name:	Haiwell;
Supply Ability:	3000.0 Piece/Pieces per Month;	Place of Origin:	Chian;
Payment Terms:	T/T,Western Union,MoneyGram;	USB interface:	2*USB 2.0;
Model Number:	CBOX;	Ethernet:	Ethernet port: 2*10/100 Base-Tx;
Memory:	256M EMMC Flash,256M DDR3 RAM;;	Extended SD card:	1*SD card;
WIFI function:	Support;	Packaging Detail:	Standard Haiwell PLC new original packing, cartons packed;

Haiwell CBOX Cloud Box to communicate with MQTT server ERP system MES system

Model	Configuration		Size (mm) width x height x depth
CBOX	A7 696MHZ, 512M Flash, 256M RAM, 2RJ45 (10/100MB), RS232+RS485, 2USB, with wifi, support SD card		50x120x85

Cloud box CBOX features:

256M Flash+256M DDR3, small size, multi-function, cost-effective
Built-in Haiwell cloud engine, integrated Haiwell cloud service, support cloud/mobile access control
Integrated HMI function, it can monitor the display screen directly by mobile phone /PC instead of HMI screen, which is flexible and convenient to control
Support A/B Key security mechanism, multi-unit network, database, multi-screen interaction, cloud camera remote monitoring and other functions
Support Haiwell Could SCADA cloud configuration software
Connect to Haiwei Cloud via Ethernet/WIFI , viewing and monitoring equipment remotely in real-time
Two Ethernet interfaces, support star, tree, and bus Ethernet networking

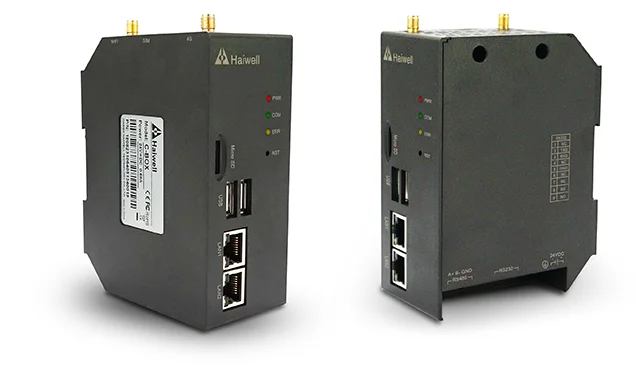

Standard 2xRJ45 interface, 2xUSB, 2x serial port, WIFI, SD card, SIM card, rail mounting
Support MQTT protocol, support access to the database server, easily achieve data collection and reporting, connects to ERP/MES and other systems.

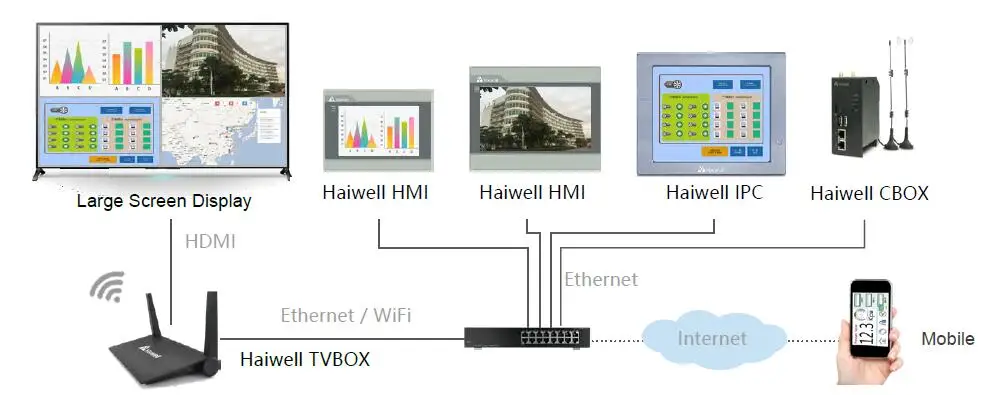

Through TVBOX, the pictures of multiple devices can be combined and shown on a large screen and monitored simultaneously in the form of 4/6/9 squares. Haiwell HMI, cbox, IPC and other equipments support this function.

Factory

Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.

At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.

The products are of our own manufacture. We have advanced production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.

Warranty & Shipment

Warranty

1,All Haiwell PLC products support 24 months warranty.
2,Shipment within 5 workdays after payment received.

Shipment

1,Fedex/DHL/UPS/TNT/EMS for sample and mass production,door to door.
2,By air and by sea for mass production of FCL and LCL,both sea port and airport are available.
3,Shipping method is negotiable,customer can designate freight forwarders.
