Haiwell Card type PLC controller Motion control PLC AN series logic thin controller PLC MPU

Product details
Execution Speed:0.05μs/basic instruction;Program capacity:48K;
Remote I/O module:Supported;Programming Language:LD, FBD, IL;
Place of Origin:Fujian China (Mainland);Protocol:Modbus, Haiwellbus & freedom protocol;
Model Number:AN Motion Control series;Payment Terms:T/T,Western Union,MoneyGram;
Power Supply:24V DC;PLC Dimension:40*95*65mm;
Port:Xiamen;COM Port:TCP+RS485;
Packaging Detail:Standard Haiwell PLC new original packing, cartons packed;Brand Name:Haiwell;
Supply Ability:3000 Piece/Pieces per Month mini PLC controller;Programming software:HaiwellHappy;
PLC I/O point:16 points;

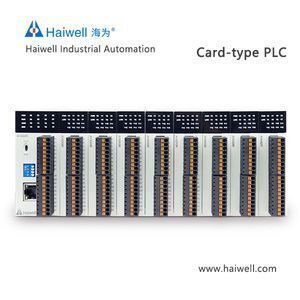

Haiwell Card type PLC controller Motion control PLC AN series logic thin controller PLC MPU



 Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.



It is the first PLC (Programmable logic controller) designed with 100% built-in simulator from China.

Very easy to study and use!





PLC Model Spec.



Haiwell AN series - Motion Control Card-type PLC MPU list



ModelSpecificationDimension
WxHxD(mm)
24VDCDI DO AI AOPulse InputPulse OutputCOM PortExp.
AN16S0T88  Transistor NPN  4 Channels A/B phase
8points 200K
4 Channels A/B phase
8points 200K
TCP+485 1540×95×65
AN16S0P88  Transistor PNP  4 Channels A/B phase
8points 200K
4 Channels A/B phase
8points 200K
TCP+48515










Programming Software

  HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users.  All neccessary instructions are highly intergrated,  Very easy to study and use.



It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.



Runing with Windows 98, Windows 2000, Windows XP and  newer versions.

Totally free PLC software with all features.





PLC advantages

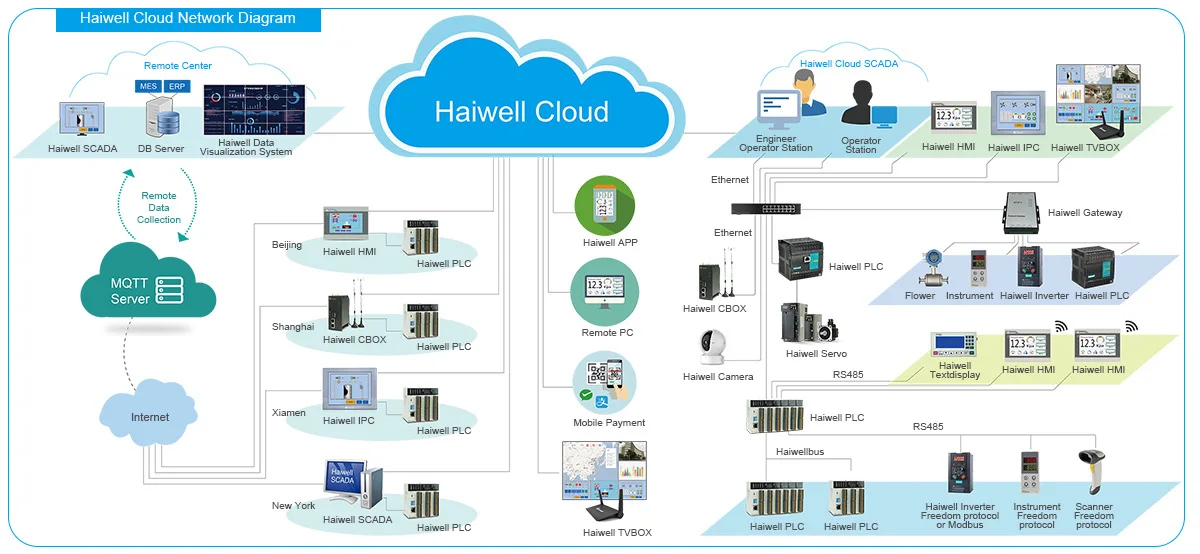

Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipments from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades, monitoring and diagnosis etc. 9 main features of Haiwell Cloud: Cloud Network, Cloud Access, Cloud Video, Cloud Alarm, Cloud Engine, Cloud Management, Cloud Security, Cloud Translate, Cloud Map.

Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL, which ensures the stable and safe data transfer.

It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
It covers a series of products such as Haiwell Cloud website, Cloud SCADA, Cloud HMI and Cloud APP. You can login to the Cloud platform via http://cloud.haiwell.com or Haiwell Cloud APP.


Factory

Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.











Warranty & Shipment

Warranty

1,All Haiwell PLC products support 24 months warranty.
2,Shipment within 5 workdays after payment received.
