China manufacturers Stone vibrating feeder for sale

Supplier: Henan Chunyue Import & Export Trading Co., Ltd.
Region: Henan, China
Contact: Ms ChunYue CY
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Yellow,red, black;	Weight:	based on model;
Keyword:	feeder;	Application:	mine, construction;
Power Type:	Electric;	Dimension(LWH):	based on model;
Place of Origin:	China;	Port:	Qingdao, Tianjin, Shanghai, Ningbo,etc;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	30 Set/Sets per Month;
After-sale Service:	Service Machinery Overseas;	Warranty:	12month;
Capacity(t/h):	80-550t/h;	Brand Name:	CHUNYUE;
Packaging Detail:	China manufacturers Stone vibrating feeder for sale 1. Standard parts packed in the wooden cases 2.Big parts packed by plastic membrane. 3.The whole machine is loaded in the container;	Power(W):	7.5-22KW;
Condition:	New;	Name:	feeder;
Certification:	CE ISO;	Product name:	vibrating feeder;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

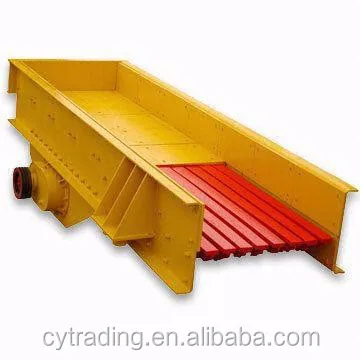

China manufacturers Stone vibrating feeder for sale

Product Description

The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The vibrating feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.

Working Principles

There are two eccentric shaft rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When material are fed into the vibrating feeder, they may be thrown up and move like para curve, then fall down.The material will move forward on the slope surface of the feeder.

Features

1. Smooth vibration,

2. reliable operation, easy adjustment,

3. long service life, low noise,

4. low power consumption,

5. simple structure, easy to install,

6. light weight, small volume,

7. simple maintenance.

technical parameter

To meet your requirements more exactly and effeciently,kindly please provide the following information when you are sending us the inquiry:

1>What is raw material are you going to crush ?

2>What is the size of the raw material,and the size of the finnal products ?

3>What is the capacity do you want to reach

Model	Max input size (mm)	handingcapacity (t/h)	motor power (KW)	weight (t)	Size of Funnel (mm)
ZSW-320×90	≤500	80-120	7.5	3.2	3260×1620×1280
ZSW-360×110	≤500	100-160	11	4.3	3700×1800×1200
ZSW-380×96	≤500	100-160	11	4.2	3880×1690×1350
ZSW-420×110	≤580	130-260	15	4.8	4280×1850×1400
ZSW-490×96	≤500	150-240	15	5.0	4960×1680×1370
ZSW-490×110	≤580	200-300	15	6.7	4960×1850×1420
