application: | grinding ore for laboratory test; | output size: | 100-250mesh; |
Warranty: | 12 Months; | Dimension(L*W*H): | 1700X1200X1100; |
Video outgoing-inspection: | Provided; | max feeding size: | 5mm; |
Color: | Blue; | Condition: | New; |
Supply Ability: | 3 Set/Sets per Month; | Port: | Qingdao tianjin; |
Weight: | 800kg to 1600kg; | Installation: | Under Technical Guidance; |
Warranty of core components: | 1 Year; | Capacity(t/h): | 200-800kg/h; |
After-sales Service Provided: | Engineers available to service machinery overseas; | capacity: | small; |
Packaging Detail: | Nude package inside container; | Applicable Industries: | Energy & Mining; |
Motor Type: | AC Motor; | Type: | Ball Mill; |
Marketing Type: | New Product 2020; | Local Service Location: | Malaysia; |
drive: | motor; | Place of Origin: | Henan China; |
Certification: | ISO,CE; | Machinery Test Report: | Provided; |
Brand Name: | CYM; | Core Components: | Motor; |
Payment Terms: | L/C,T/T,Western Union; | Showroom Location: | Sri Lanka; |
machine machine: | laboratory ball mill; |

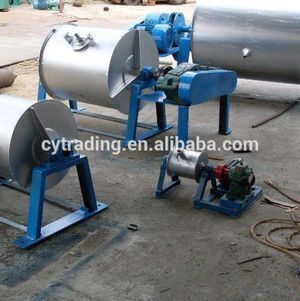

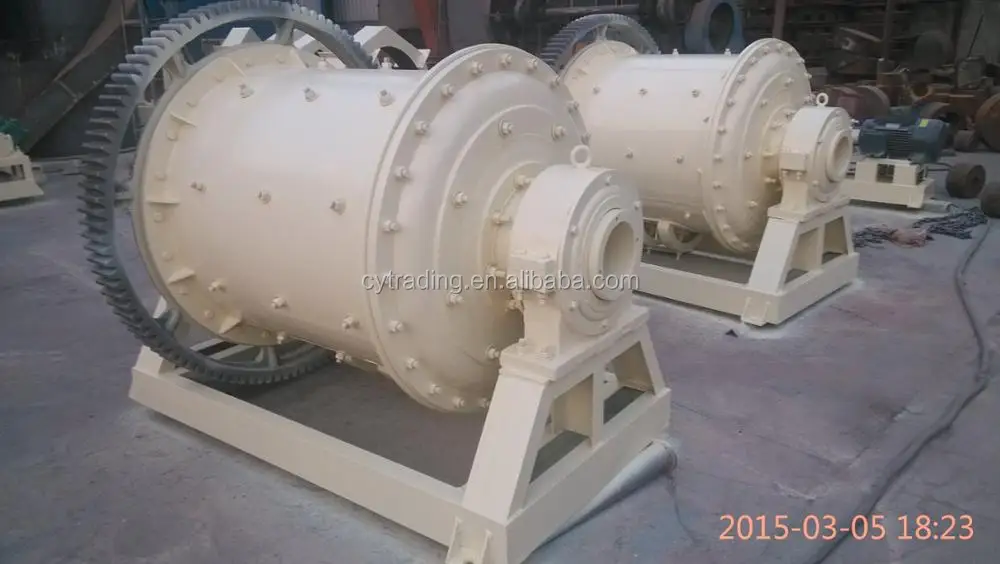

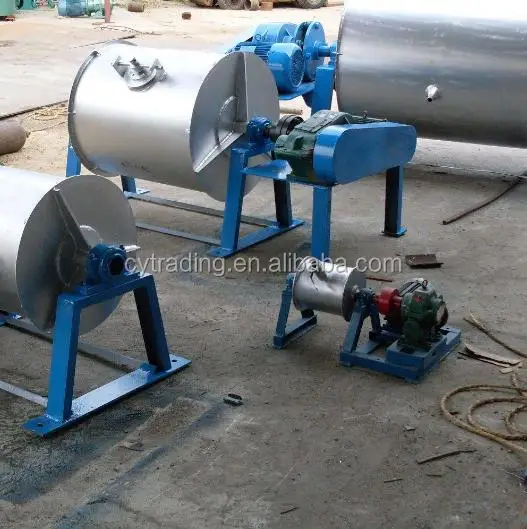

China made mine mill laboratory ball mill for mineral owers
Product show:
Chunyue supply various models of lab ball mill, our lab ball mill is mainly applied to grind kinds of ores, chemicals, construction materials. Our lab ball mill is desgined to meet the laboratory test for mining owners before they start a big production line. Welcome to contact us to get proposal!
Pls confirm us following questions when you inquiry lab ball mill:
1 what material you want to grind?
2 how many kg per hour you will feed?
3 what output size in mm?
4 would you like a continuous grinding machine or batching grinding
You can choose various size, we are able to produce:
Model |
Rotary speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity (t/h) |
Motor power(kw) |
Weight(t) |
Ø900*1800 |
36-38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
Ø1830*3000 |
25.4 |
11 |
<=25 |
0.074-0.4 |
4-10 |
130 |
28 |
Ø1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
Ø2100*7000 |
23.7 |
26 |
<=25 |
0.074-04 |
8-48 |
280 |
50 |
Ø2200*4500 |
21.5 |
27 |
<=25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
Ø2200*7500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-30 |
380 |
56 |
Ø2400*3000 |
21 |
23 |
<=25 |
0.074-0.4 |
7-50 |
245 |
54 |
